TECHNICAL SPECIFICATIONS: MSI Z890 Gaming Plus WiFi ATX DDR5 Motherboard
Model
Z890 Gaming Plus WiFi
Chipset
Intel Z890
CPU Socket
LGA 1851
CPU Support
Intel Core Ultra Processors Series 2
Memory Support
4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 9200+ OC MHz
Storage
1 x M.2 PCIe 5.0 x 4 slot
3 x M.2 PCIe 4.0 x 4 slot
4 x SATA 6Gb
USB Ports On Board
1 x USB Thunderbolt 4 40Gbps Type-C Port
1 x USB 10Gbps Type-C Port
1 x USB 10Gbps Type-A Port
2 x USB 5Gbps Type-A Port
4 x USB 2.0 Type-A Port
LAN
1 x Realtek killer E5000 5Gbps LAN
Audio
Realtek ALC897 Codec
7.1 Channel High Definition Audio

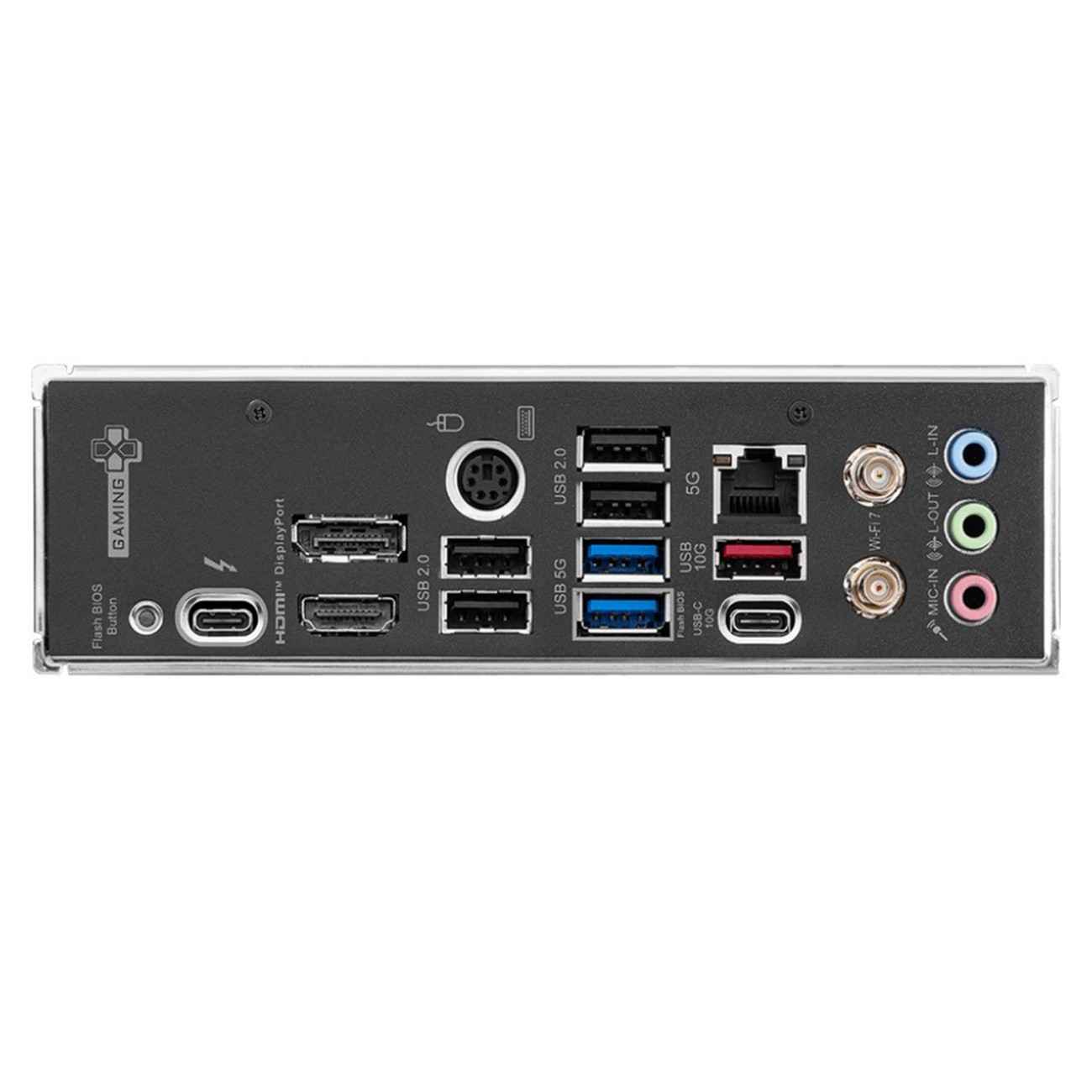

Back Panel Connectors
1 x HDMI 2.1 Port
1 x DisplayPort
1 x USB Thunderbolt 4 40Gbps Type-C Port
1 x USB 10Gbps Type-C Port
1 x USB 10Gbps Type-A Port
2 x USB 5Gbps Type-A Port
4 x USB 2.0 Type-A Port
1 x PS/2 Keybord/Mouse Port
1 x RJ-45 LAN Port
2 x Wi-Fi / Bluetooth Connectors
1 x Flash BIOS Button
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connector
1 x Thunderbolt5 card connector(JTBT5, support RTD3)
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
5 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Built-in Bluetooth
Bluetooth 5.4
Built-in WiFi
WiFi 7
Lighting
4 x EZ Debug LED
OS Support
Windows 11 64-bit
Additional Information: MSI Z890 Gaming Plus WiFi ATX DDR5 Motherboard
Product Type
Motherboards
Brand
MSI
CPU Platform
INTEL
CPU Socket
LGA1851
Processor Generation
2ND
Processor Series
Intel Ultra Series
FORM FACTOR
ATX
MEMORY TYPE
DDR5
Motherboard Chipset
Intel Z890
MAXIMUM MEMORY
256 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
₹55,499Original price was: ₹55,499.₹27,499Current price is: ₹27,499.
You Save: ₹28000.00 (50%)
Out of Stock
