TECHNICAL SPECIFICATIONS: MSI Z790 GAMING PRO WIFI DDR5 ATX Motherboard
Model
Z790 GAMING PRO WIFI
Chipset
INTEL Z790
CPU Socket
LGA 1700
CPU Support
Intel Core 14th/ 13th/ 12th Gen Processors
Intel Pentium Gold and Celeron Processors
Memory Support
4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7200 mhz+(OC)
Storage
3 x M.2 Gen 4 x4 64Gbps slots
4 x SATA 6Gbps ports
USB ports on Board
4 x USB 2.0
8 x USB 3.2 Gen1 Type A
3 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C
1 x USB 3.2 Gen2x2 Type C
LAN
Realtek RTL8125BG 2.5Gbps + RTL8111H 1Gbps LAN
Audio
8-Channel (7.1) HD Audio with Audio Boost

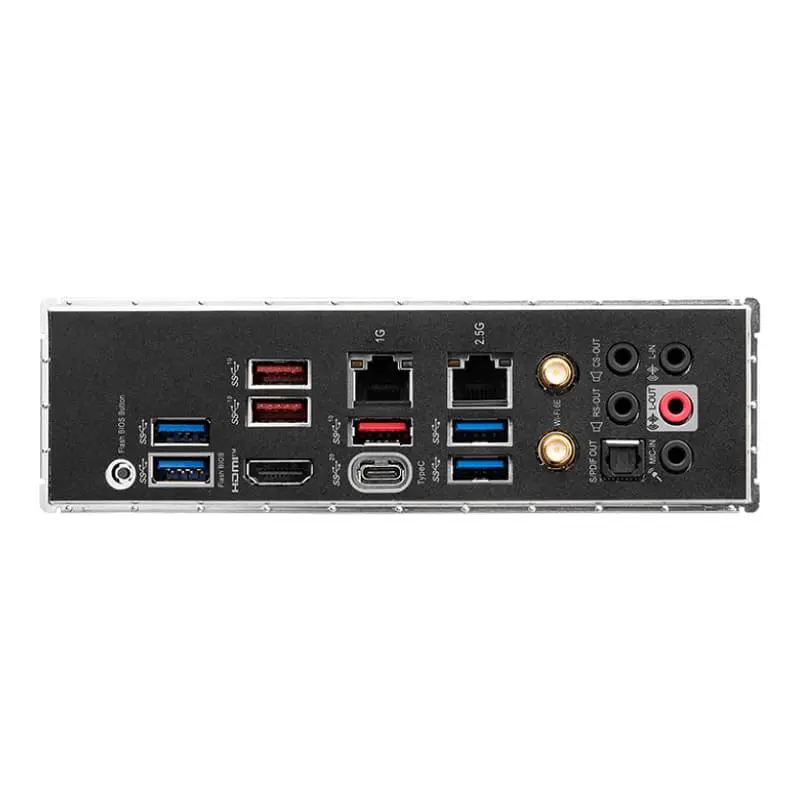

Back Panel Connectors
4 x USB 3.2 Gen 1 5Gbps Type-A
3 x USB 3.2 Gen 2 10Gbps Type-A
1 x 1G LAN
1 x 2.5G LAN Port
2 x Wi-Fi / Bluetooth Antenna
5 x HD Audio Connectors
1 x Flash BIOS Button
1 x HDMI 1.4 Port
1 x USB 3.2 Gen 2×2 20Gbps Type-C
1 x Optical S/PDIF OUT
Expansion Slot
3 x PCIe 4.0 x16 slots
2 x PCIe 3.0 x1 slots
Built-in Bluetooth
Yes, V5.3
Built-in Wifi
Yes, Wi-Fi 6E
Lighting
NA
OS Support
Windows 11 64-bit, Windows 10 64-bit
Specification: MSI Z790 GAMING PRO WIFI DDR5 ATX Motherboard
