TECHNICAL SPECIFICATIONS: MSI Pro H610M-C EX Micro ATX Motherboard
Model
Pro H610M-C EX
Chipset
Intel H610 Chipset
CPU Socket
LGA1700
CPU Support
Intel Core 10th Gen i7 / i5 / i3 Processors
Intel Pentium processor and Celeron Processors
Memory Support
2 x DDR5, Maximum Memory Capacity 96GB, Max Memory Support 5600 MHz
Storage
1 x M.2 PCIe 3.0 x 4 slot
4 x SATA 6Gb/s ports
USB Ports On Board
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
LAN
1 x Realtek RTL8111H 1Gbps LAN Port
Audio
Realtek ALC897 Codec 7.1 Channel HD Audio

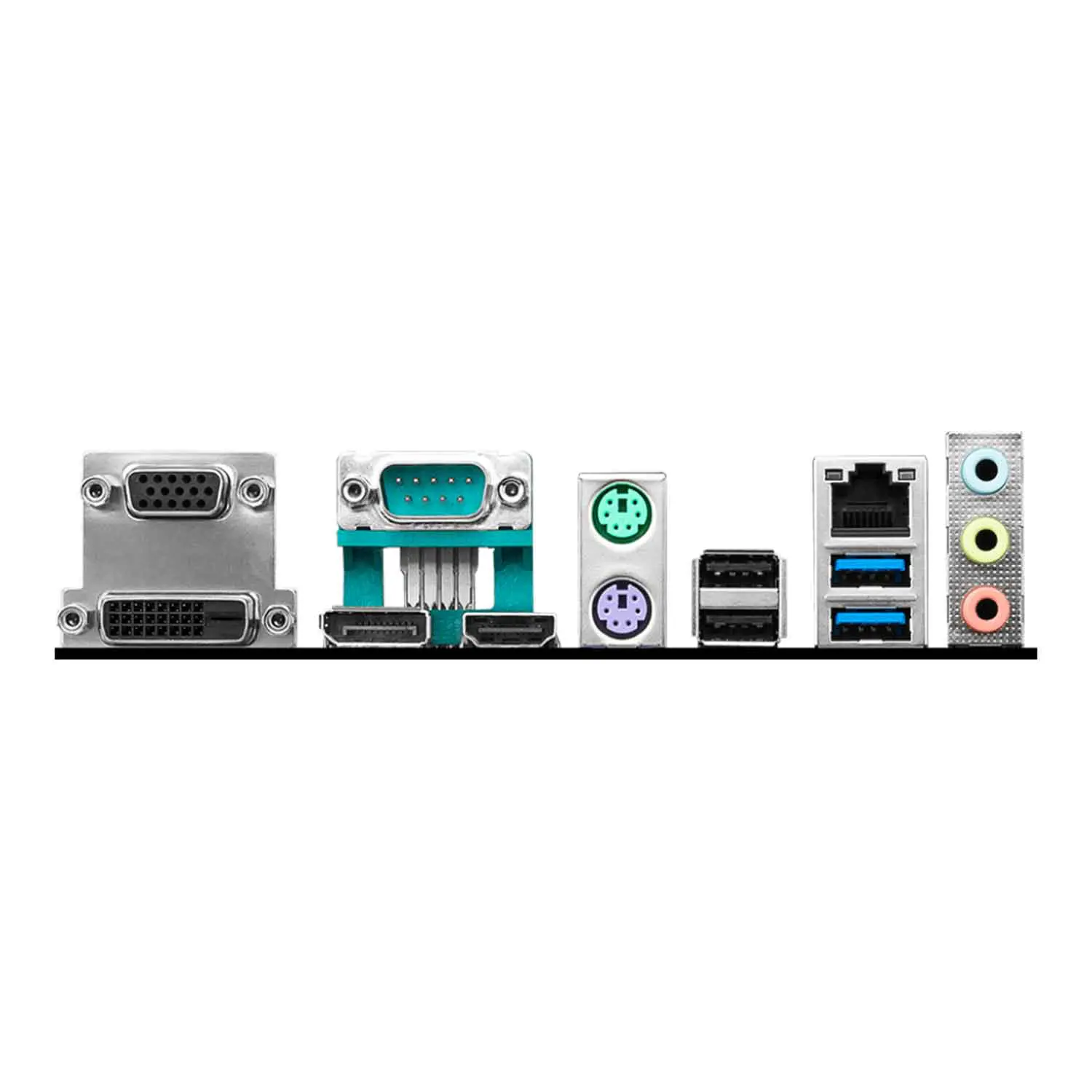

Back Panel Connectors
1 x Display Port
1 x HDMI Port
1 x VGA Port
1 x DVI-D Port
1 x COM Port
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1 x RJ-45 LAN Port
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connector
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connector (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connecto
Expansion Slot
1 x PCIe 4.0 x 16 slot
2 x PCIe 3.0 x 1 slot
Built-in Bluetooth
NA
Built-in Wifi
NA
Lighting
NA
OS Support
Windows 10 64-bit
Additional Information: MSI Pro H610M-C EX Micro ATX Motherboard
Product Type
Motherboards
EAN, GTIN, UPC
4719072924966
Brand
MSI
CPU Platform
INTEL
CPU Socket
LGA1700
Processor Generation
12TH, 13TH, 14TH
Processor Series
Core i3, Core i5, Core i7
FORM FACTOR
MICRO-ATX
MEMORY TYPE
DDR5
Motherboard Chipset
Intel H610
MAXIMUM MEMORY
96 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
