TECHNICAL SPECIFICATIONS: MSI MEG Z890 ACE ATX Motherboard
Model
MPG Z890 Carbon WiFi
Chipset
Intel Z890 Chipset
CPU Socket
LGA 1851
CPU Support
Intel Core Ultra Processors Series 2 (2nd Gen)
Memory Support
4x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 9200 (OC) MHz
Storage
1 x M.2 Gen5 x 4 slot
4 x M.2 Gen4 x 4 slot
4 x SATA 6Gb/s ports
USB Ports On Board
1 x USB 10 Gbps Type-C
2 x USB Type-C Thunderbolt 4
10 x USB 10 Gbps Type-A
LAN
1 x Intel Killer 5G LAN Chip
1 x Intel Killer 2.5G LAN Chip
Audio
Realtek ALC1220P Codec
7.1-Channel USB HD Audio
Support S/PDIF Output

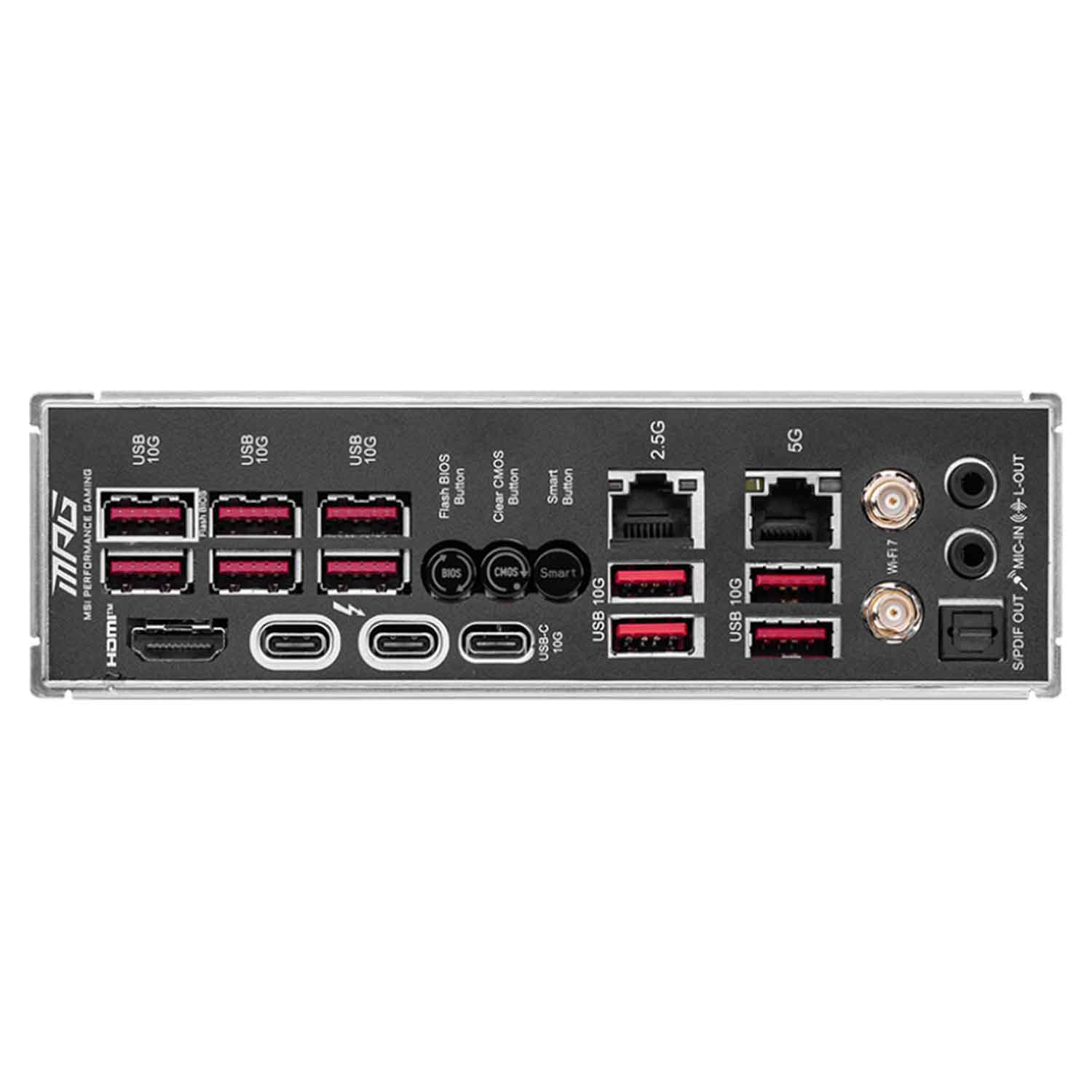

Back Panel Connectors
2 x Antenna Mounting Point
1 x HDMI 2.1 Port
2 x USB Type-C Thunderbolt 4
1 x USB 10 Gbps Type-C
10 x USB 10 Gbps Type-A Ports
1 x Smart Button
2 x RJ-45 LAN Port
1 x Clear COMS Button
1 x Flash BIOS Button
1 x Optical S/PDIF Out
1 x Mic In
1 x Line Out
Internal I/O Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x 16 slot
1 x PCIe 5.0 x 8 slot
1 x PCIe 4.0 x 4 slots
Built-in Bluetooth
Bluetooth – 5.4
Built-in Wifi
WiFi – 7
Lighting
RGB
OS Support
Windows 11 64-bit
Specification: MSI MEG Z890 ACE ATX Motherboard
CPU Socket
LGA1851
Motherboard Chipset
Intel Z890
Product Type
Motherboards
EAN, GTIN, UPC
4711377260794
Brand
MSI
CPU Platform
INTEL
FORM FACTOR
ATX
MEMORY TYPE
DDR5
MAXIMUM MEMORY
256 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
₹96,999Original price was: ₹96,999.₹46,099Current price is: ₹46,099.
