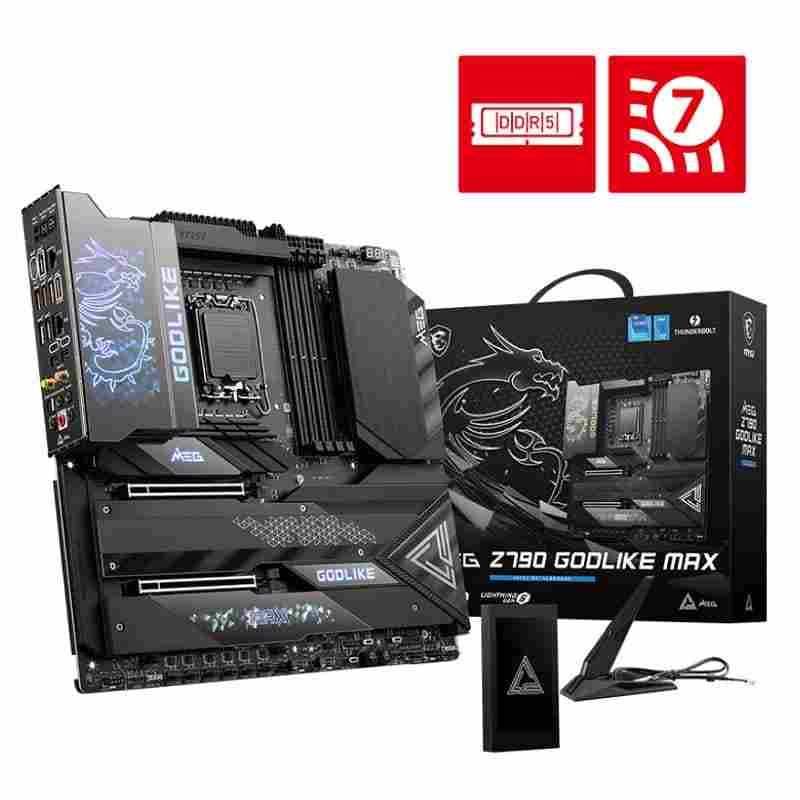

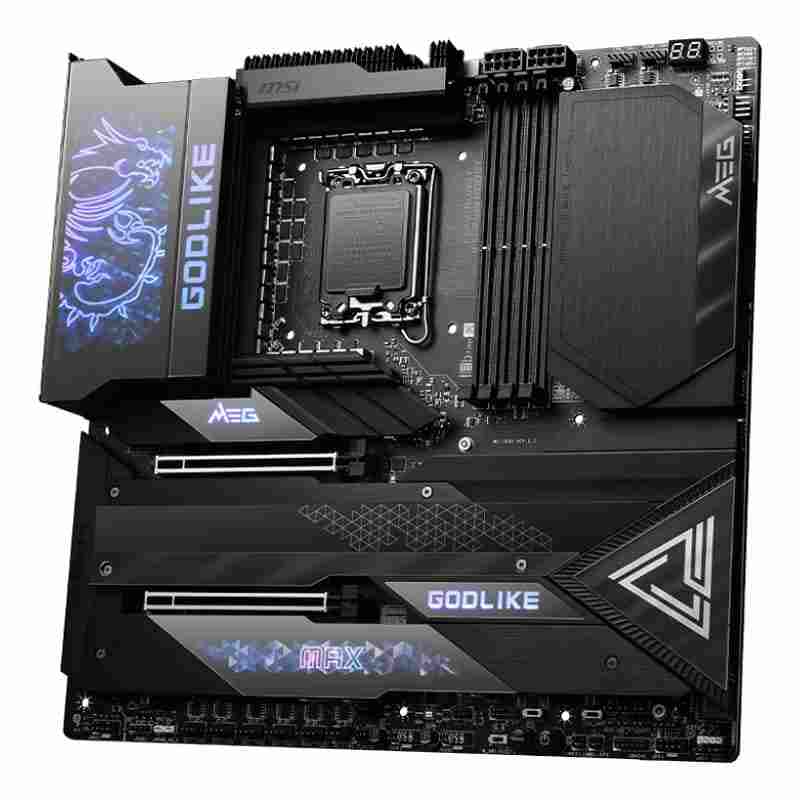

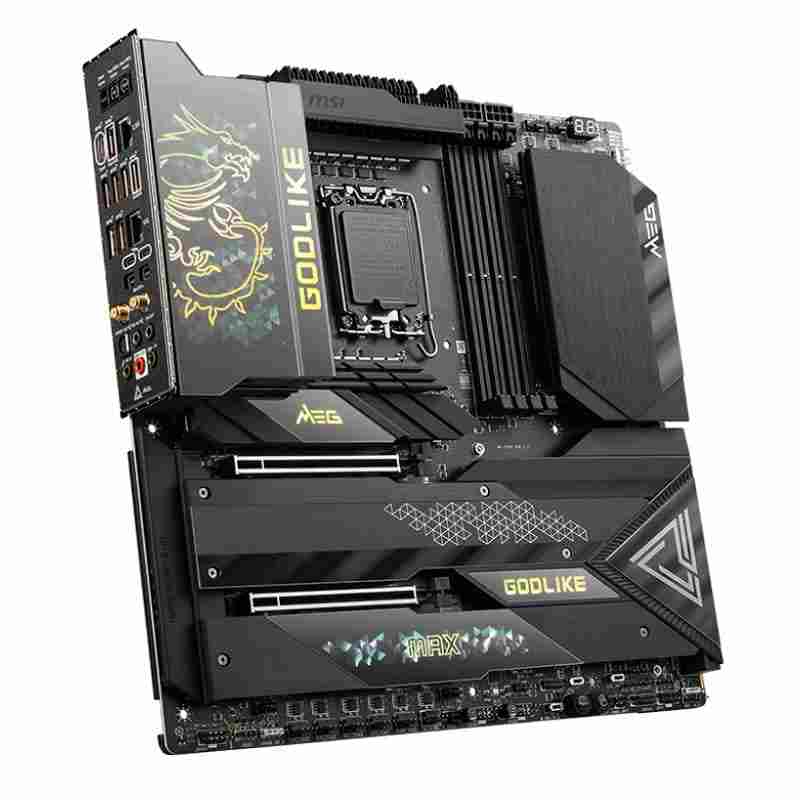

TECHNICAL SPECIFICATIONS: MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
Model
MEG Z790 GODLIKE MAX
Chipset
INTEL Z790
CPU Socket
LGA 1700
CPU Support
Intel Core 14th/ 13th/ 12th Gen Processors
Intel Pentium Gold and Celeron Processors
Memory Support
4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7800 mhz+(OC)
Storage
1 x M.2 Gen 5 x4 128Gbps
5 x M.2 Gen 4 x4 64Gbps
1 x M.2 Gen 3 x4 32Gbps
6 x SATA 6Gbps
USB ports on Board
4 x USB 2.0
4 x USB 3.2 Gen1 Type A
7 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C
2 x USB 3.2 Gen2x2 Type C
LAN
1 x Marvell AQC113CS-B1-C 10Gbps LAN
1 x Intel 2.5Gbps LAN
Audio
8-Channel (7.1) HD Audio with Audio Boost 5 HD

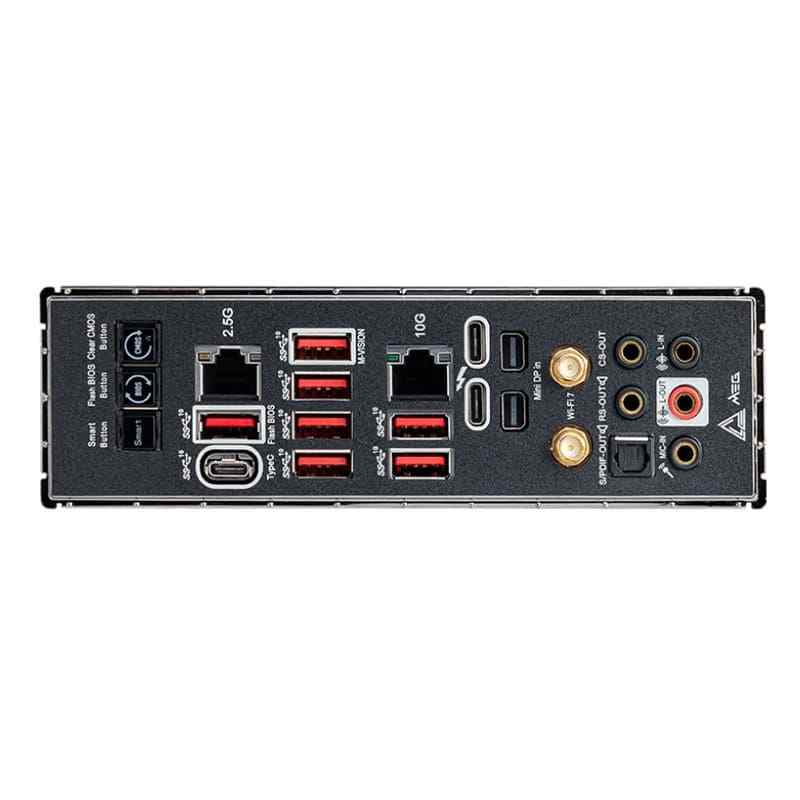

Back Panel Connectors
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x 2.5G LAN
1 x 10G Super LAN
2 x Thunderbolt 4 40Gbps (Type-C)
2 x Wi-Fi / Bluetooth
5 x Audio Connectors
1 x Smart Button
1 x USB 3.2 Gen 2 10Gbps (Type-C)
7 x USB 3.2 Gen 2 10Gbps (Type-A)
2 x Mini DisplayPort Input (for Thunderbolt passthrough)
1 x Optical S/PDIF-Out
Expansion Slot
2 x PCIe 5.0 x16 slots
Built-in Bluetooth
No, Support V5.4
Built-in Wifi
Yes, Wi-Fi 7 Solution
Lighting
NA
OS Support
Windows 11 64-bit
Specification: MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
