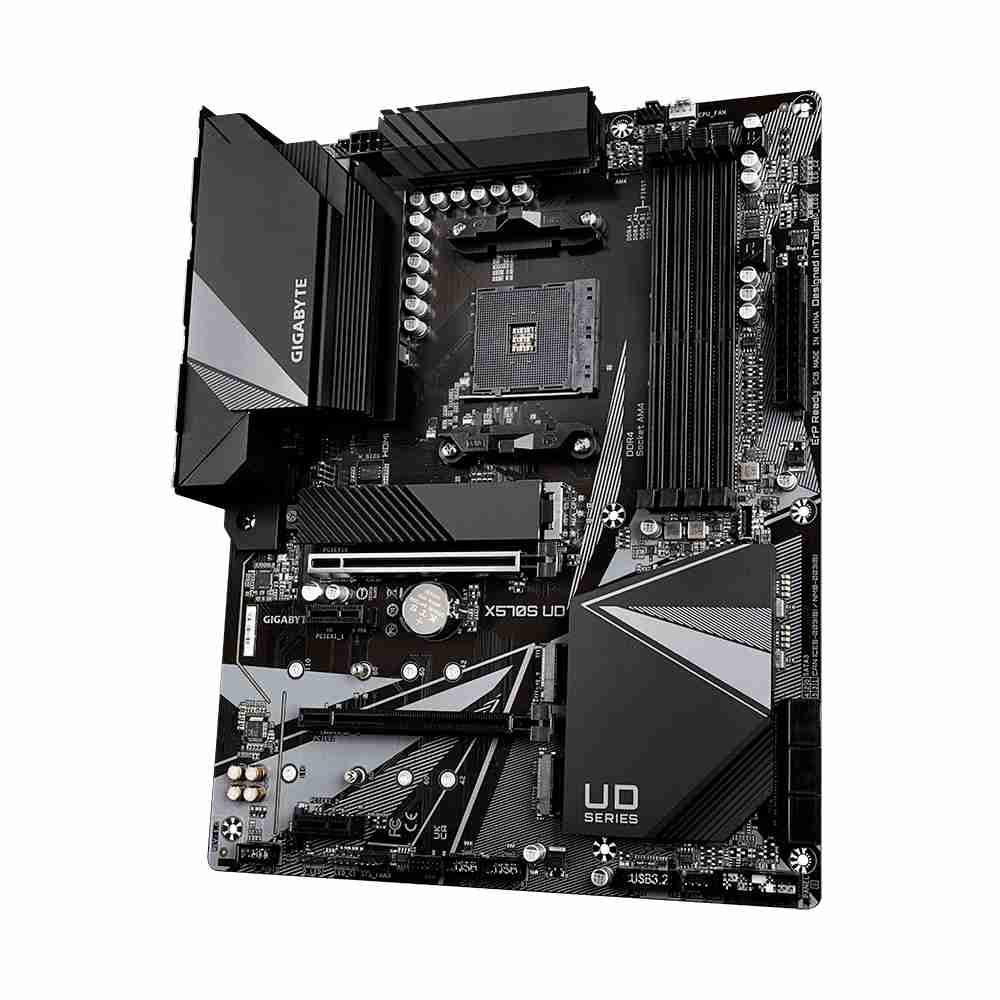

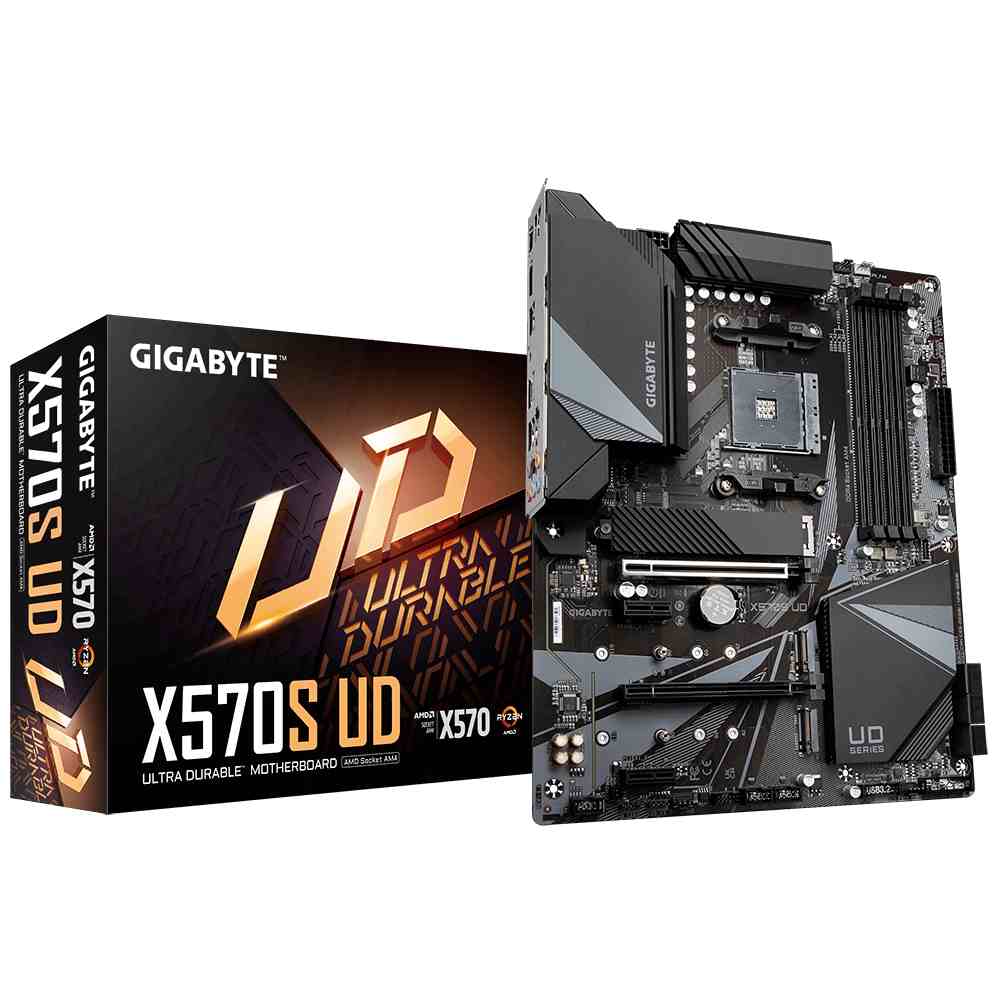

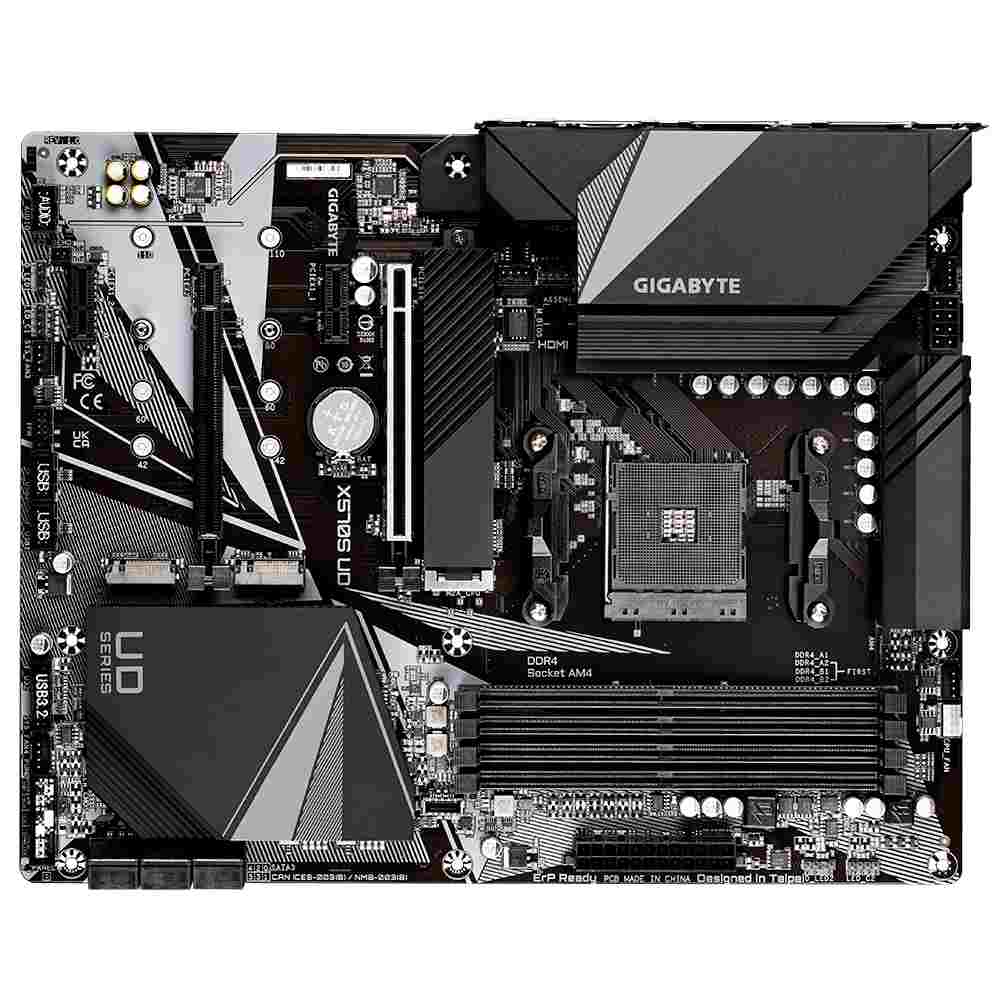

Gigabyte X570S UD is a DDR4 ATX Motherboard that unleashes the full potential of AMD AM4 processor. With the best CPU, Memory, and IO design Gigabyte X570S UD brings its best performance. This desktop PC motherboard supports the AMD Ryzen series processor and X570 chipset. The front and rare USB 3.2 Type-C port delivers fast and versatile connectivity options.
4 x DDR4 Maximum Memory Capacity 128 GB, Max Memory Support 5100(O.C.)
Storage
3 x M.2 connector
6 x SATA 6Gb/s connectors
USB ports on Board
6 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-C ports
1 x USB 3.2 Gen 2 Type-A port (red)
6 x USB 2.0/1.1 ports
LAN
Realtek 2.5GbE LAN chip
Audio
2/4/5.1/7.1-channel High Definition Audio
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
6 x audio jacks
Expansion Slot
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0×16/3.0 x2 slot
2 x PCIe 4.0/3.0 x1 slots slots
Built-in Bluetooth
NA
Built-in Wifi
NA
Lighting
RGB
OS Support
Windows 11 64-bit, Windows 10 64-bit
Specification: Gigabyte X570S UD DDR4 ATX Motherboard
