Intel Core 4th Gen i7 / i5 / i3 Processors
Intel Pentium Processors and Celeron Processors
Memory Support
2 x 1.5v DDR3, Maximum Memory Capacity 16GB, Max Memory Support 1600 MHz
Storage
2 x SATA 3Gb/s ports
2 x SATA 6Gb/s ports
USB ports on Board
2 x USB 3.0/2.0 Type-A
2 x USB 2.0/1.1 Type-A
LAN
1 x RJ45 Port (Intel GbE LAN chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek ALC887 CODEC, 2/4/5.1/7.1-Channel

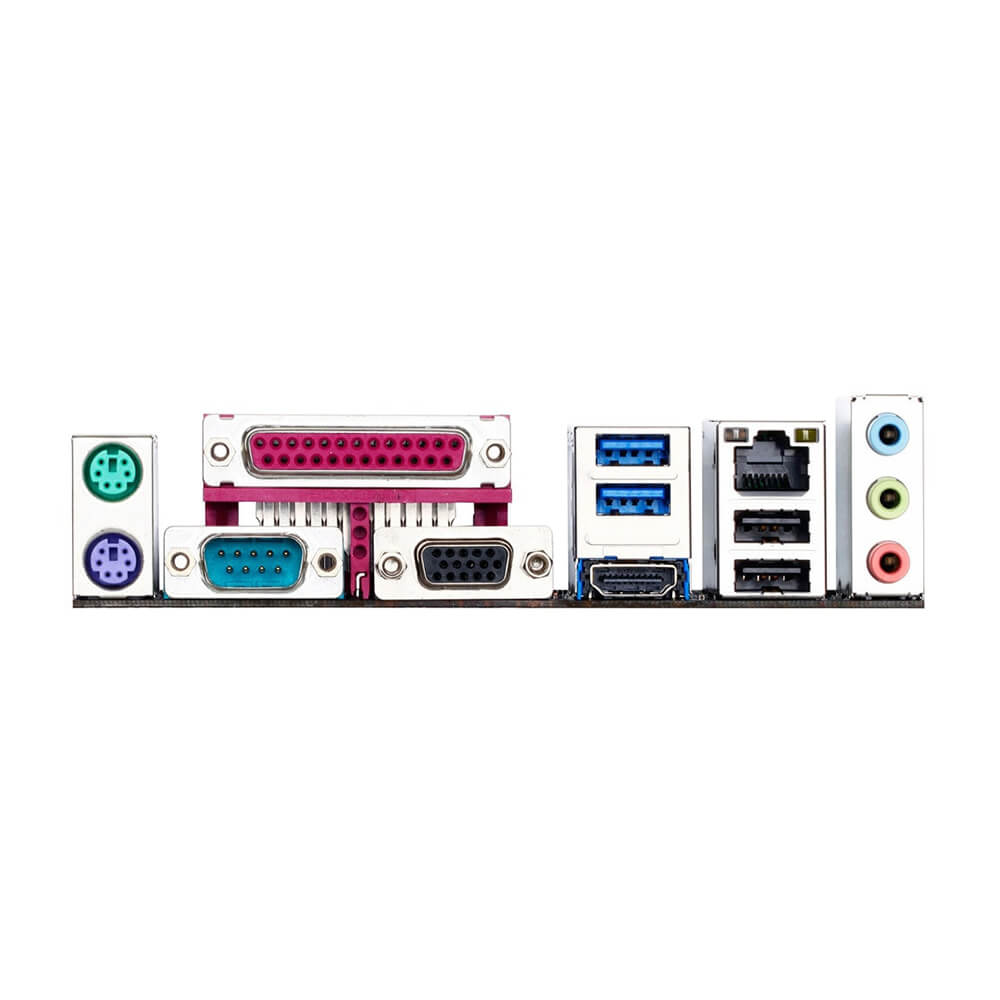

Back Panel Connectors
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x parallel port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Audio Mic Jack
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
