TECHNICAL SPECIFICATIONS: ASUS Prime Z790-P-CSM ATX Motherboard
Model
Prime Z790-P-CSM
Chipset
Intel Z790 Chipset
CPU Socket
LGA1700
CPU Support
Intel Core 10th Gen i9/ i7 / i5 / i3 Processors
Intel Pentium processor and Celeron Processors
Memory Support
4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7200 + OC MHz
Storage
3 x M.2 PCIe 4.0 x 4 slot
4 x SATA 6Gb/s ports
USB Ports On Board
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 Type-A
LAN
1 x Realtek 2.5Gb Ethernet
Audio
Realtek 7.1 HD Audio CODEC

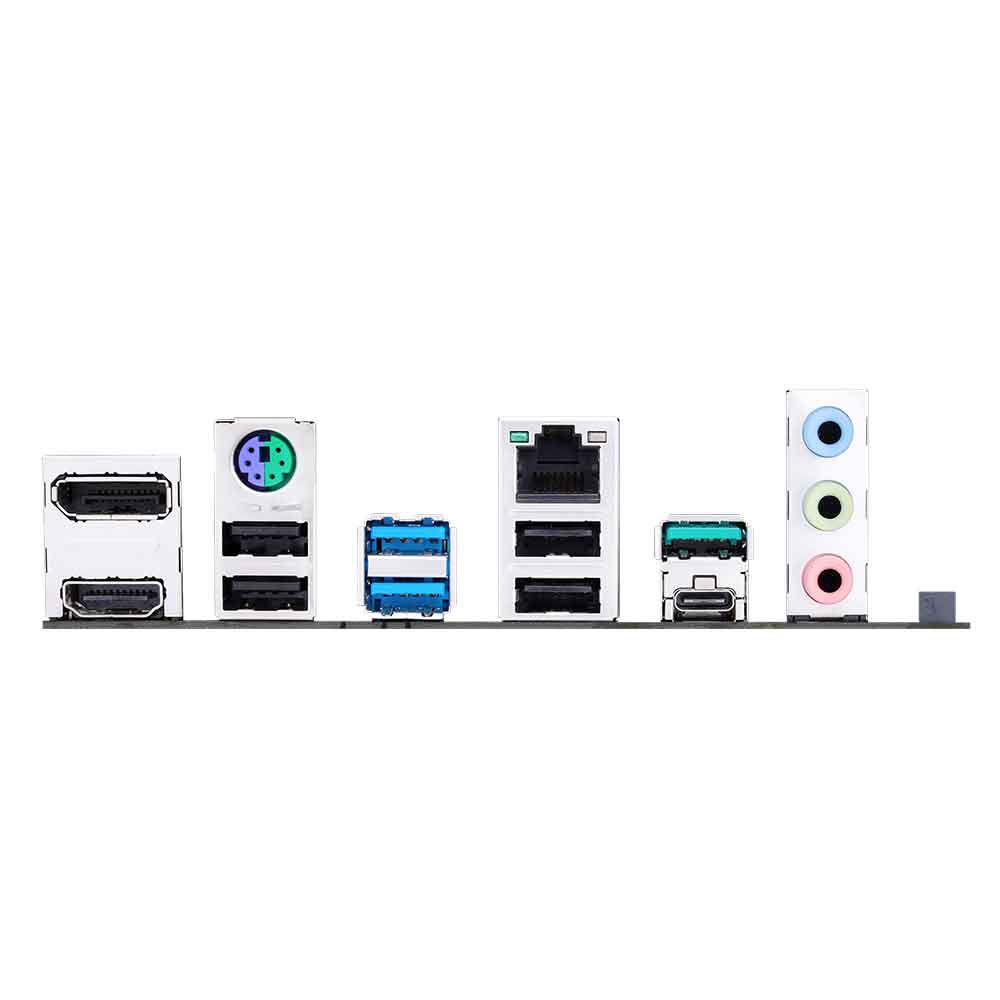

Back Panel Connectors
1 x PS/2 Keyboard/Mouse Combo Port
1 x HDMI Port
1 x Display Port
1 x USB 3.2 Gen2x2 Type-C Port
1 x USB 3.2 Gen2 Type-A Port
2 x USB 3.2 Gen1 Type-A port
4 x USB 2.0 Type-A Port
1 x RJ-45 LAN Port
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connector
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) Header
Expansion Slot
1 x PCIe 4.0 x 16 slot
2 x PCIe 4.0 x 1 slot
Built-in Bluetooth
No
Built-in WiFi
No
Lighting
NA
OS Support
Windows 11 64-bit
Windows 10 64-bit
