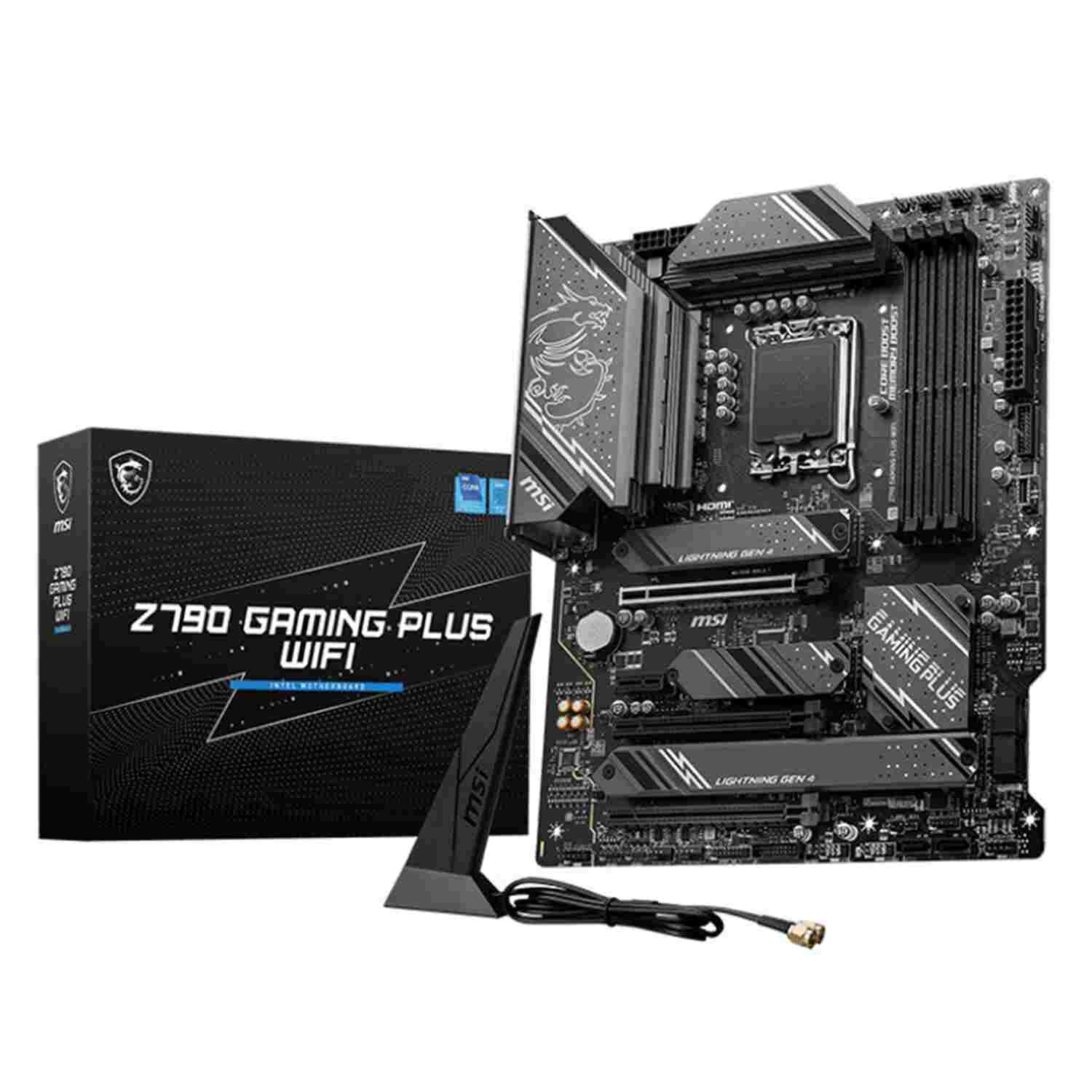

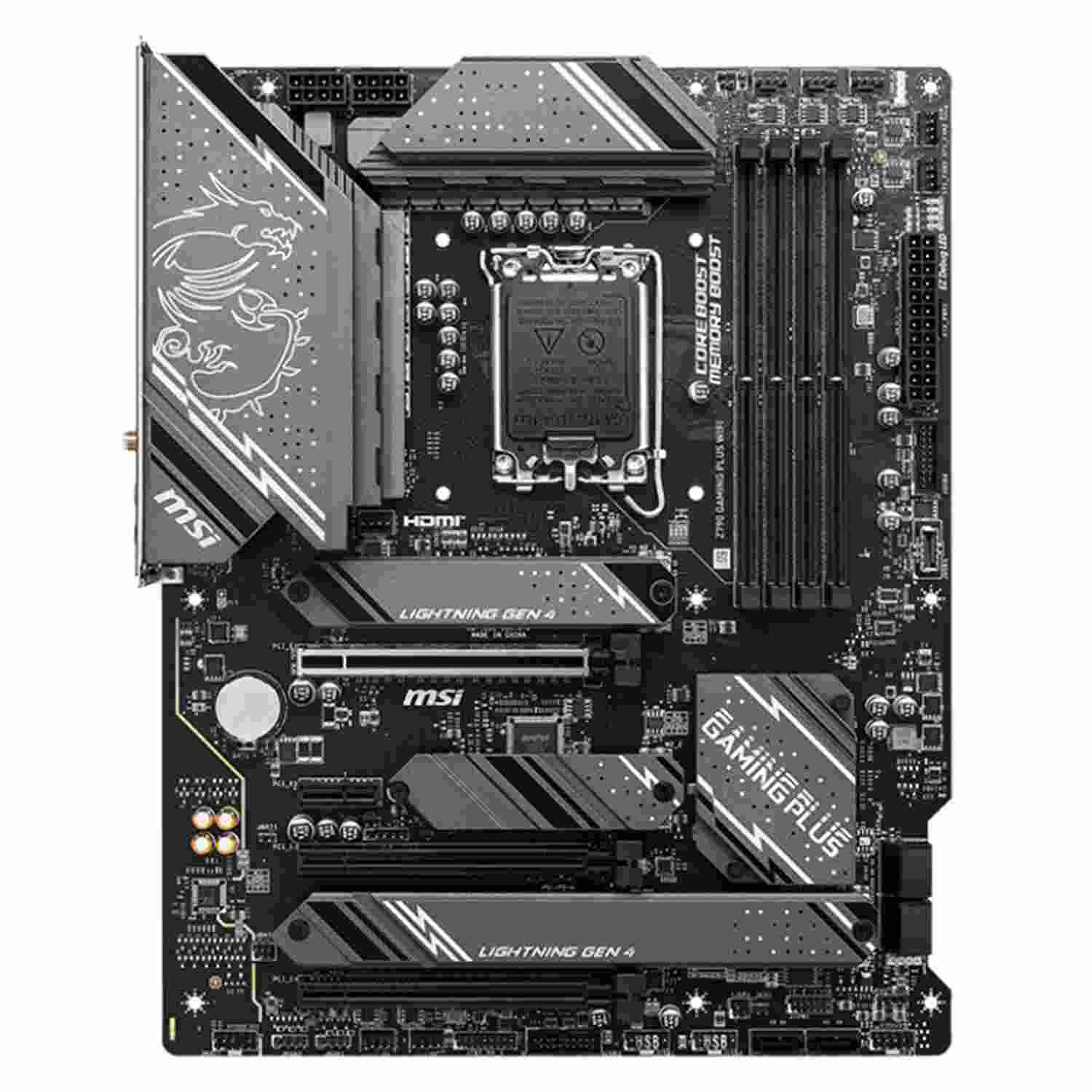

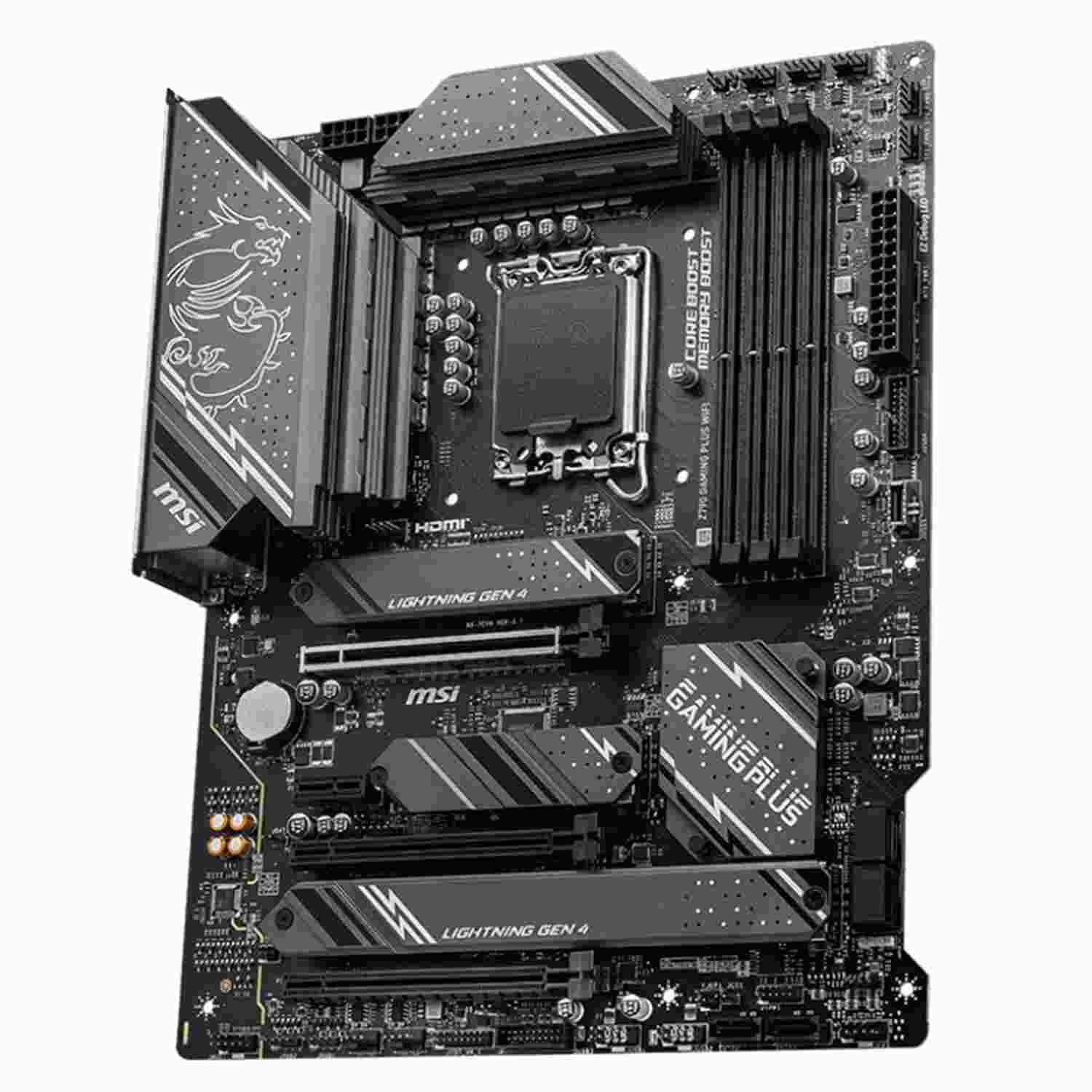

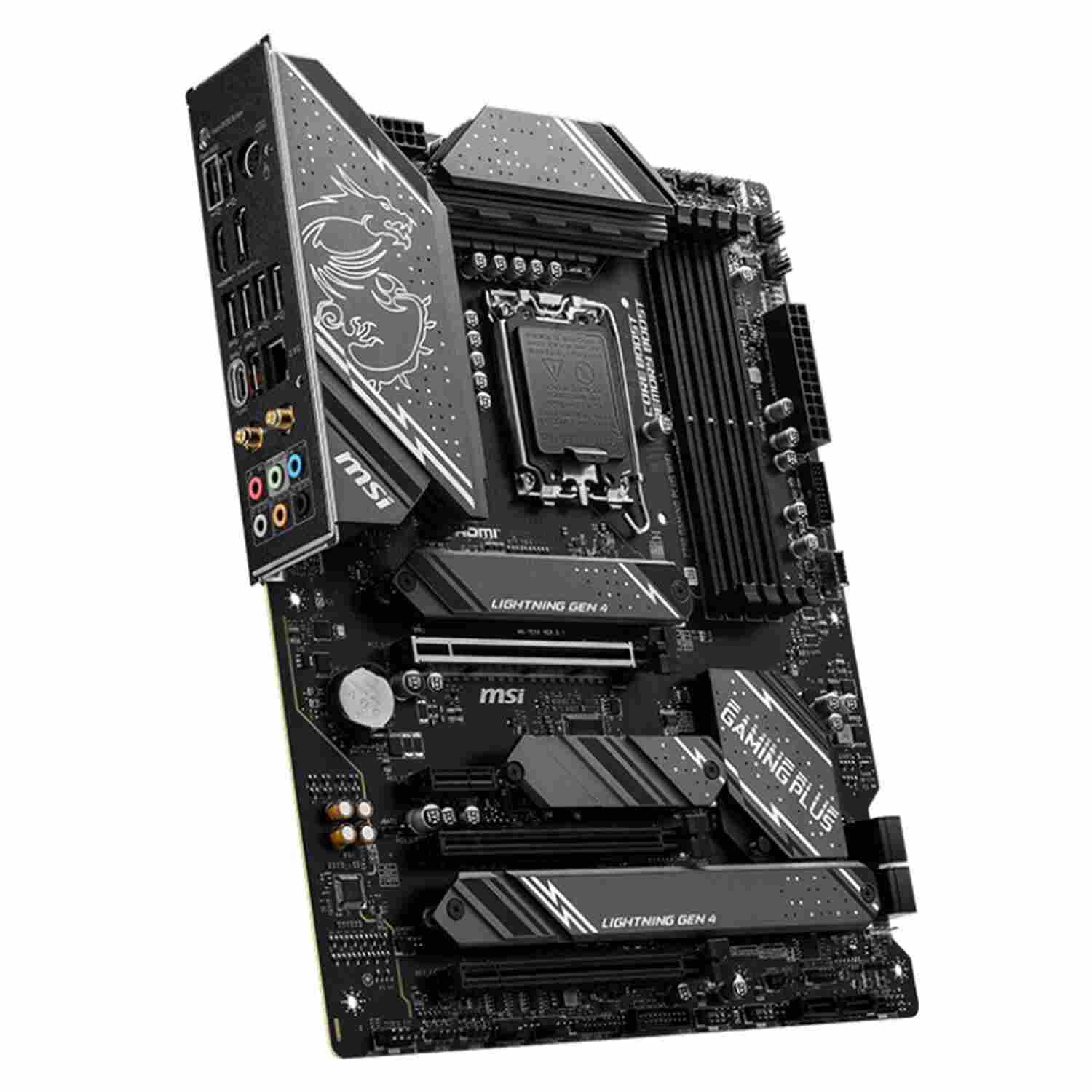

TECHNICAL SPECIFICATIONS: MSI Z790 Gaming Plus WiFi ATX DDR5 Motherboard
Model
Z790 Gaming Plus WiFi
Chipset
Intel Z790
CPU Socket
LGA 1700
CPU Support
Intel Core 14th / 13th / 12th Gen Processors
Intel Pentium Gold, and Celeron Processors
Memory Support
4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 7200+ OC MHz
Storage
4 x M.2 PCIe 4.0 x 4 slot
6 x SATA 6Gb
USB Ports On Board
1 x USB 3.2 Gen 2×2 Type-C Port
1 x USB 3.2 Gen 2 Type-A Port
2 x USB 3.2 Gen 1 Type-A Port
4 x USB 2.0 Type-A Port
LAN
1 x Intel 2.5Gbps LAN
Audio
Realtek ALC897 Codec
7.1 Channel High Definition Audio

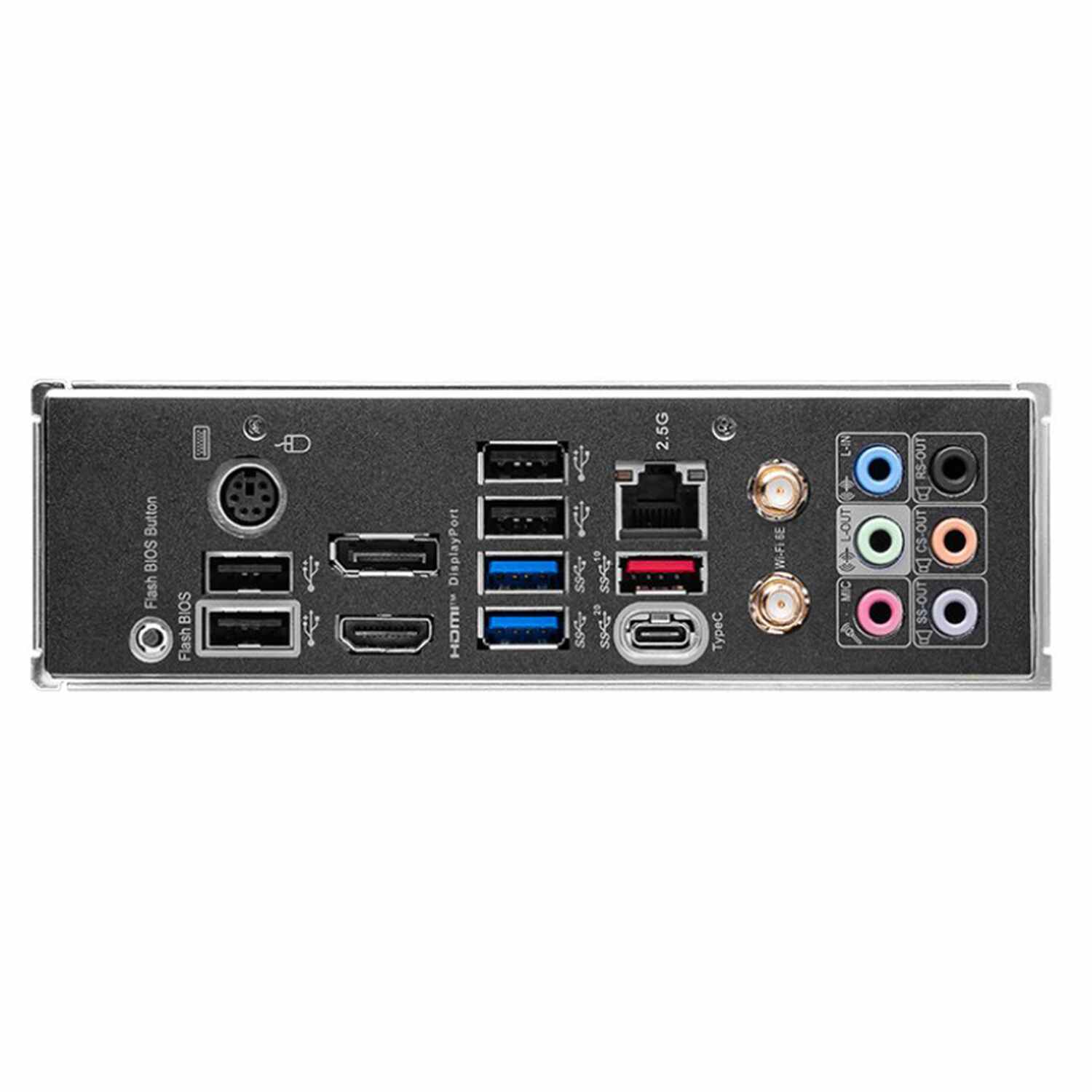

Back Panel Connectors
1 x HDMI 2.1 Port
1 x DisplayPort
1 x USB 3.2 Gen 2×2 Type-C Port
1 x USB 3.2 Gen 2 Type-A Port
2 x USB 3.2 Gen 1 Type-A Port
4 x USB 2.0 Type-A Port
1 x PS/2 keyboard/mouse port
1 x RJ-45 LAN Port
2 x Wi-Fi / Bluetooth Connectors
1 x Flash BIOS Button
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
1 x SS-Out
1 x CS-Out
1 x RS-Out
Internal I/O Connector
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
1 x USB4 card connector (JTBT_U4_1, supports RTD3)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Built-in Bluetooth
Bluetooth 5.3
Built-in WiFi
WiFi 6E
Lighting
NA
OS Support
Windows 10 64-bit
Windows 11 64-bit
Specification: MSI Z790 Gaming Plus WiFi ATX DDR5 Motherboard
