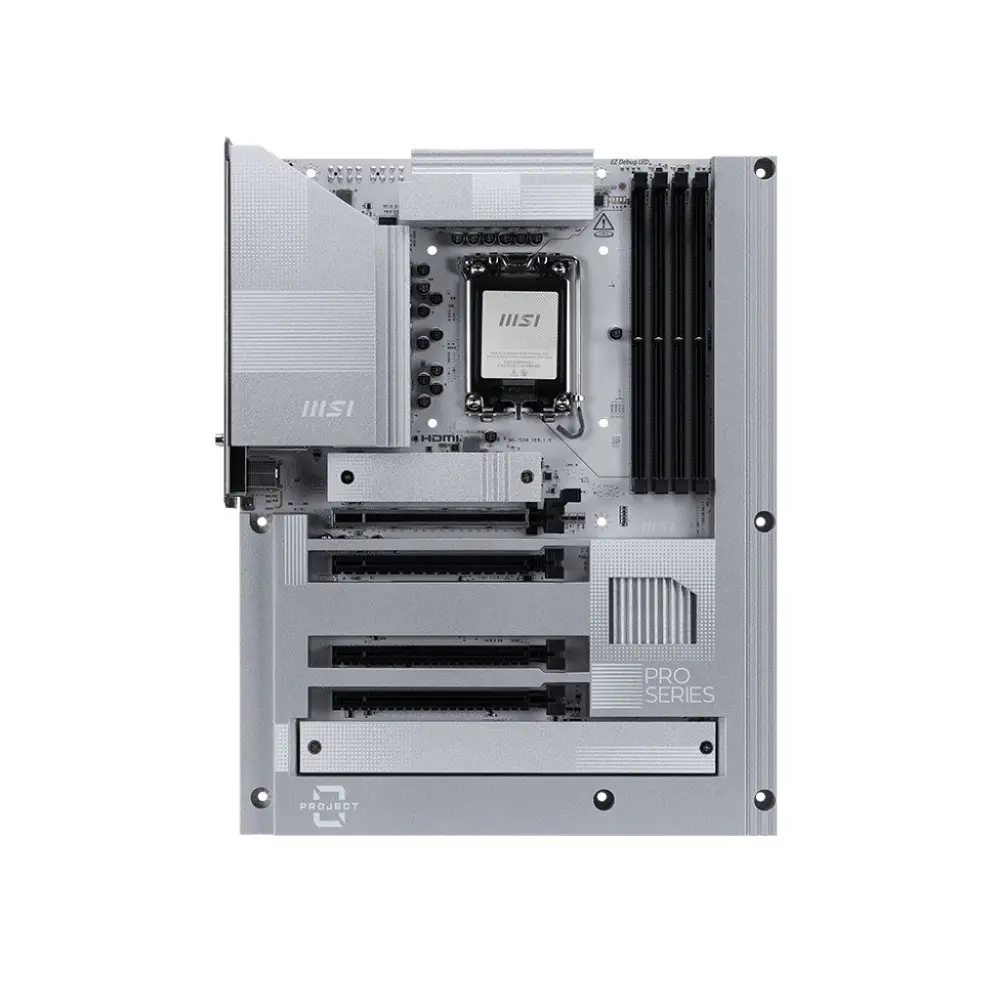

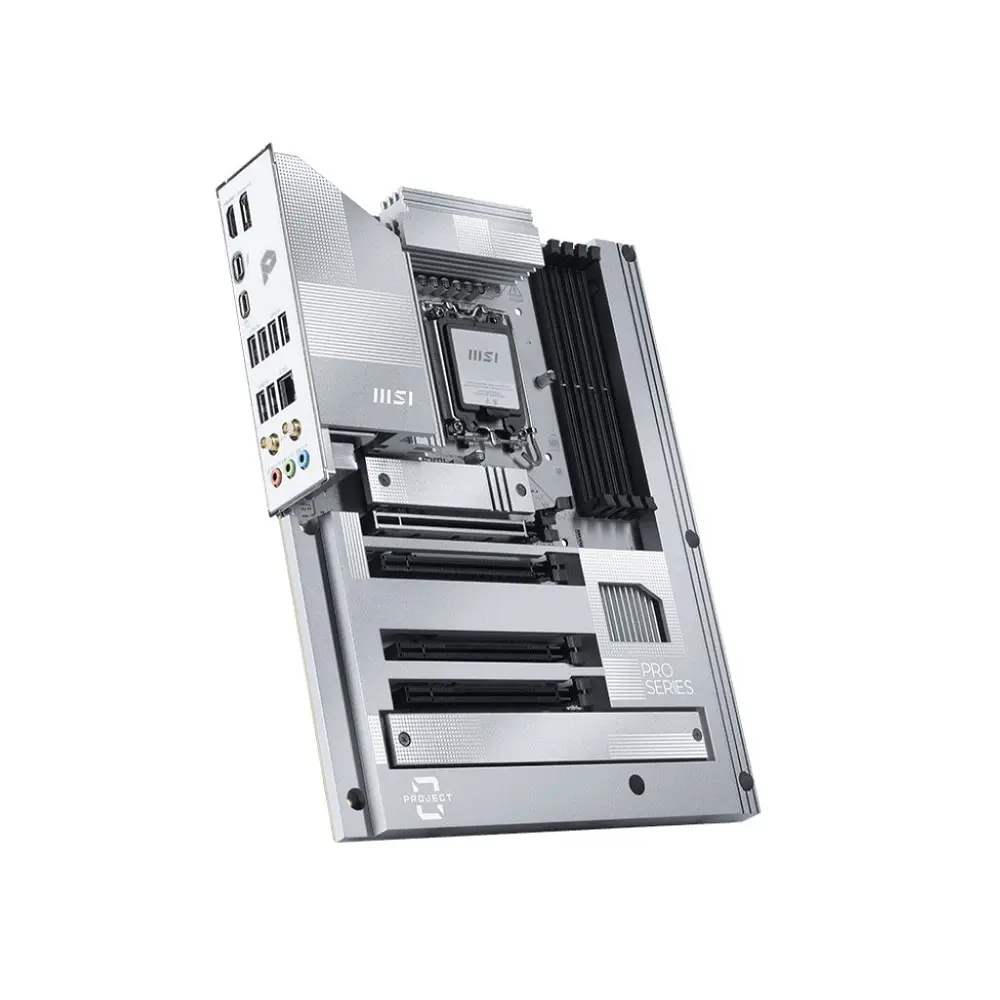

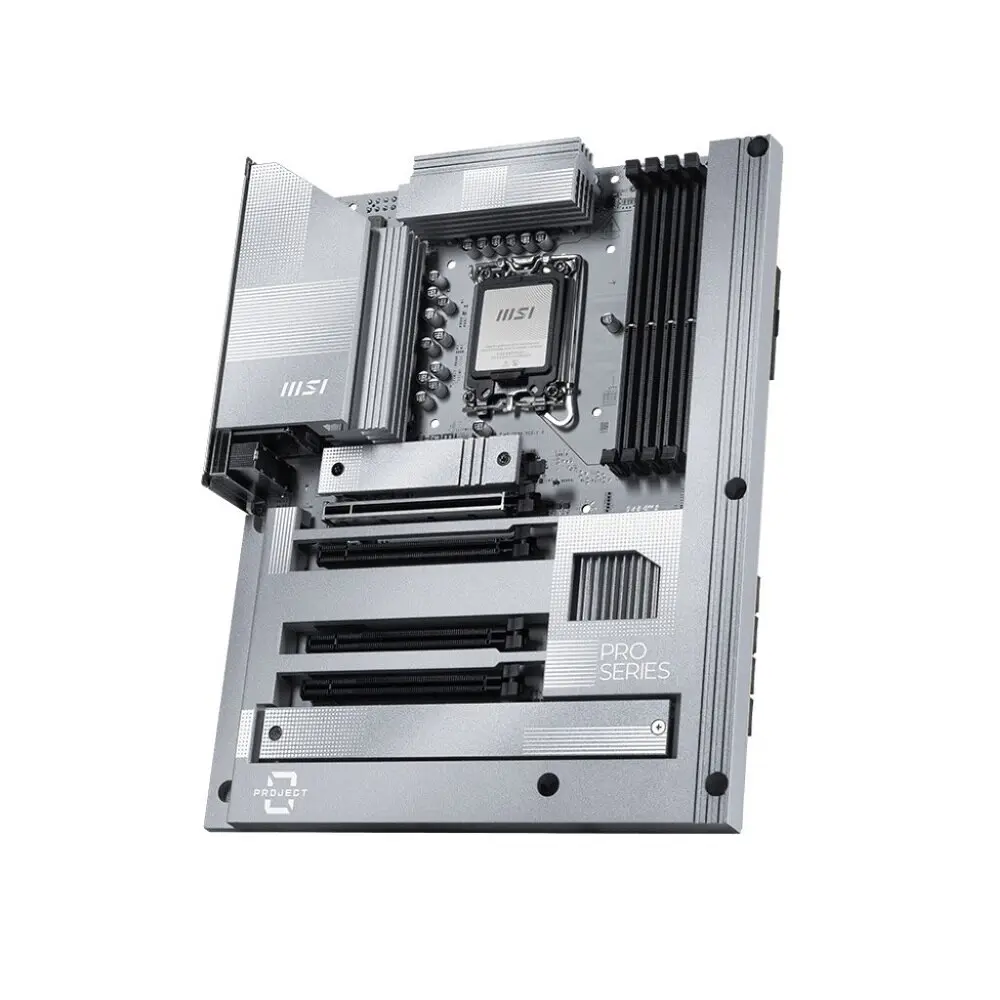

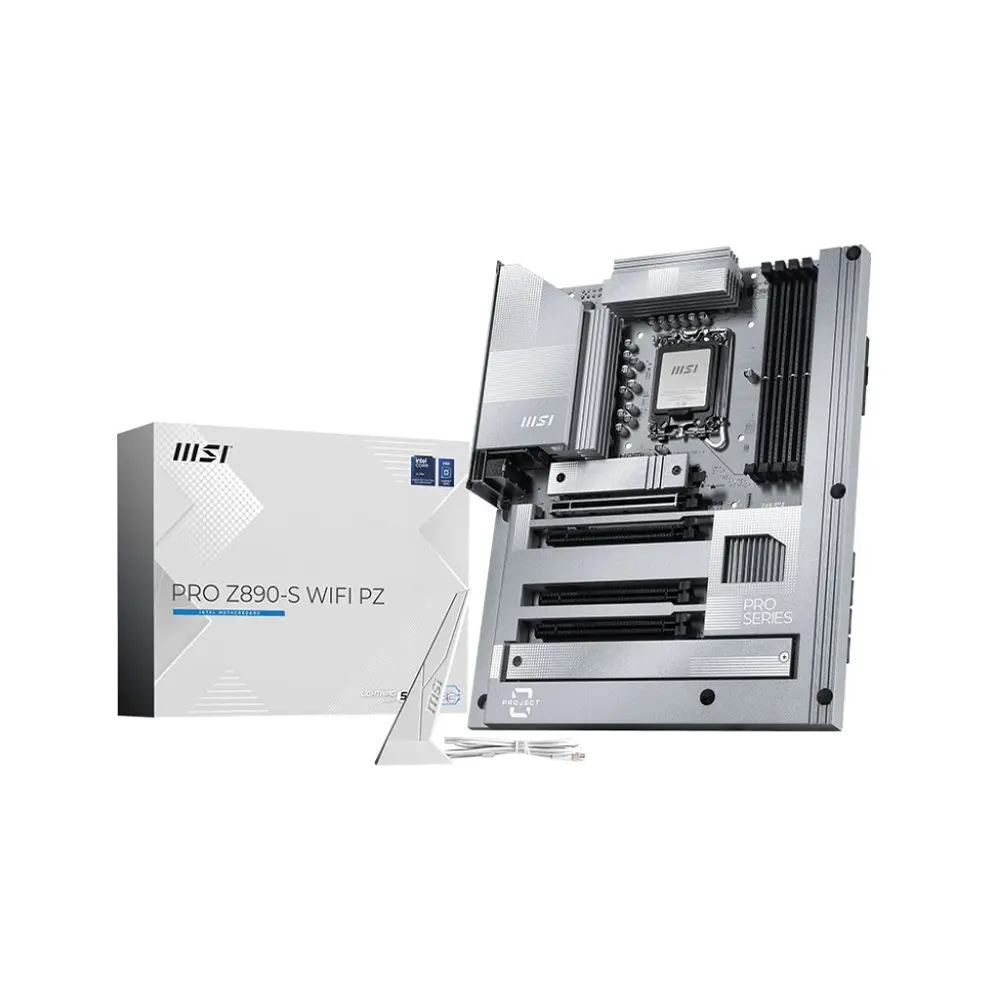

TECHNICAL SPECIFICATIONS: MSI Pro Z890-S WiFi PZ ATX Motherboard
Model
Pro Z890-S WiFi PZ
Chipset
Intel Z890
CPU Socket
LGA 1851
CPU Support
Intel Ultra Processors Series 2
Memory Support
4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 8800 OC MHz
Storage
1 x M.2 PCIe 5.0 x 4 slot
2 x M.2 PCIe 4.0 x 4 slot
USB Ports On Board
1 x USB Thunderbolt 4 40Gbps Type-C
1 x USB 20Gbps Type-C
6 x USB 5Gbps Type-A
LAN
1 x Realtek 8125D 2.5Gbps LAN
Audio
Realtek ALC897 Codec
7.1 HD Audio CODEC ALC4080

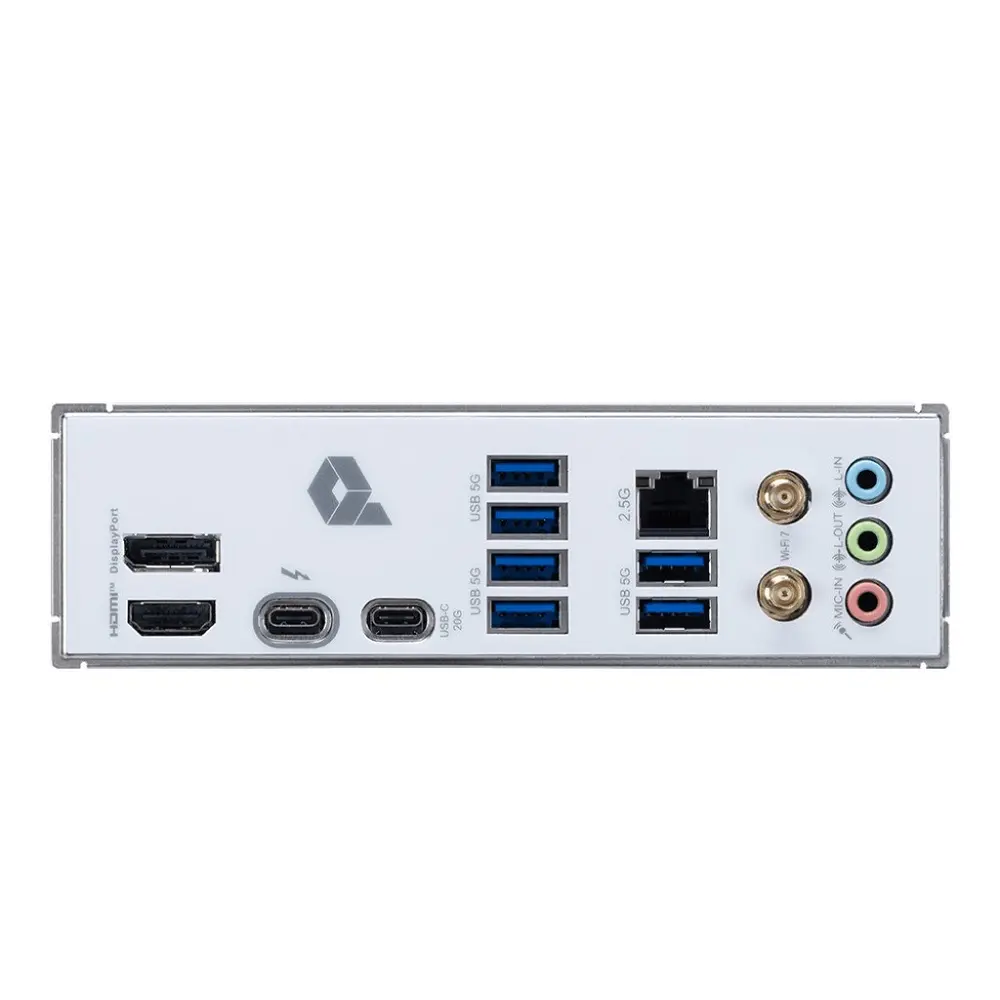

Back Panel Connectors
1 x USB Thunderbolt 4 40Gbps Type-C
1 x USB 20Gbps Type-C
6 x USB 5Gbps Type-A
2 x WiFi & Bluetooth Module
1 x RJ-45 LAN Port
1 x Display Port
1 x HDMI Port
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connector
1 x Thunderbolt5 card connector(JTBT5, support RTD3)
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x 16 slot
2 x PCIe 4.0 x 16 slot
1 x PCIe 3.0 x 16 slot
Built-in Bluetooth
v5.4
Built-in WiFi
WiFi 7
Lighting
EZ Debug LED
OS Support
Windows 11 64-bit
Specification: MSI Pro Z890-S WiFi PZ ATX Motherboard
Product Type
Motherboards
EAN, GTIN, UPC
4711377288996
Brand
MSI
CPU Platform
INTEL
CPU Socket
LGA1851
Processor Generation
2ND
Processor Series
Intel Ultra Series
FORM FACTOR
ATX
MEMORY TYPE
DDR5
Motherboard Chipset
Intel Z890
MAXIMUM MEMORY
256 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
₹44,999Original price was: ₹44,999.₹27,999Current price is: ₹27,999.
