4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 8400+ OC MHz
Storage
2 x M.2 PCIe 5.0 x 4 slot
1 x M.2 PCIe 4.0 x 4 slot
1 x M.2 PCIe 4.0 x 2 slot
4 x SATA 6Gb
USB Ports On Board
3 x USB 10Gbps Type-C Port
2 x USB 10Gbps Type-A Port
2 x USB 5Gbps Type-A Port
4 x USB 2.0 Type-A Port
LAN
1 x Realtek 8126 5G LAN Port
Audio
Realtek ALC4080 Codec
7.1 Channel USB High Performance Audio

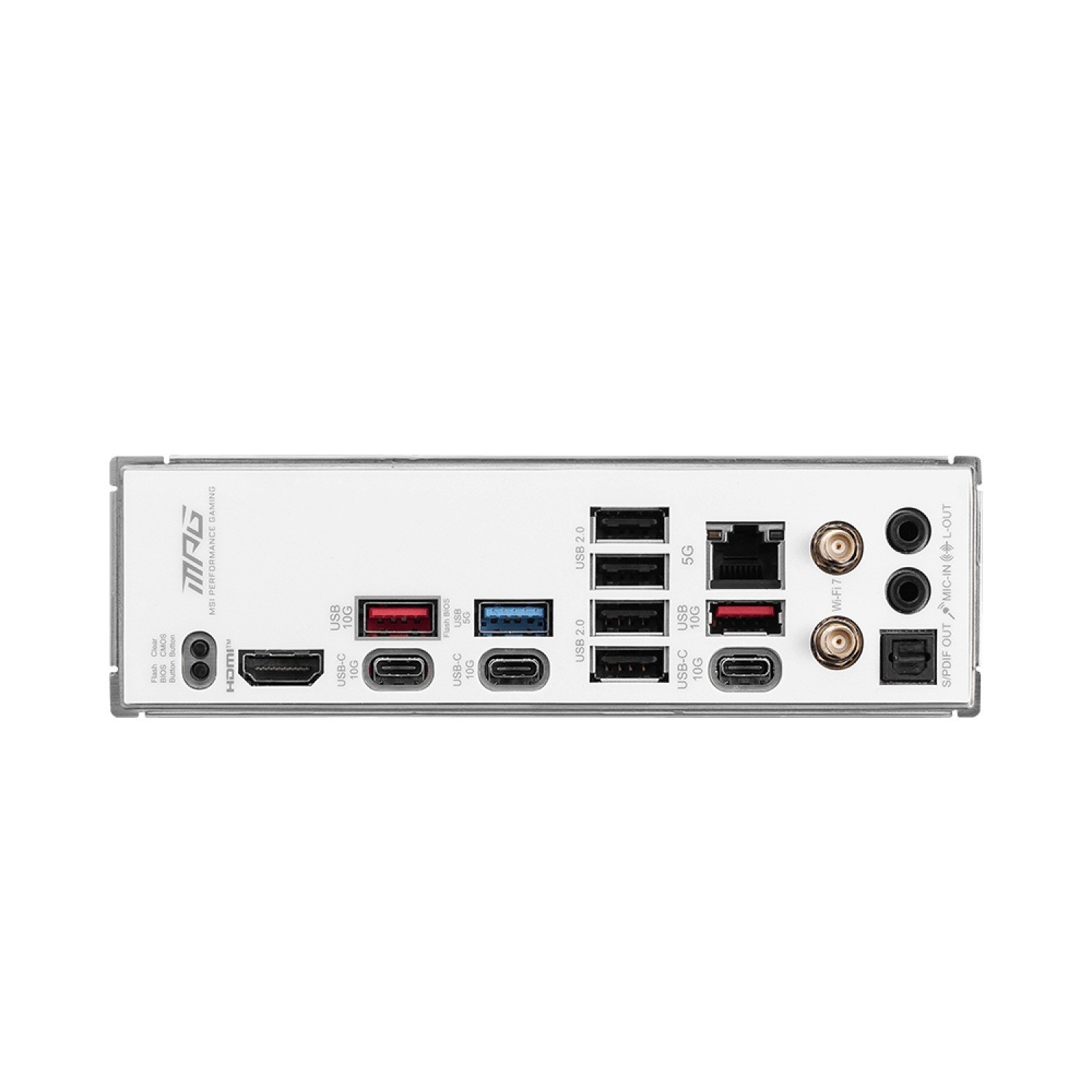

Back Panel Connectors
1 x HDMI Port
3 x USB 10Gbps Type-C Port
2 x USB 10Gbps Type-A Port
2 x USB 5Gbps Type-A Port
4 x USB 2.0 Type-A Port
1 x RJ-45 LAN Port
2 x WiFi/Bluetooth Antenna Connector
1 x Flash BIOS Button
1 x Clear CMOS Button
1 x Optical S/PDIF Out
1 x Mic In
1 x Audio Line Out
Internal I/O Connector
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x 16 slot
1 x PCIe 4.0 x 16 slot
1 x PCIe 3.0 x 16 slot
Built-in Bluetooth
Bluetooth 5.4
Built-in WiFi
WiFi 7
Lighting
4 x EZ Debug LED
1 x EZ Digit Debug LED
1 x EZ Memory Detection
OS Support
Windows 11 64-bit
Specification: MSI MPG B850 EDGE TI WiFi ATX DDR5 Motherboard
