AMD Ryzen 9000 Series/8000 Series/8000 G Series/7000 Series
Memory Support
4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 8400 OC MHz
Storage
2 x M.2 PCIe 5.0 x 4 slot
2 x M.2 PCIe 4.0 x 4 slot
USB Ports On Board
2 x USB 40Gbps Type-C
1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
LAN
1 x Realtek 8126 5G LAN
Audio
Realtek ALC4080 Codec
7.1 Channel USB High Performance Audio

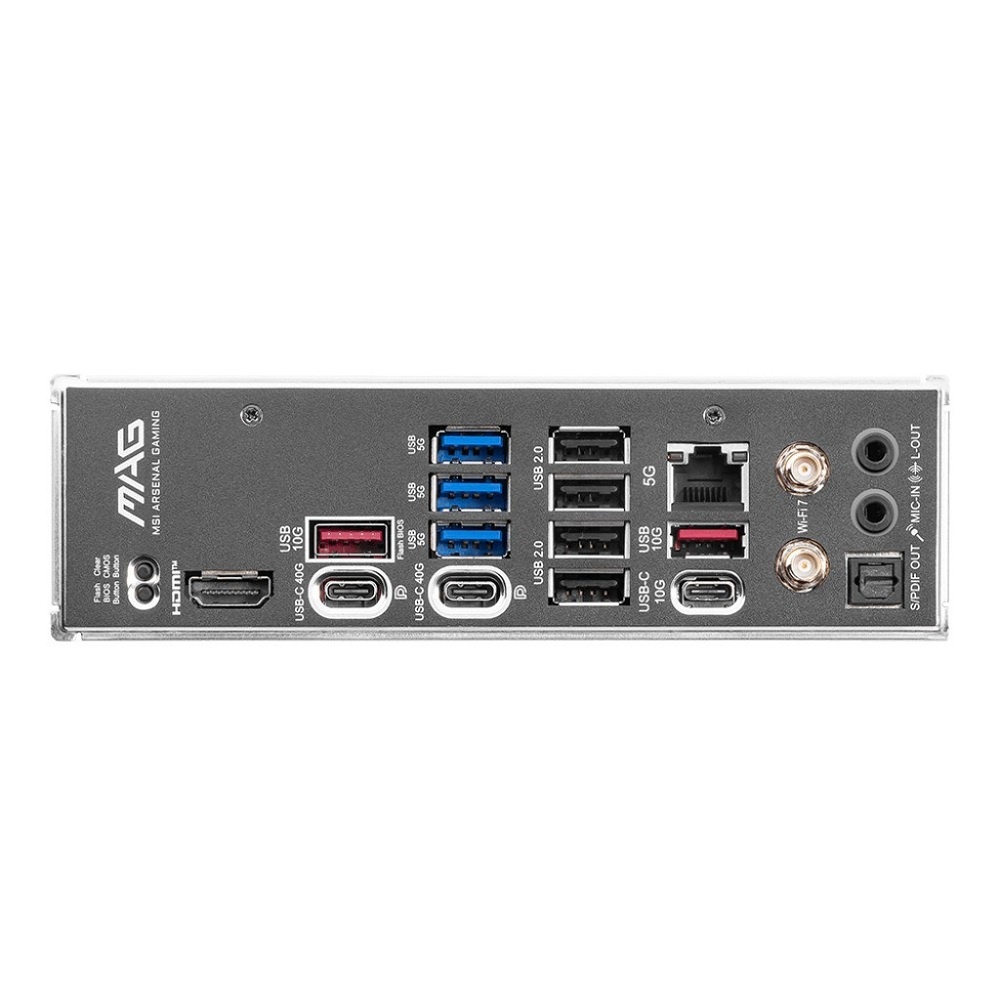

Back Panel Connectors
1 x HDMI Port
2 x USB 40Gbps Type-C
1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
2 x WiFi & Bluetooth Module
1 x RJ-45 LAN Port
1 x Flash BIOS Button
1 x Clear CMOS Button
1 x Opticla S/PDIF Out
1 x Mic In
1 x Audio Line Out
Internal I/O Connector
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x 16 slot
1 x PCIe 4.0 x 4 slot
1 x PCIe 3.0 x 1 slot
