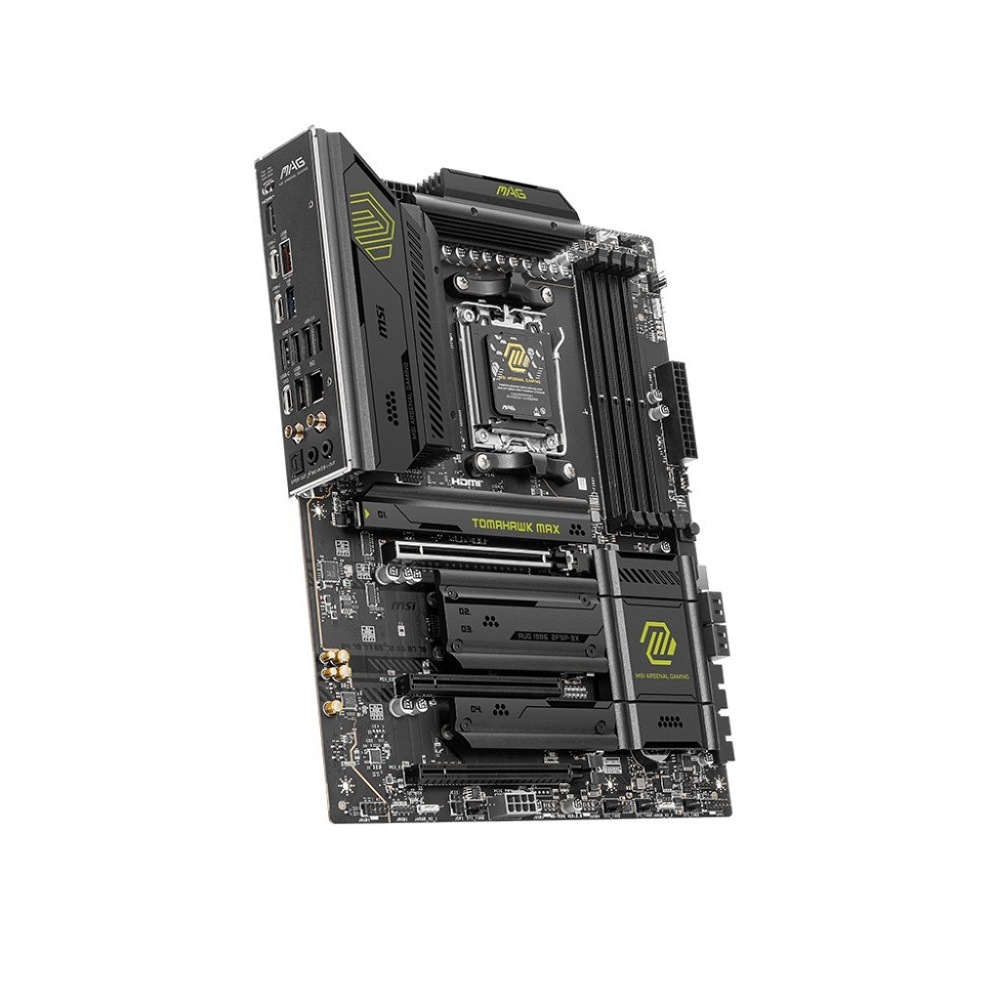

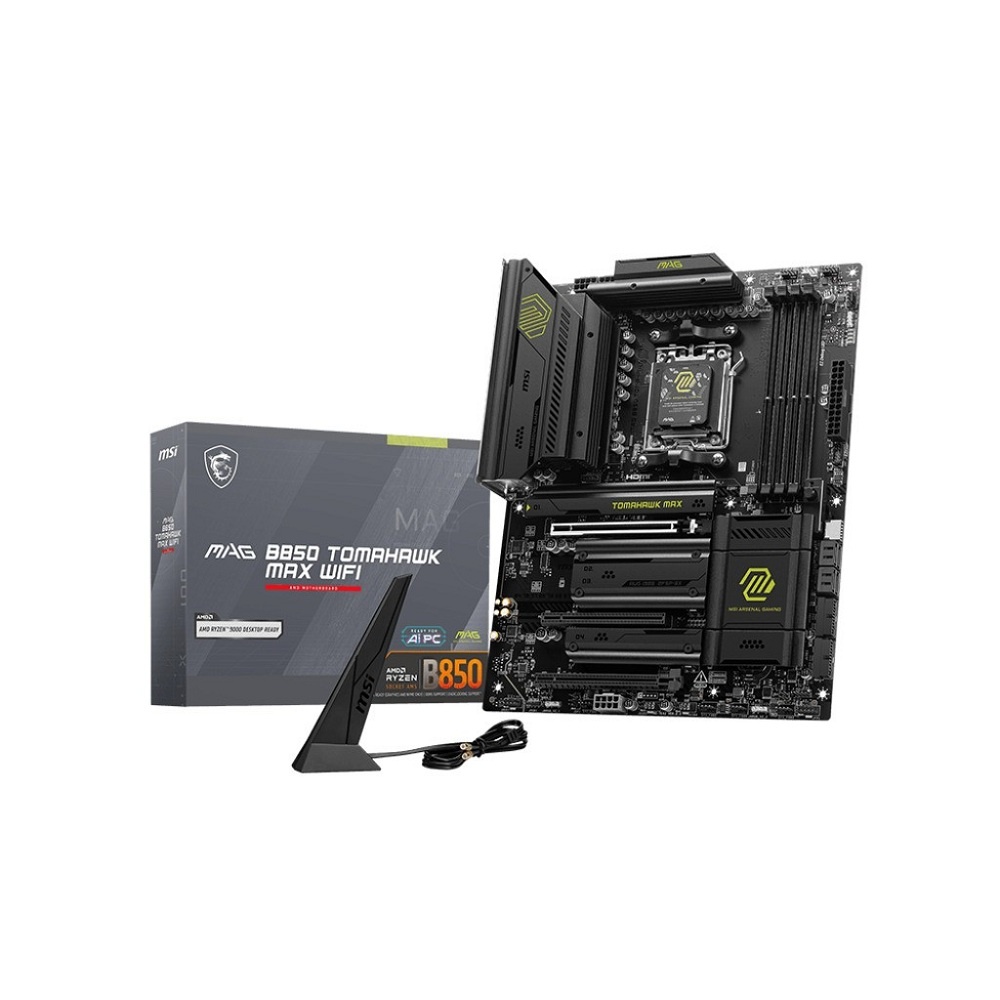

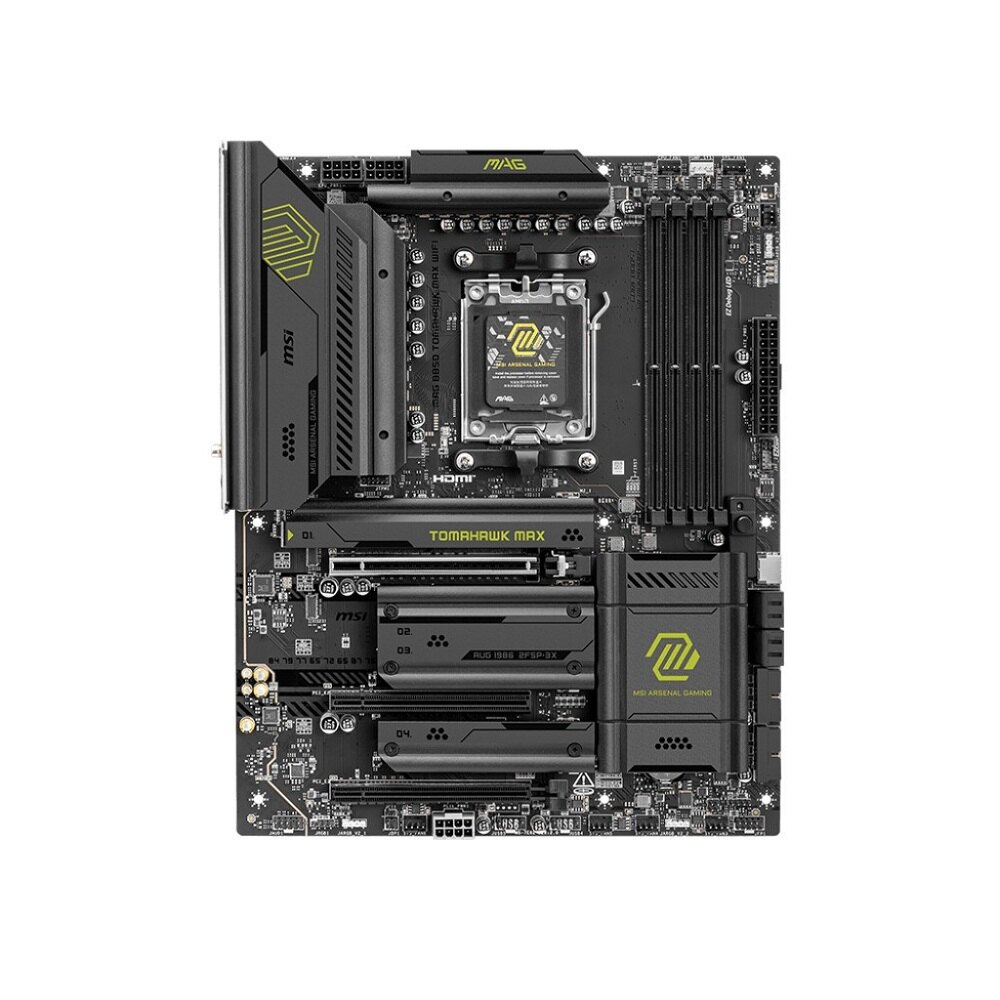

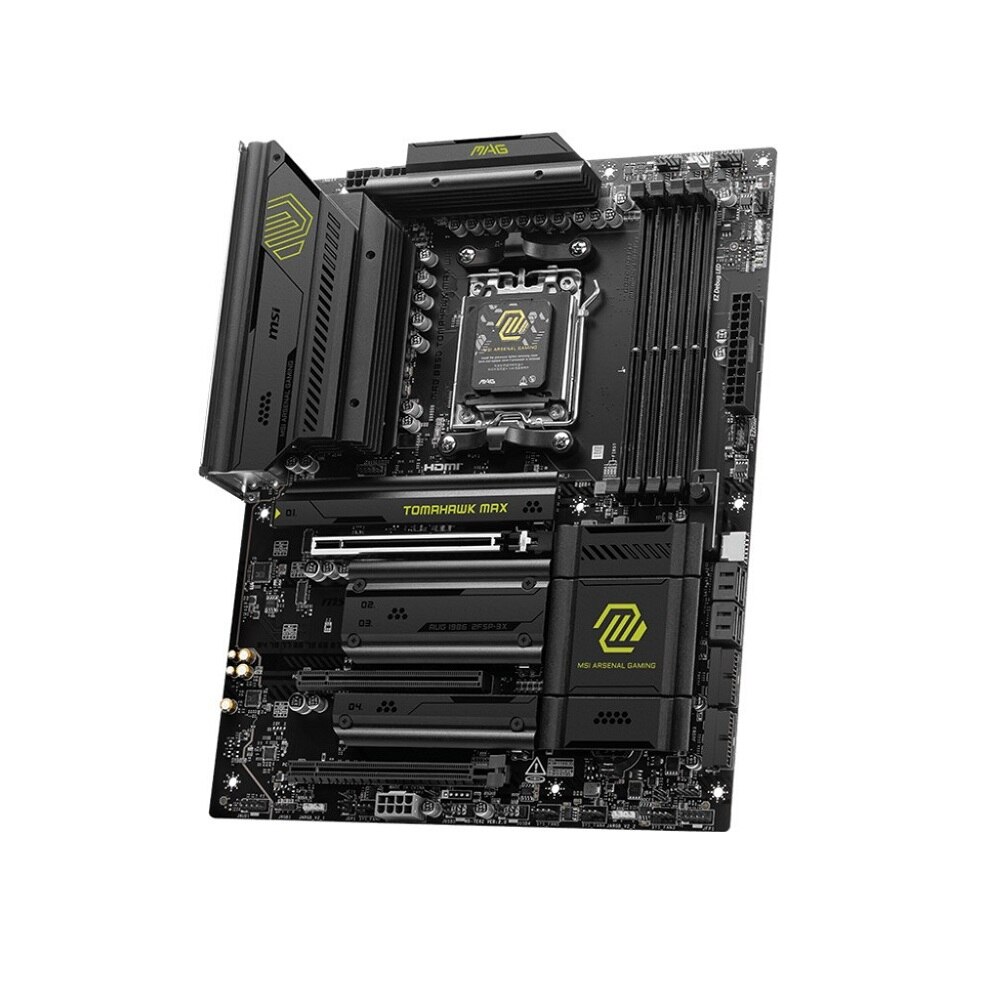

TECHNICAL SPECIFICATIONS: MSI Mag B850 Tomahawk Max WiFi ATX Motherboard
Model
MAG B850 TOMAHAWK MAX WIFI
Chipset
AMD B850 Chipset
CPU Socket
AM5
CPU Support
AMD Ryzen 9000 Series/8000 Series/8000 G Series/7000 Series
Memory Support
4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 8400 OC MHz
Storage
2 x M.2 PCIe 5.0 x 4 slot
2 x M.2 PCIe 4.0 x 4 slot
USB Ports On Board
3 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
4 x USB 2.0
LAN
1 x Realtek 8126VB 5G LAN
Audio
Realtek ALC4080 Codec
7.1 Channel USB High Performance Audio

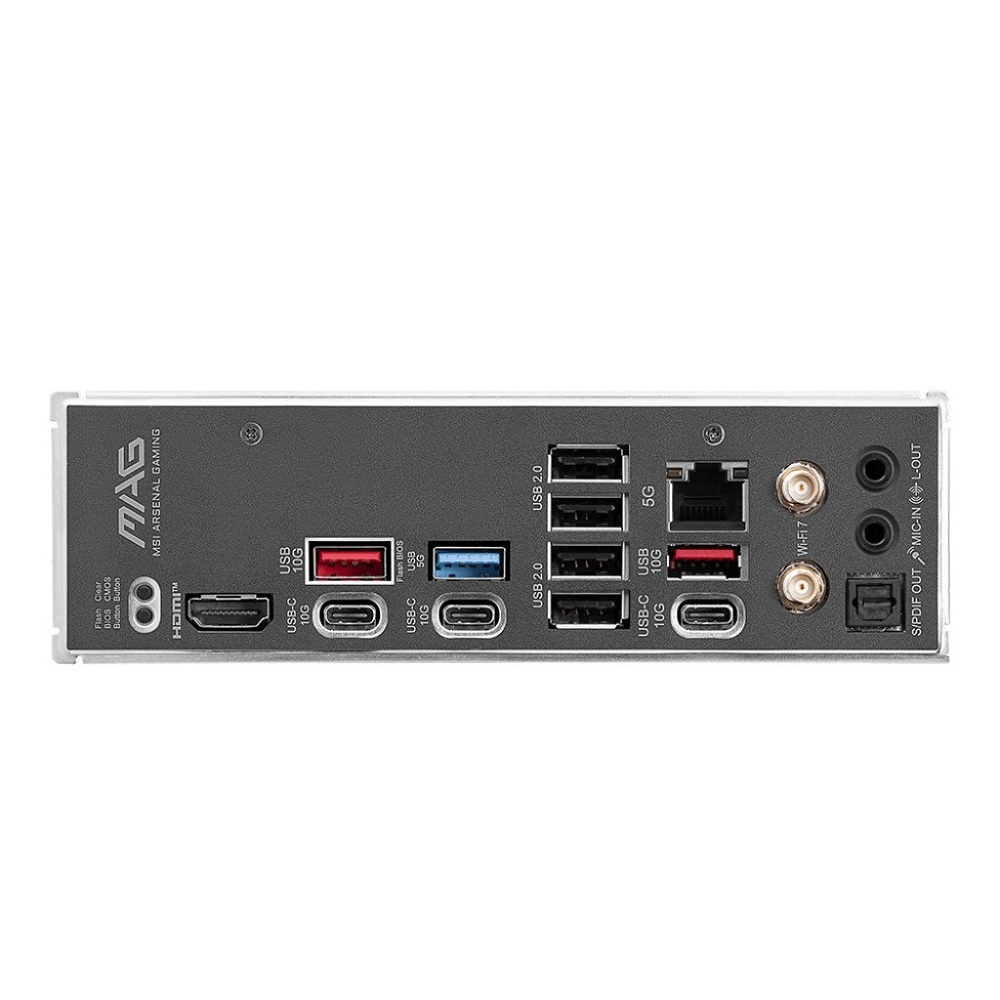

Back Panel Connectors
1 x HDMI Port
3 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
4 x USB 2.0
2 x WiFi & Bluetooth Module
1 x RJ-45 LAN Port
1 x Flash BIOS Button
1 x Clear CMOS Button
1 x Opticla S/PDIF Out
1 x Mic In
1 x Audio Line Out
Internal I/O Connector
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Expansion Slot
1 x PCIe 5.0 x 16 slot
1 x PCIe 4.0 x 4 slot
1 x PCIe 3.0 x 1 slot
Built-in Bluetooth
v5.4
Built-in WiFi
WiFi 7
Lighting
EZ Memory Detection LED
EZ Debug LED
OS Support
Windows 11 64-bit
Additional Information: MSI Mag B850 Tomahawk Max WiFi ATX Motherboard
Product Type
Motherboards
EAN, GTIN, UPC
4711377290623
Brand
MSI
CPU Platform
AMD
CPU Socket
AM5
Processor Generation
Ryzen 7000, Ryzen 8000, Ryzen 8000G, Ryzen 9000
Processor Series
Ryzen 5, Ryzen 7, Ryzen 9
FORM FACTOR
ATX
MEMORY TYPE
DDR5
Motherboard Chipset
AMD B850
MAXIMUM MEMORY
256 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
₹39,999Original price was: ₹39,999.₹24,499Current price is: ₹24,499.
You Save: ₹15500.00 (39%)
In stock
