4 x DDR5, Maximum Memory Capacity 256GB, Max Memory Support 8200+ OC MHz
Storage
2 x M.2 PCIe 5.0 x 4 slot
3 x M.2 PCIe 4.0 x 4 slot
1 x M.2 PCIe 4.0 x 2 slot
4 x SATA 6Gb
USB Ports On Board
2 x USB 10Gbps Type-C Port
3 x USB 10Gbps Type-A Port
3 x USB 5Gbps Type-A Port
LAN
1 x Realtek 8126 5G LAN Port
Audio
Realtek ALC897 7.1 Channel High Definition Audio

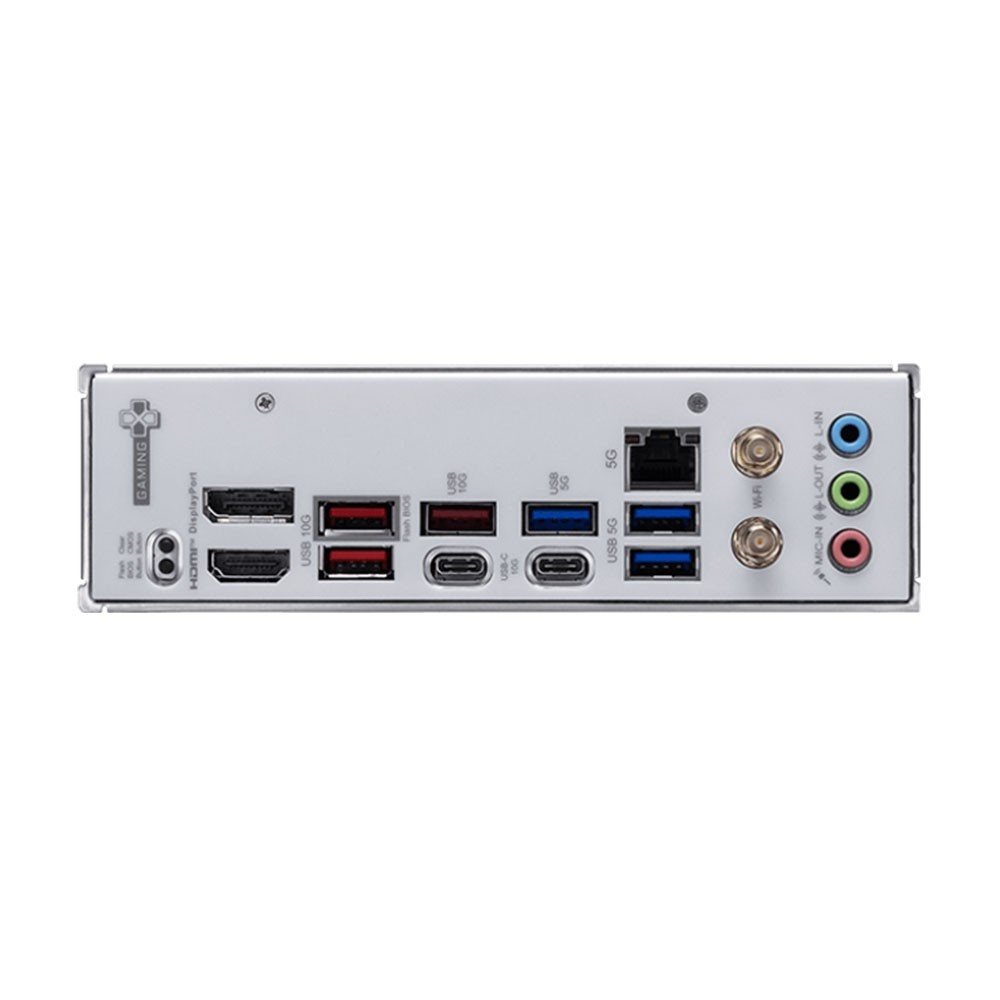

Back Panel Connectors
1 x HDMI Port
1 x DisplayPort
2 x USB 10Gbps Type-C Port
3 x USB 10Gbps Type-A Port
3 x USB 5Gbps Type-A Port
1 x RJ-45 LAN Port
2 x WiFi/Bluetooth Antenna Connector
1 x Flash BIOS Button
1 x Clear CMOS Button
1 x Mic In
1 x Audio Line Out
1 x Audio Line Out
Internal I/O Connector
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Expansion Slot
2 x PCIe 4.0 x 16 slot
1 x PCIe 4.0 x 8 slot
1 x PCIe 4.0 x 4 slot
Built-in Bluetooth
Bluetooth 5.4
Built-in WiFi
WiFi 7
Lighting
NA
OS Support
Windows 11 64-bit

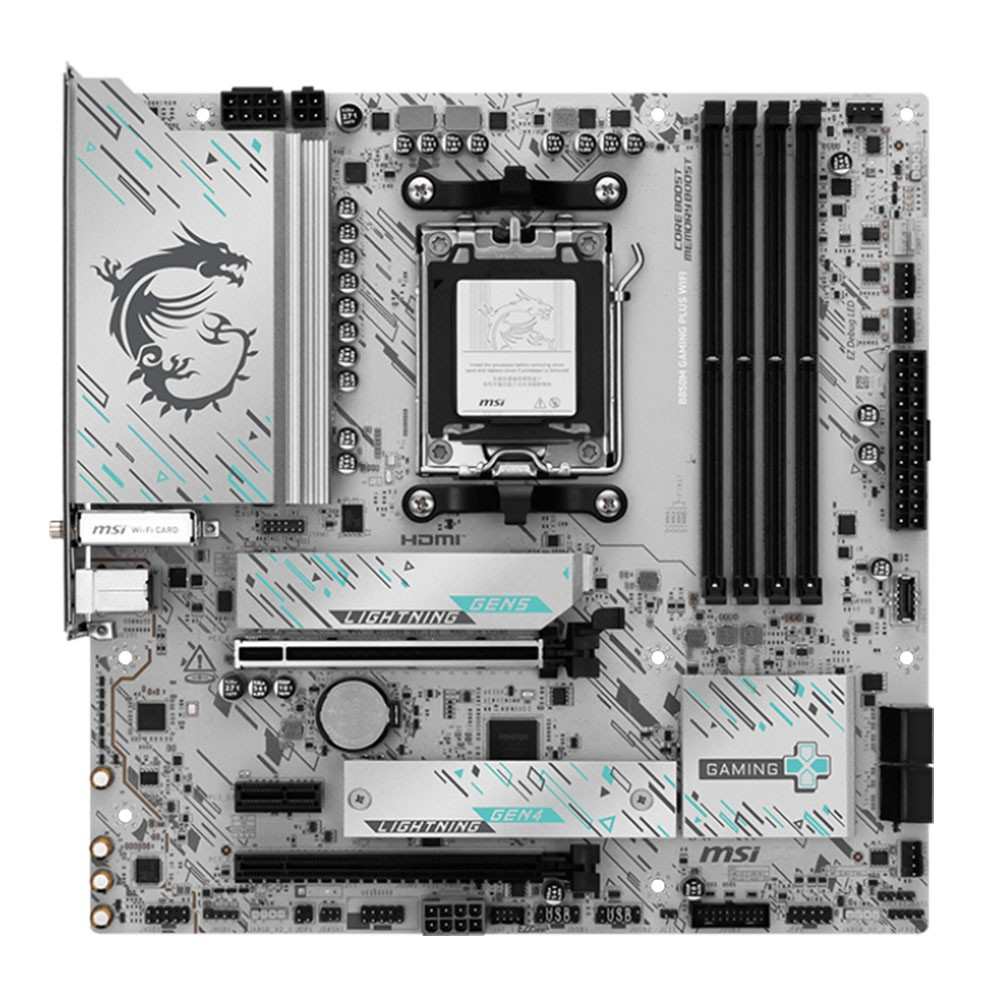

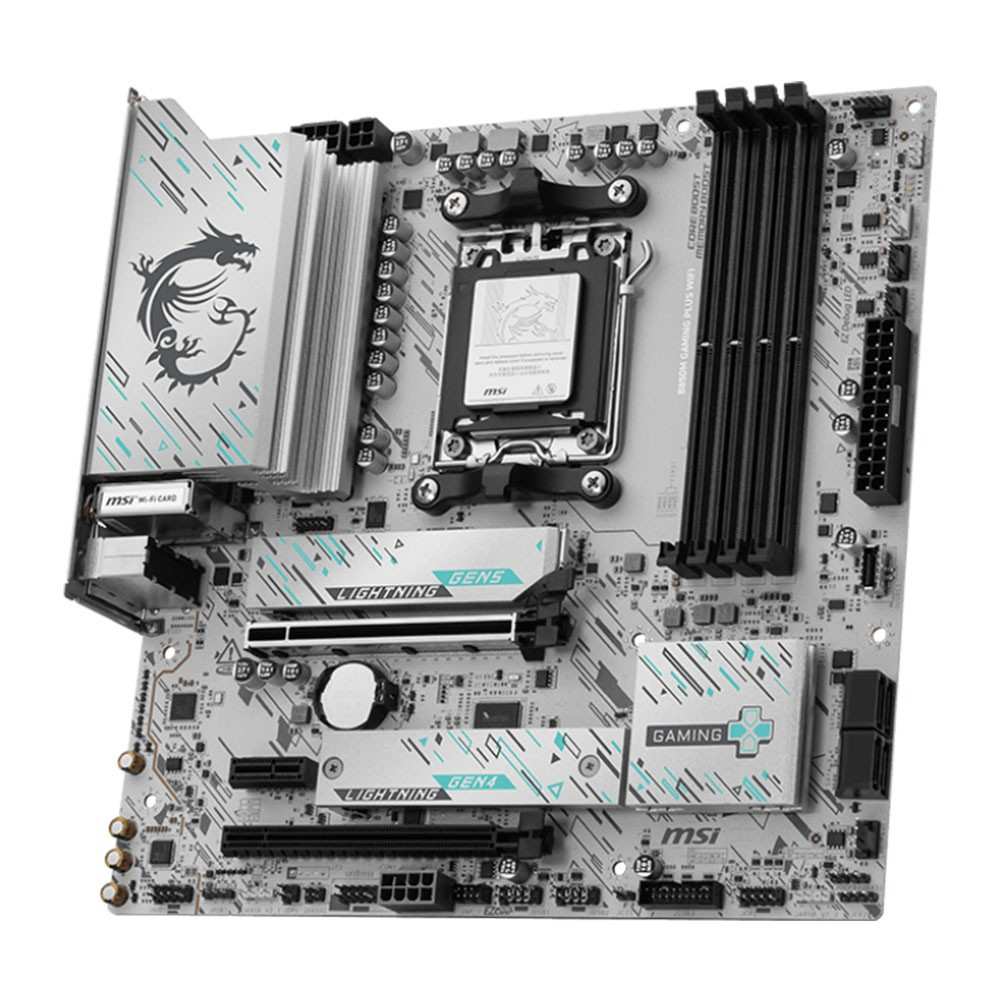

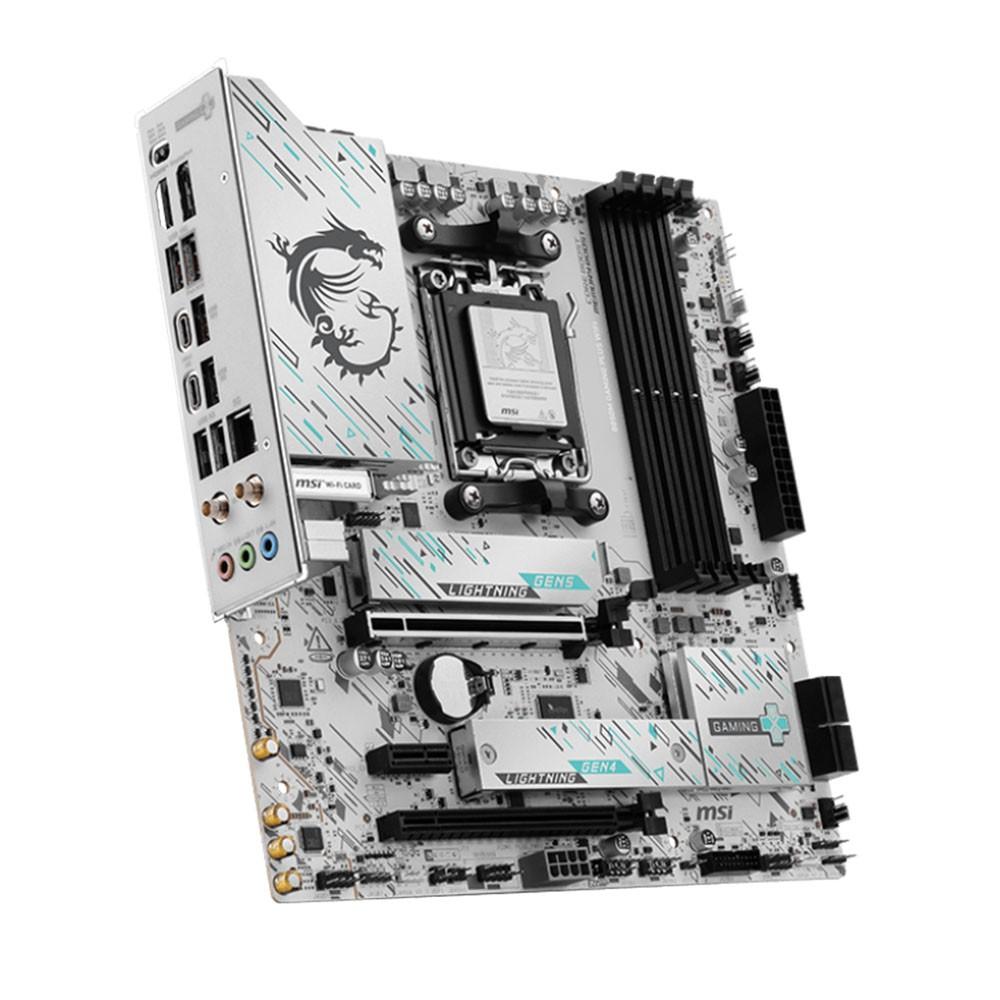

Specification: MSI B850M Gaming Plus WiFi Micro ATX DDR5 Motherboard
