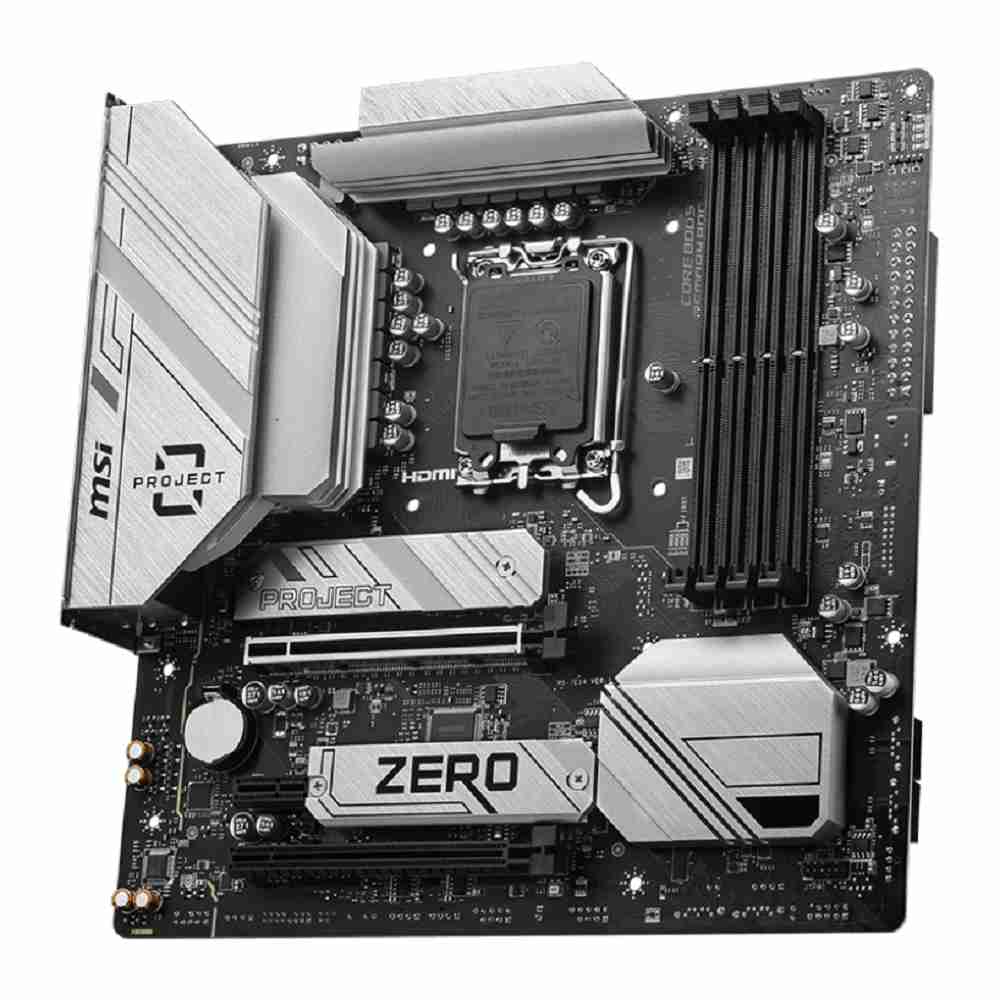

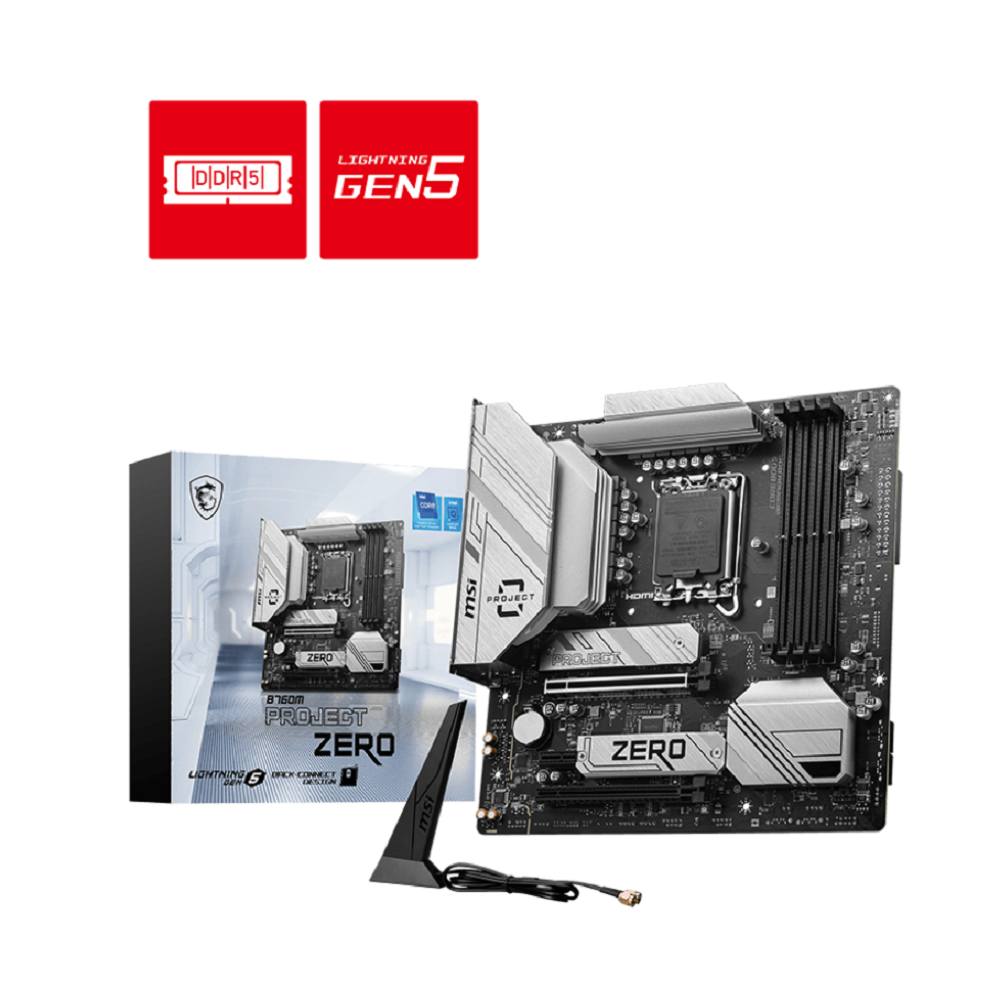

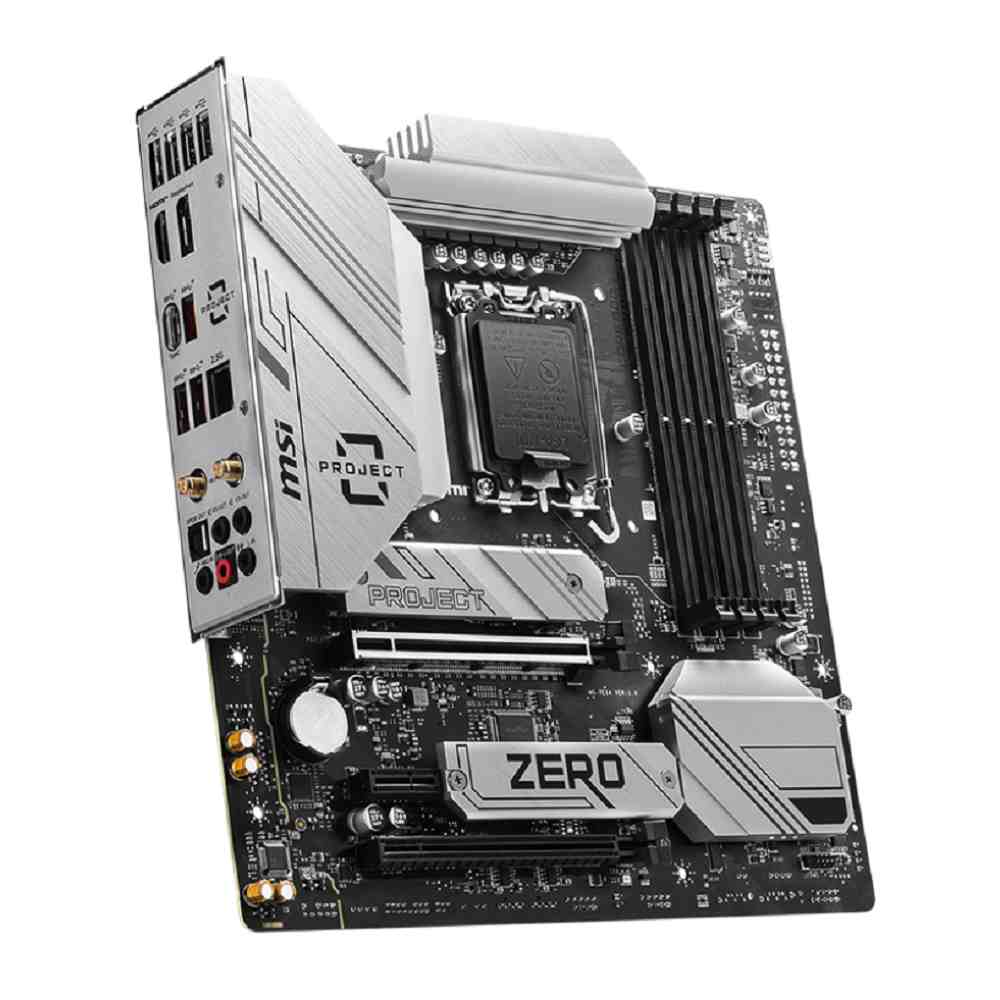

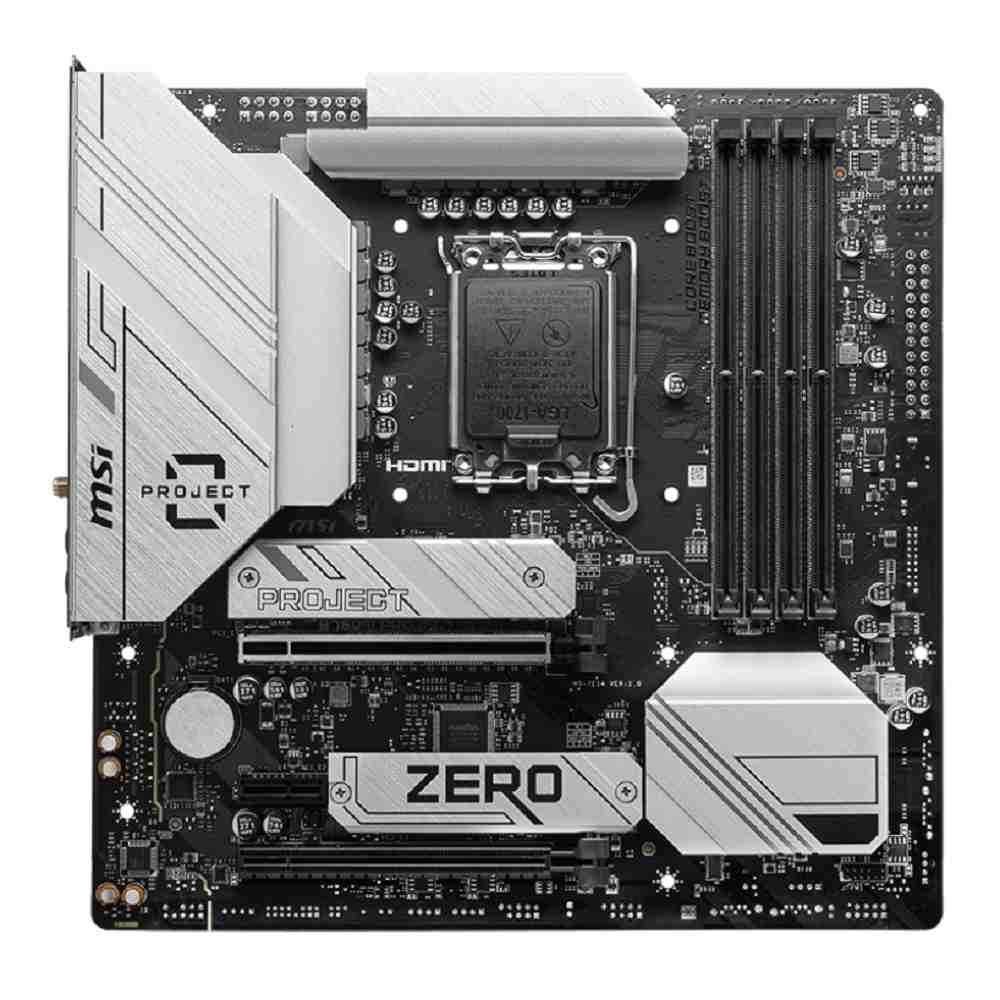

MSI B760M Project Zero Micro ATX DDR5 Motherboard
Original price was: ₹35,999.₹24,499Current price is: ₹24,499.
(incl. all taxes)
- Micro ATX Form Factor
- LGA 1700 CPU Socket
- INTEL B760 Motherboard Chipset
- Supports DDR5 Up to 192GB Memory
- 2.5G LAN & INTEL Wi-Fi 6E Network Solution
About MSI B760M Project Zero Micro ATX DDR5 Motherboard
MSI B760M Project Zero is a Micro ATX DDR5 Motherboard that comes with a back connect design for proper cable management. MSI PRO B760M is feature loaded which provides an immersive working experience. It’s an ideal motherboard for those who watch about effectiveness and productivity.
It’s compatible with Intel 12th, 13th, and 14th Generation processors with Intel LGA 1700 CPU Socket and B760 Chipset. It supports DDR5 7800 MHz( OC) speed with a RAM capacity of over 192 GB. HDMI2.1 and DP1.4 anchorages are equipped with this DDR5 motherboard to bring you a stylish graphical experience. Also, the USB harborage ensures fast data transmission, while the Realtek2.5 Gbps LAN offers perfect wireless connectivity.
FEATURES:
Desktop Processor – Supports the latest 12th, 13th, and 14th Generation Intel Pentium Gold and Celeron desktop Processors with Intel 1700 CPU Socket & Intel B760 Motherboard Chipset.
RAM/ Memory – Supports DDR5 Memory, Dual Channel DDR5 7800 + MHz( OC), Supports up to 192 GB RAM/ memory
Enhanced Power Design – Designed with 12 + 1 Duet Rail Power System sustaining heavy CPU loads. The 8-pin CPU power connectors give a stable power supply to the CPU and enhance Core Boost and Memory Boost.
Lightning Fast Game experience – The PCIe5.0 niche, Lightning Gen 4 x4M.2, and USB3.2 Gen 2 support lightning-fast data transmission rate.
Premium Thermal result – Extended Heatsink Design, MOSFET thermal pads, and M.2 Shield Frozr boost high performance and help with non-stop gaming and work.
Audio Boost – Reward your ears with 7.1-channel high-performance Audio sound quality for the most immersive gaming experience
High- Quality PCB- 6- high-quality PCB made by 2oz thickened copper material for power integrity
TECHNICAL SPECIFICATIONS: MSI B760M Project Zero Micro ATX DDR5 Motherboard
| Model | B760M PROJECT ZERO |
| Processor | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| CPU Socket | LGA1700 |
| Chipset | INTEL B760 |
| Memory | 4 x DDR5, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Onboard Graphics | 1 x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G |
| Audio | Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output |
| USB | 4 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 2 x USB 3.2 Gen1 Type A (Front) 3 x USB 3.2 Gen2 Type A (Rear) 1 x USB 3.2 Gen2 Type C (Front) 1 x USB 3.2 Gen2x2 Type C (Rear) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN | Realtek 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |
| LED Features | 4 x EZ Debug LED |

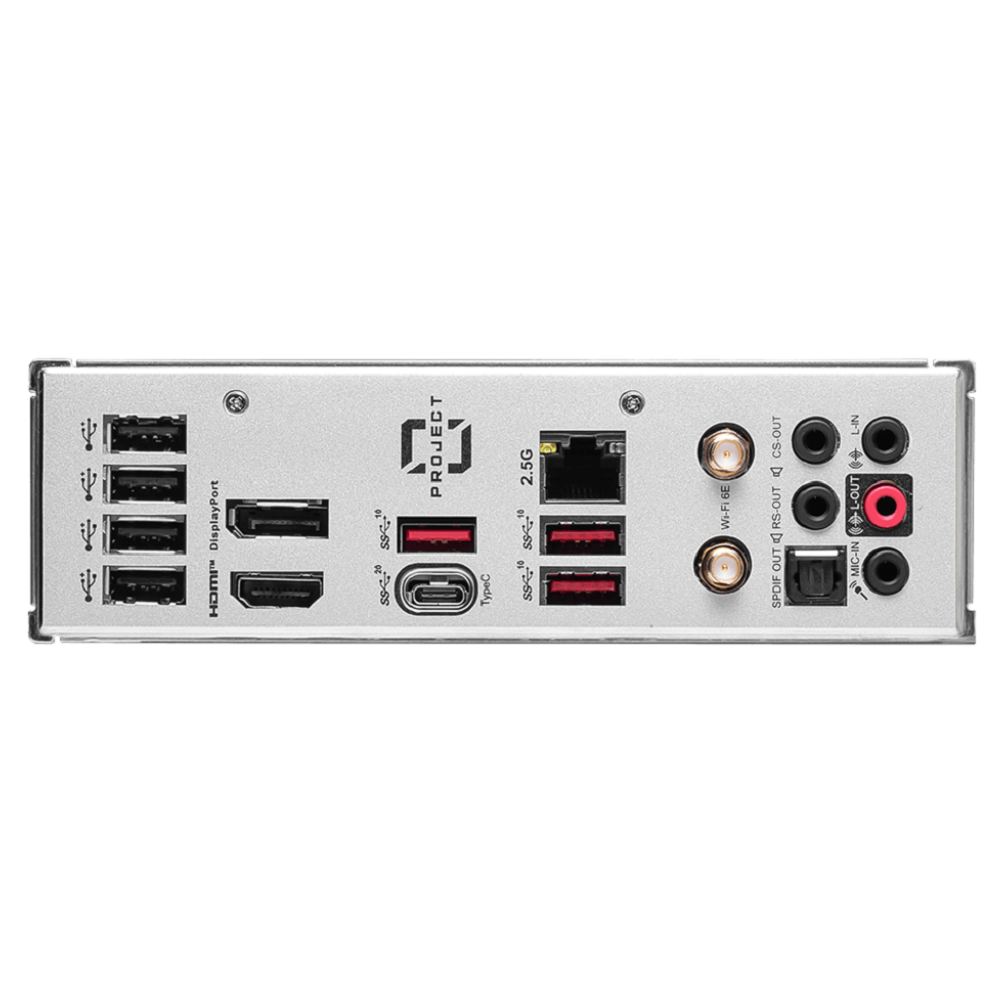

| Back Panel Ports | -USB 2.0 -DisplayPort 1.4 -USB 3.2 Gen 2 10Gbps Type-A -2.5G LAN Port -Wi-Fi / Bluetooth Antenna -HD Audio Connectors -HDMI 2.1 Port -USB 3.2 Gen 2×2 20Gbps Type-C -Optical S/PDIF OUT |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 243.84 x 243.84 (mm) |
Specification: MSI B760M Project Zero Micro ATX DDR5 Motherboard
|
Original price was: ₹35,999.₹24,499Current price is: ₹24,499.
(incl. all taxes)
You Save: ₹11500.00 (32%)
In stock
