1x USB 3.2 Gen 2 Type-C
1x USB 3.2 Gen 2 Type-A
2x USB 2.0/1.1 Type-A
4x USB 3.2 Gen 1 Type-A
LAN
1 x RJ45 Port (Realtek 2.5GbE LAN chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek Audio CODEC, 2/4/5.1/7.1-Channel

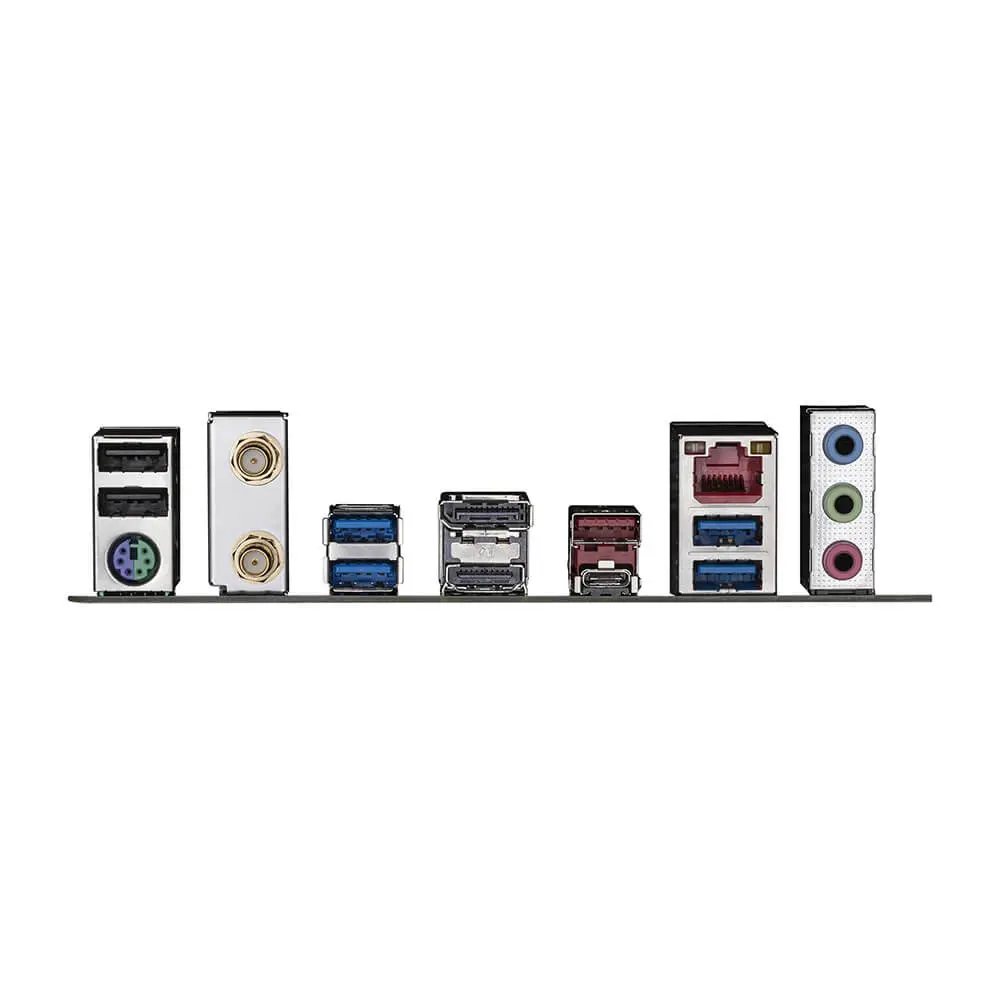

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-C port
1 x USB 3.2 Gen 2 Type-A port
4 x USB 3.2 Gen Type-A 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x Mic Jack
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x System fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Reset button
1 x Q-Flash Plus button
1 x Reset jumper
1 x Clear CMOS jumper
