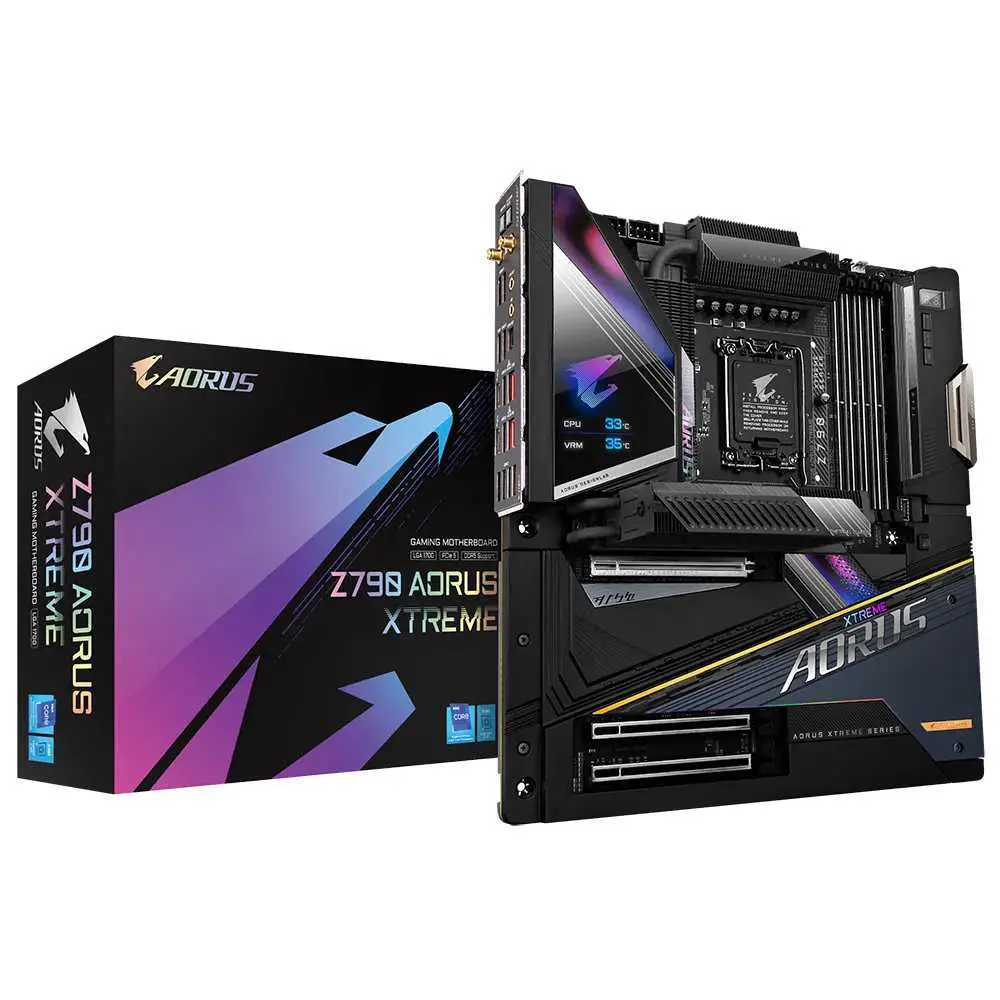

Gigabyte Z790 AORUS XTREME DDR5 E-ATX Motherboard
Original price was: ₹179,000.₹101,999Current price is: ₹101,999.
(incl. all taxes)
- E-ATX Form Factor
- LGA 1700 CPU Socket | Chipset Intel Z790 Express
- Marvell AQtion 10GbE LAN
- Intel Thunderbolt 4 onboard
- Intel Wi-Fi 6E 802.11ax with DCT
About Gigabyte Z790 AORUS XTREME DDR5 E-ATX Motherboard
Gigabyte Z790 AORUS XTREME is a DDR5 E-ATX Motherboard powered by Intel. This PC motherboard is ideal for PC gaming and graphically challenging tasks. It is an Intel motherboard, compatible with Intel LGA 1700 CPU Socket and Z790 Express Chipset.
Gigabyte Z790 AORUS XTREME supports 4 x DDR5 DIMM RAM with a maximum capacity of up to 192GB. Its PCIe 5.0 slot offers a lightning-fast data transmission rate. This Intel gaming motherboard features Intel Killer Wi-Fi 6E AX1690 for faster and uninterrupted network connections.
FEATURES:
Unparalleled Performance – As technology revolves fast, Gigabyte always tries to follow the trends. Therefore, the Gigabyte provides advanced features and the newest technologies for its users.
This Intel-powered Gigabyte desktop motherboard has advanced power solutions, upgraded storage standards, and outstanding connectivity. Therefore, this Gigabyte motherboard offers efficient performance in gaming and other demanding tasks.
Outstanding Thermal Design – With the innovative and improved thermal design, the Gigabyte Z790 AORUS XTREME delivers an unmatchable performance. Optimized thermal efficiency ensures the best SSD stability and maintains low temperature. Thus, it performs amazingly in load application and gaming performance.
Next-Generation Connectivity – This DDR5 Gigabyte motherboard features next-generation connectivity to offer ultimate flexibility. The fast connectivity delivers a lightning-fast data transfer speed, WiFi connectivity, and storage.
Ultra-durable – It is an ultra-durable motherboard that offers a high-quality manufacturing process. This DDR5 computer mother uses the best quality components and reinforcement. Thus, each slot of this motherboard is durable and solid.
Feature Highlights:
- Intel LGA 1700 Socket & Z790 Express Chipset – Supports Intel13th and 12th Generation Intel Core, Pentium Gold and Celeron Desktop Processors
- Unparalleled Performance – Direct 20+1+2 Phases Digital VRM Solution for better power regulation & a stable power supply.
- Dual Channel DDR5 – 4 x 4 x DDR5 DIMM sockets supporting up to 192 GB, Support for Extreme Memory Profile (XMP) memory modules
- Next Generation Storage – PCIe 5.0 x 4 and 4 x PCIe 4.0 x 4 M.2 Connectors for lightning-fast data transfer.
- Fast Networks – Marvell AQtion AQC107 10GbE LAN chip & Intel Thunderbolt 4 onboard for fast network connection.
TECHNICAL SPECIFICATIONS: Gigabyte Z790 AORUS XTREME DDR5 E-ATX Motherboard
| Model | Z790 AORUS XTREME |
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* L3 cache varies with CPU * Please refer to “CPU Support List” for more information. |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor+Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) * Support for DisplayPort 1.4 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Expansion Slots | CPU: 1 x PCI Express x 16 slot, supporting PCIe 5.0 and running at x 16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x 8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Audio | ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS Sound Unbound High Definition Audio 2-channel Support for S/PDIF Out * The line out jack and the optical S/PDIF out connector can only be used one at a time. |
| LAN | Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| Wireless Communication module | Intel Killer Wi-Fi 6E AX1690 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| USB | Chipset+Intel Thunderbolt 4 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 2 Hub: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |

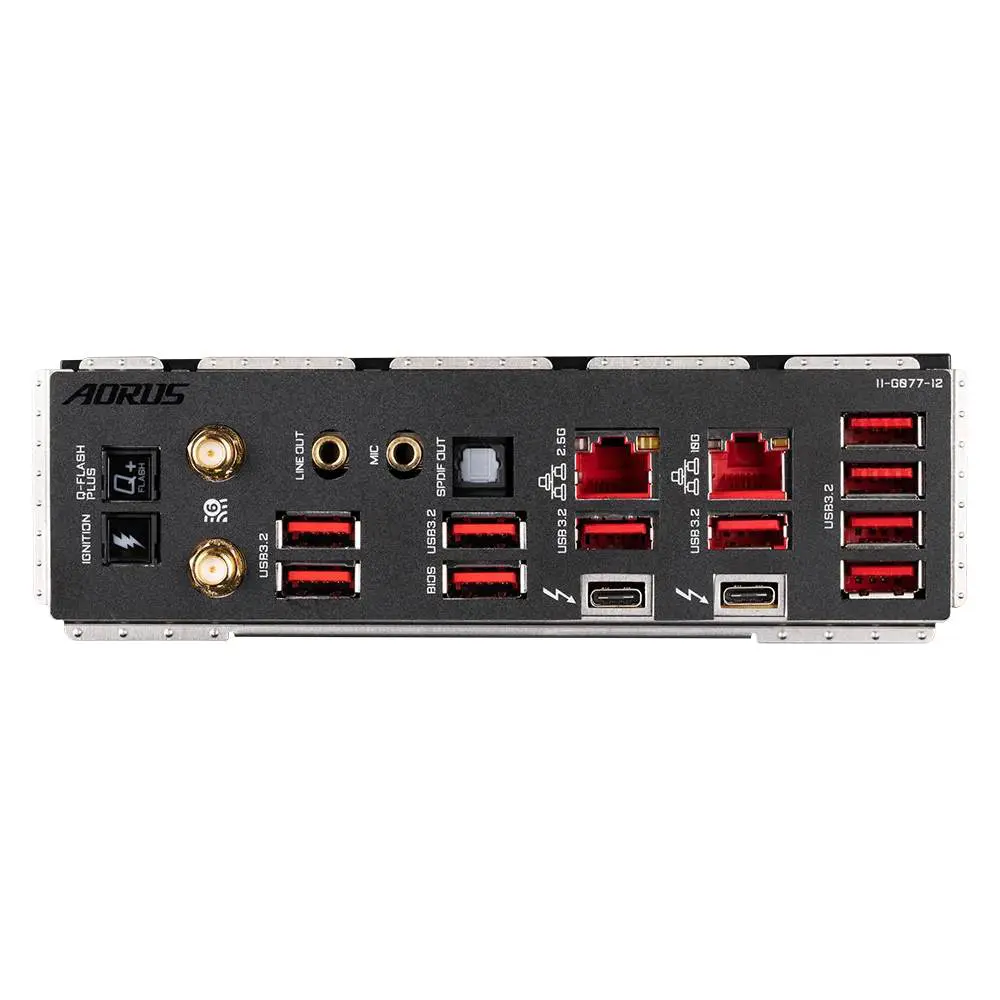

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x OC Ignition button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 1 x optical S/PDIF Out connector 2 x audio jacks * The mic in jack supports only mono microphone input |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 1 x noise detection header 2 x integrated extension cable headers for addressable and RGB LED strips 4 x SATA 6Gb/s connectors 5 x M.2 Socket 3 connectors 1 x front panel header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | E-ATX Form Factor |
| Dimensions | 30.5 x 28.5 (cm) |
Specification: Gigabyte Z790 AORUS XTREME DDR5 E-ATX Motherboard
|
Original price was: ₹179,000.₹101,999Current price is: ₹101,999.
(incl. all taxes)
