1x USB 3.2 Gen2 Type-C
2x USB 3.2 Gen2 Type-A
2x USB 2.0/1.1 Type-A
4x USB 3.2 Gen1 Type-A
LAN
1 x RJ45 Port (Realtek 5GbE LAN Chip)
Audio
2 x Audio Jacks (1 x Mic, 1 x Line Out)
Realtek ALC1220-VB CODEC, 2/4/5.1/7.1-Channel

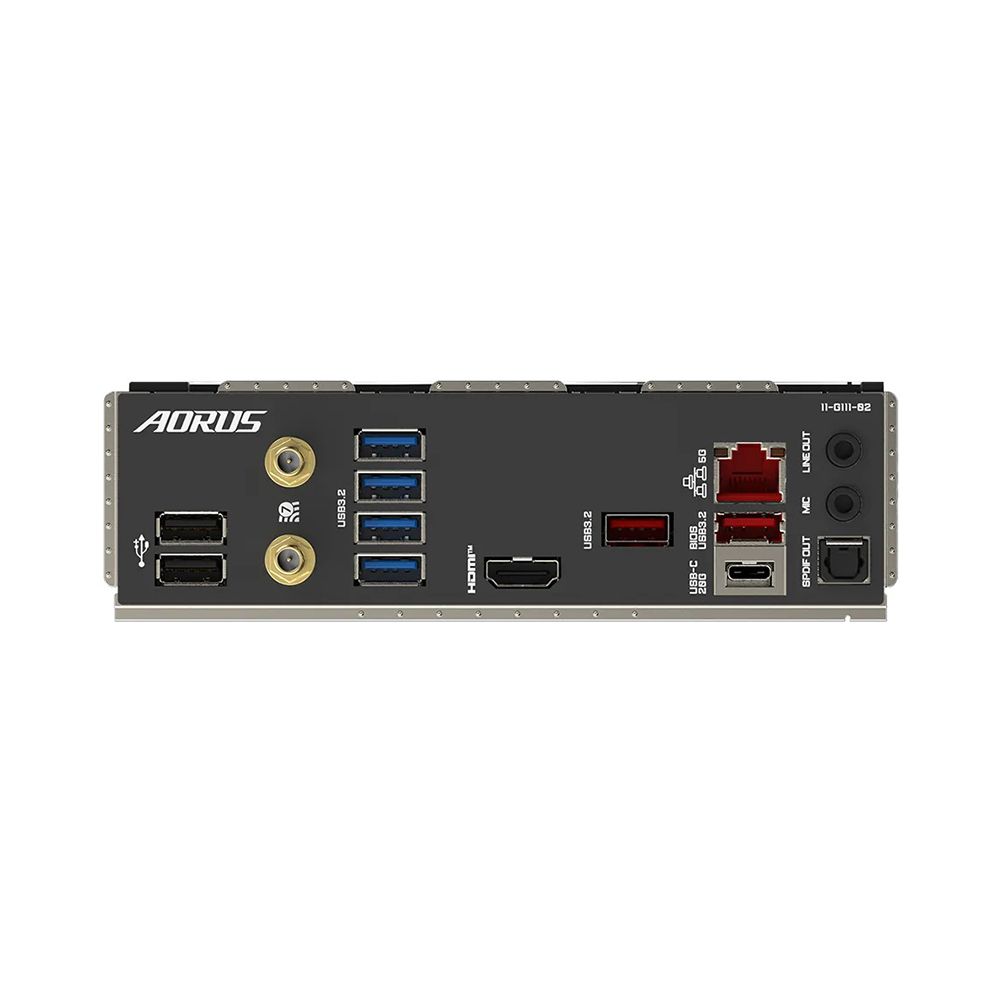

Back Panel Connectors
2 x USB 2.0/1.1 Ports
2 x SMA Antenna Connectors (2T2R)
4 x USB 3.2 Gen1 Ports
1 x HDMI Port
2 x USB 3.2 Gen2 Type-A ports
1 x USB 3.2 Gen2 Type-C port
1 x RJ-45 port
1 x Optical S/PDIF Out connector
1 x Audio Mic Jack
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB Type-C port (DisplayPort), with USB 2.0 support (Only available with the Intel HD Graphics Processors.)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
