2x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
4x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1 Type-A
LAN
1 x RJ45 Port (Realtek 5GbE LAN Chip)
Audio
2 x Audio Jacks (1 x Mic, 1 x Line Out)
Realtek ALC1220-VB CODEC, 2/4/5.1/7.1-Channel

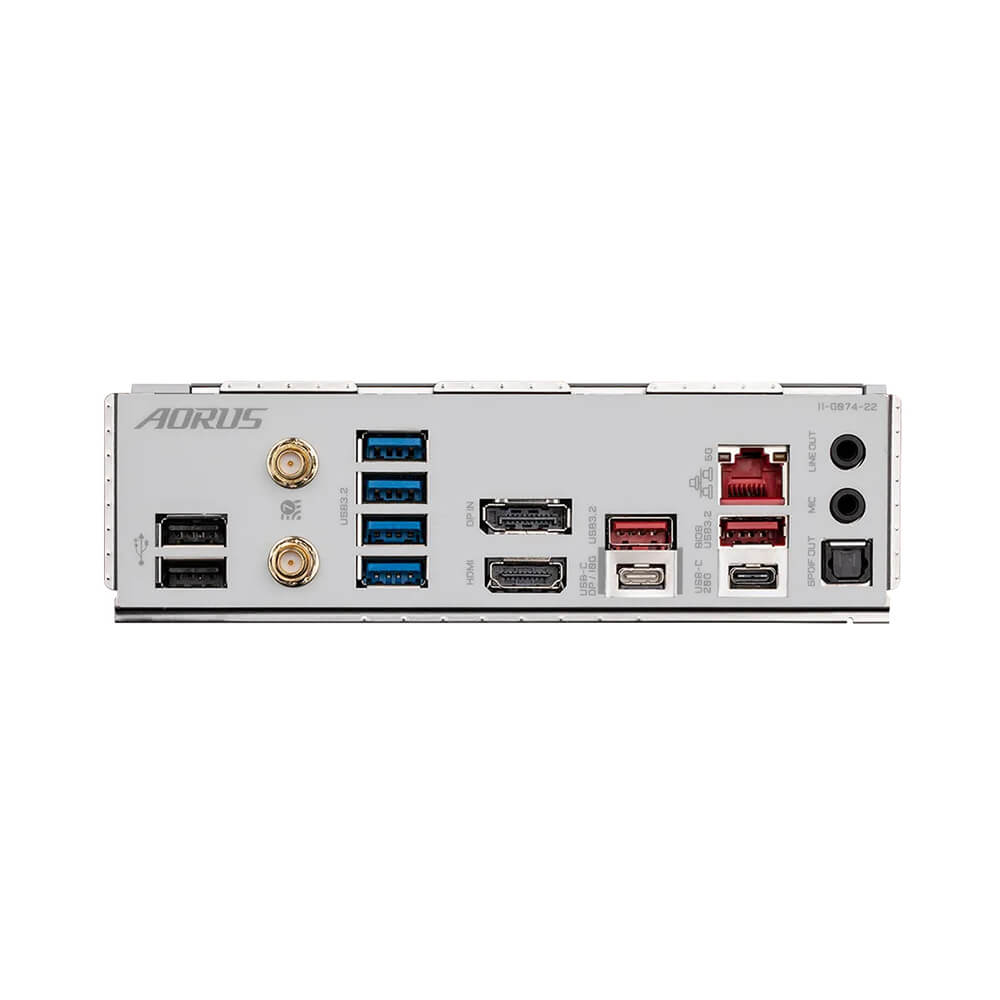

Back Panel Connectors
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors
4 x USB 3.2 Gen1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen2 Type-A ports
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-C Port (DisplayPort)
1 x RJ-45 port
1 x Optical S/PDIF Out Connector
1 x Audio Mic Jack
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x System fan headers
2 x System fan/water cooling pump headers
3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x Front panel header
1 x Front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2×2 support
1 x USB Type-C port (DisplayPort), with USB 2.0 support (Only available with the Intel HD Graphics Processors.)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x Reset button
1 x Reset jumper
2 x Temperature sensor headers
1 x Clear CMOS jumper
Expansion Slot
1x PCIe 5.0×16 slot, 1x PCIe 4.0 x 16 slot, 1 x PCIe 3.0 x16 slot
Built-in Bluetooth
Yes – v5.3
Built-in Wifi
Yes – WiFi 7
Lighting
Yes – RGB
OS Support
Windows 11 64-bit

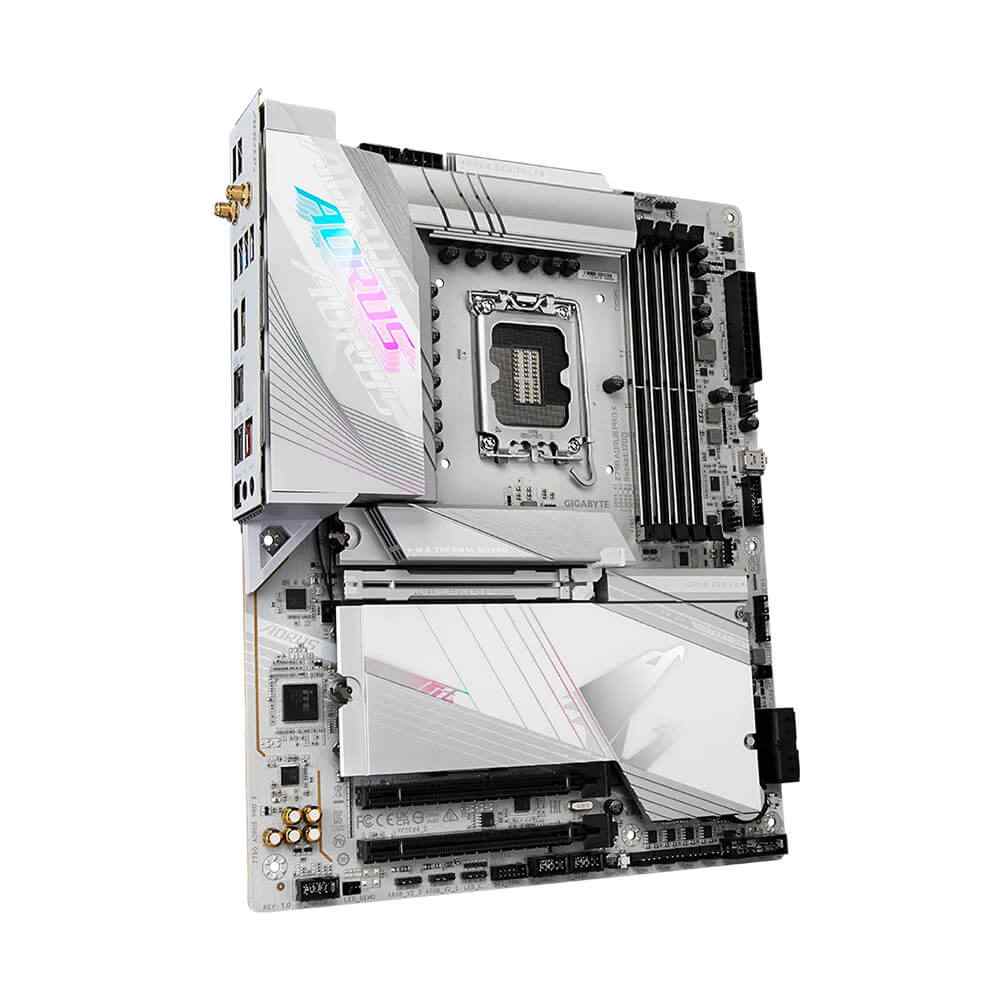

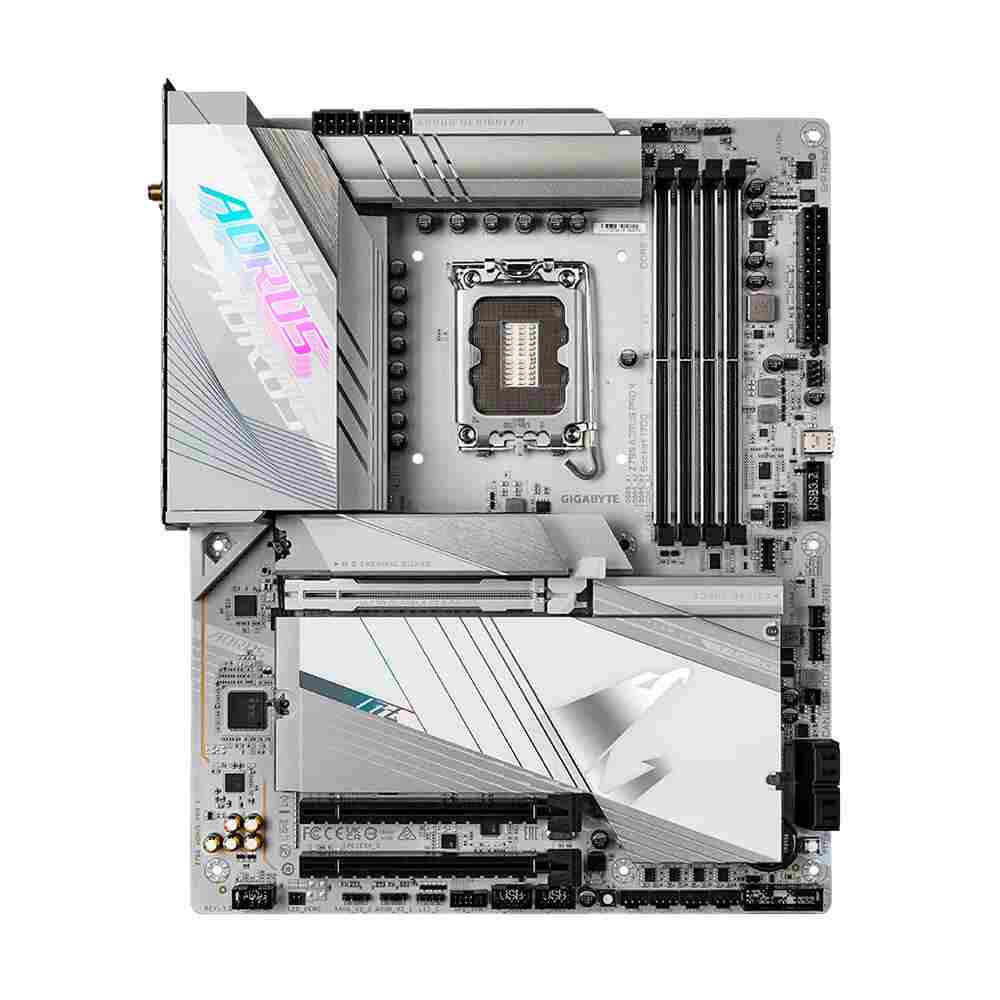

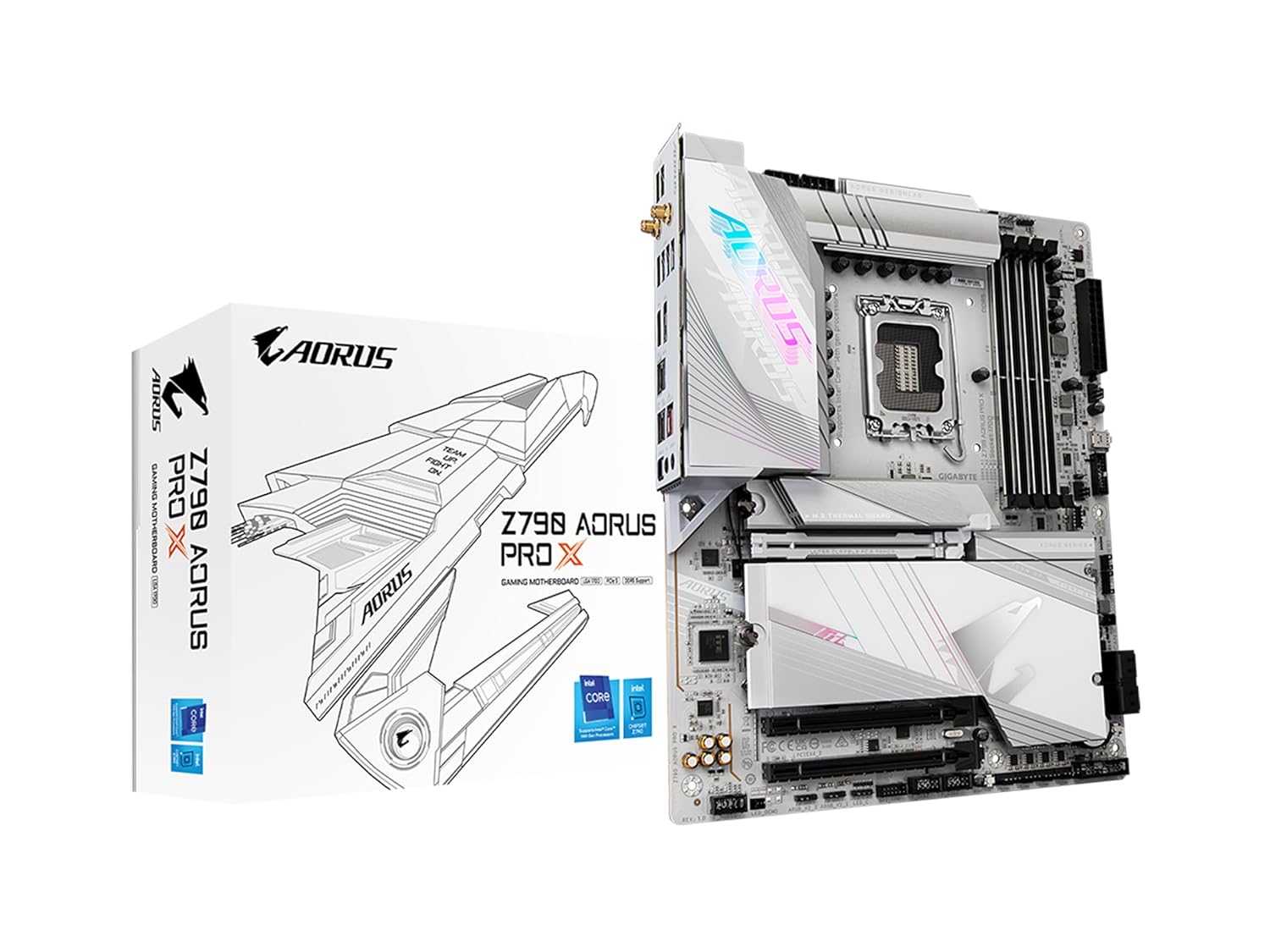

Specification: Gigabyte Z790 AORUS Pro X ATX Motherboard – Intel Z790 Express Chipset, LGA1700 Socket
