1x USB 3.2 Gen 2×2 Type-C
2x USB 3.2 Gen 2 Type-A
4x USB 2.0/1.1 Type-A
3x USB 3.2 Gen 1 Type-A
LAN
1 x RJ45 Port (Realtek 2.5GbE LAN chip)
Audio
2 x Audio Jacks (1 x Mic, 1 x Line Out)
Realtek Audio CODEC, 2/4/5.1/7.1-Channel

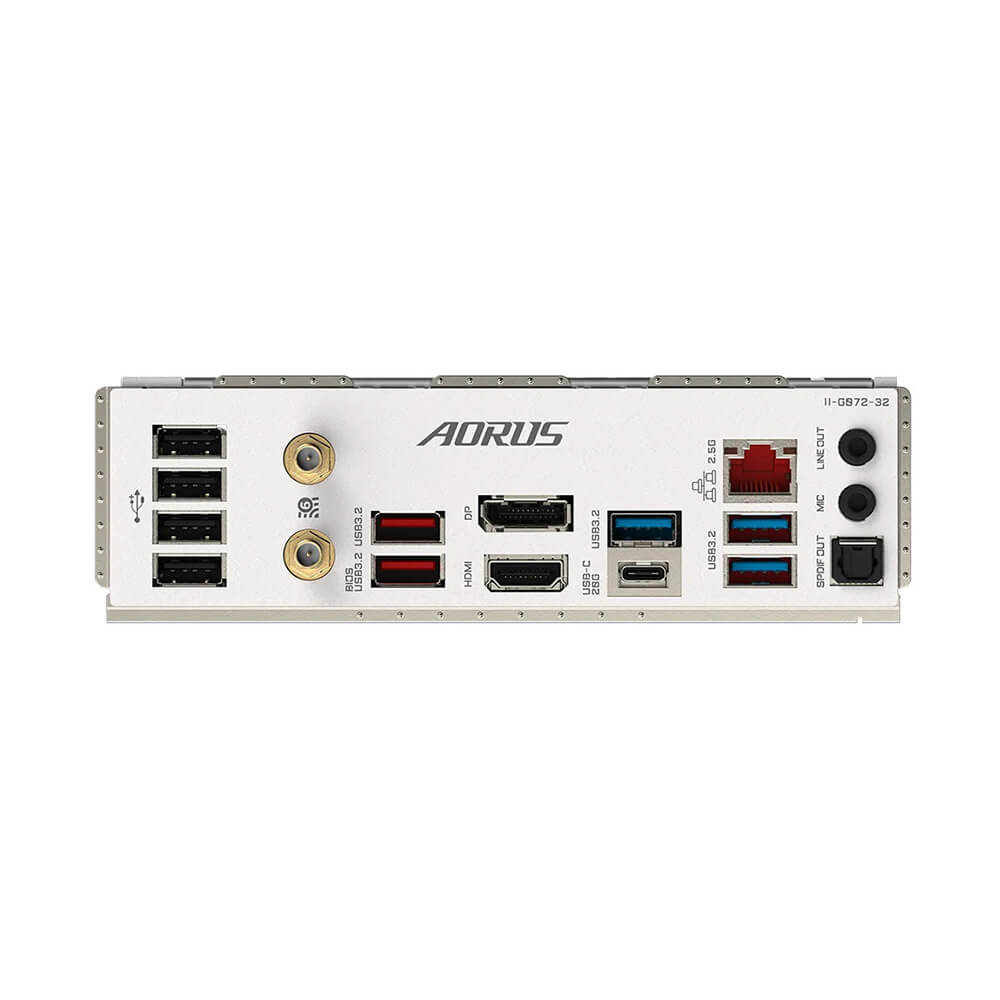

Back Panel Connectors
1x USB 3.2 Gen 2×2 Type-C Ports
2 x USB 3.2 Gen 2 Type-A ports
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x Optical S/PDIF Out connector
1 x Audio Mic Jack
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x Water cooling CPU fan header
3 x System fan headers
1 x System fan/water cooling pump header
2 x Addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x Front panel header
1 x Front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x Reset jumper
1 x Clear CMOS jump
