Intel Core 10th Gen Processors
Intel Pentium Processors and Celeron Processors
Memory Support
2 x DDR4, Maximum Memory Capacity 64 GB, Max Memory Support 2933 MHz
Storage
1 x M.2 Gen3 slot (PCIe 3.0 x4)
4 x SATA 6Gb/s ports
USB ports on Board
4 x USB 2.0/1.1 Type-A
2 x USB 3.2 Gen1 Type-A
LAN
1 x RJ45 Port (Intel GbE LAN chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek Audio CODEC, 2/4/5.1/7.1-Channel

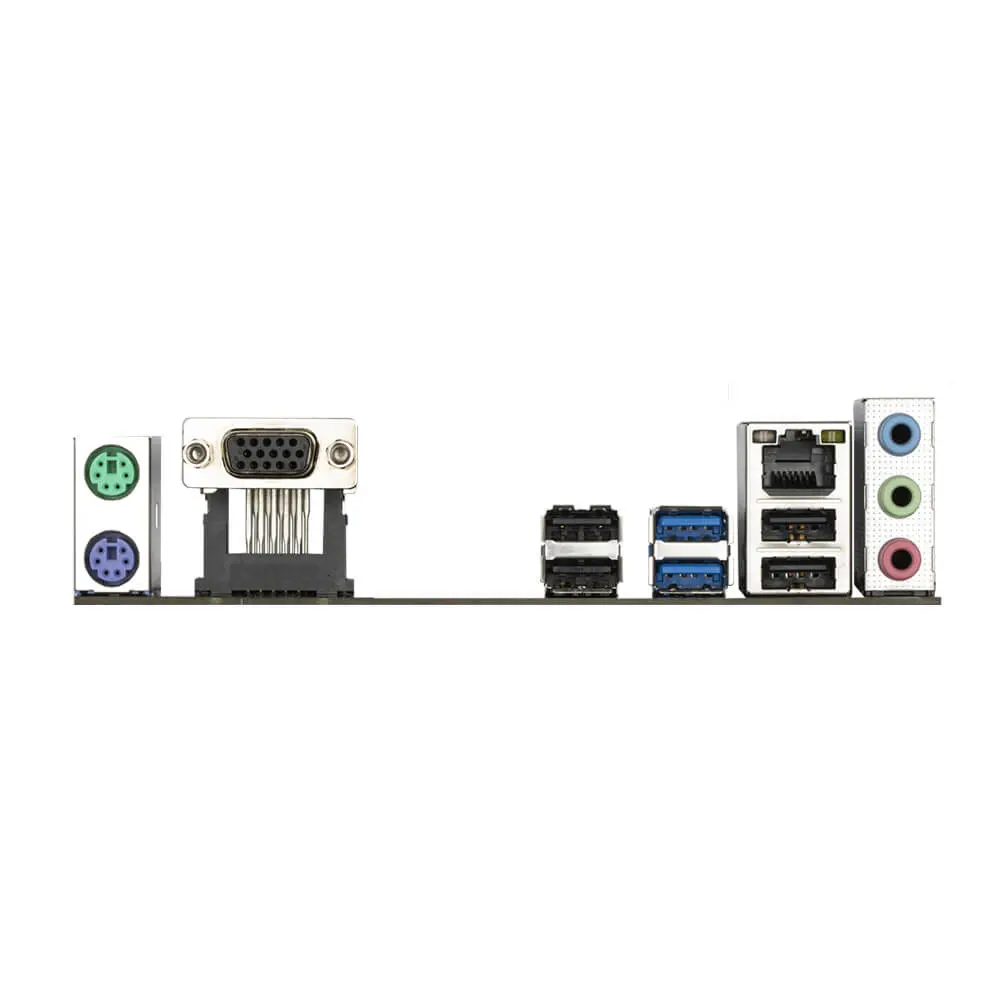

Back Panel Connectors
1 x PS/2 keyboard port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x PS/2 mouse port
1 x D-Sub Port
1 x RJ-45 port
1 x Audio Mic Jack
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x System fan header
1 x RGB LED strip header
1 x Front panel header
1 x Front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
