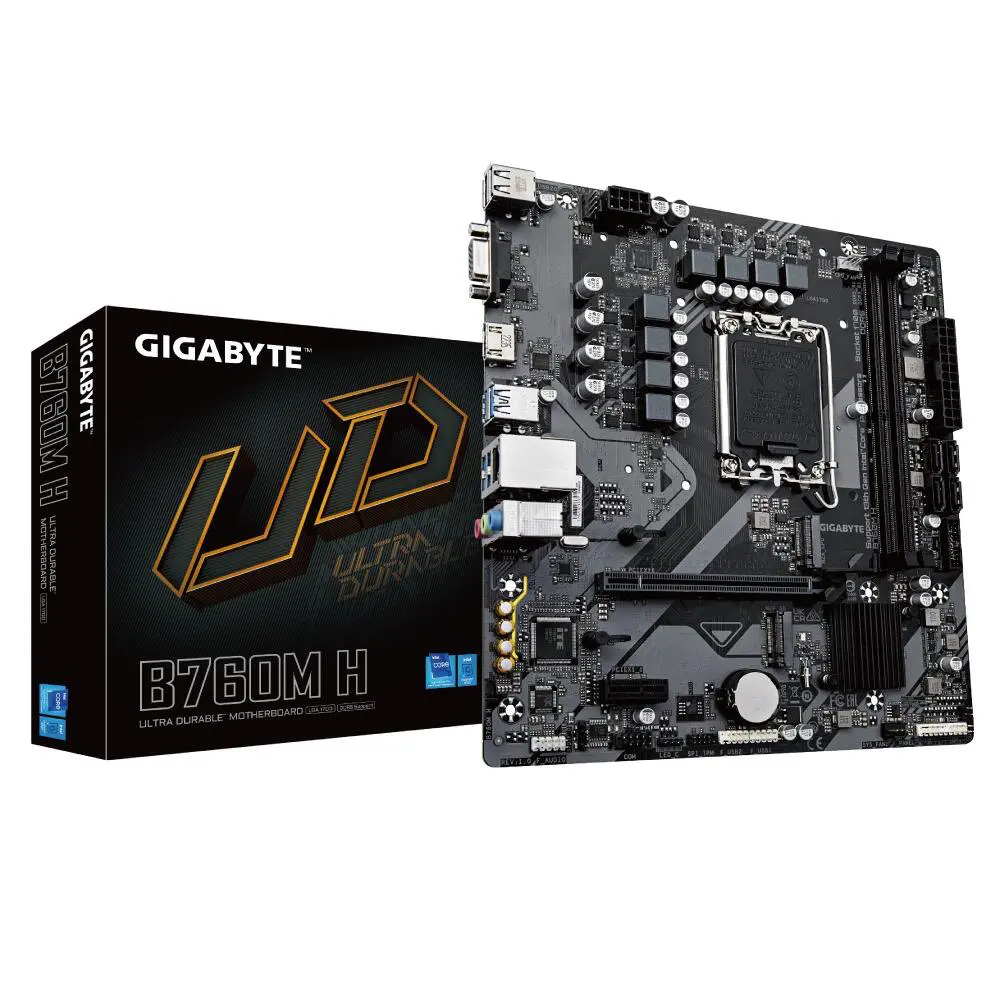

TECHNICAL SPECIFICATIONS: Gigabyte B760M H Micro ATX Motherboard (rev. 1.0)
Model
B760M H
Chipset
Intel B760 Express Chipset
CPU Socket
LGA1700
CPU Support
Intel Core 14th/ 13th/ 12th Gen Processors
Intel Pentium Gold and Celeron Processors
Memory Support
2 x DDR5, Maximum Memory Capacity 128 GB, Max Memory Support 8000 MHz (OC)
Storage
2 x M.2 Gen4 slot (PCIe 4.0 x4)
4 x SATA 6Gb/s ports
USB ports on Board
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1 Type-A
LAN
1 x RJ45 Port (Realtek 1Gbps LAN Chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek Audio CODEC 2/4/5.1/7.1-Channel
Back Panel Connectors
1 x HDMI 2.0 Port
1 x D-Sub port
1 x RJ-45 Port
4 x USB 3.2 Gen 1 Ports
2 x USB 2.0/1.1 Ports
1 x Mic
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Expansion Slot
1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot
Built-in Bluetooth
No
Built-in Wifi
No
Lighting
No
OS Support
Windows 11 64-bit, Windows 10 64-bit
Specification: Gigabyte B760M H DDR5 Micro ATX Motherboard (rev. 1.0)
