Ryzen 7000 Series, Ryzen 8000 Series and 9000 Series Processors
Memory Support
4 x DDR5, Maximum Memory Capacity 256 GB, Max Memory Support 7600 mhz+(OC)
Storage
2 x M.2 Gen4 slot (PCIe 4.0 x4)
4 x SATA 6Gb/s ports
USB ports on Board
1 x USB 3.2 Gen 1 Type-C
3 x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1 Type-A
LAN
1 x RJ45 Port (Realtek 2.5GbE LAN chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek Audio CODEC , 2/4/5.1/7.1-Channel

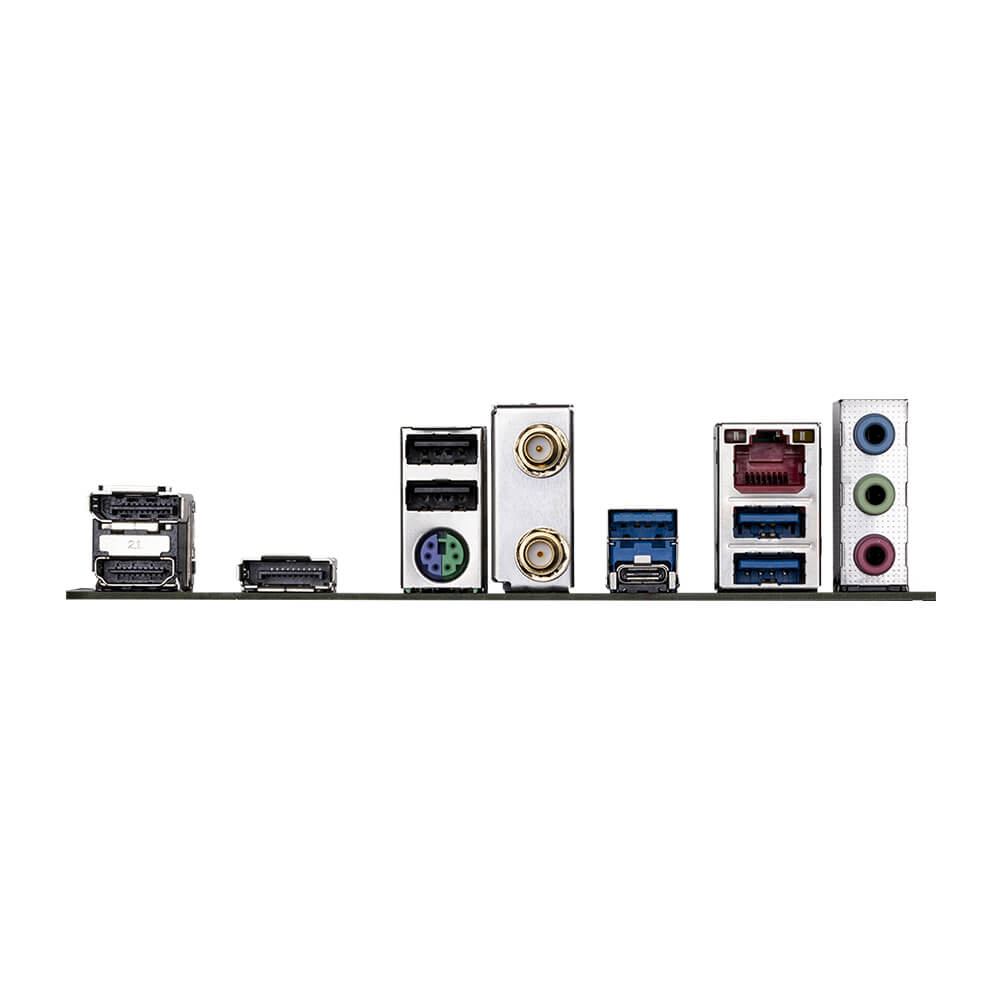

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C 3.2 Gen 1 port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x Display port
1 x HDMI Port
1 x RJ-45 port
1 x Audio Mic Jack
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x reset jumper
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
