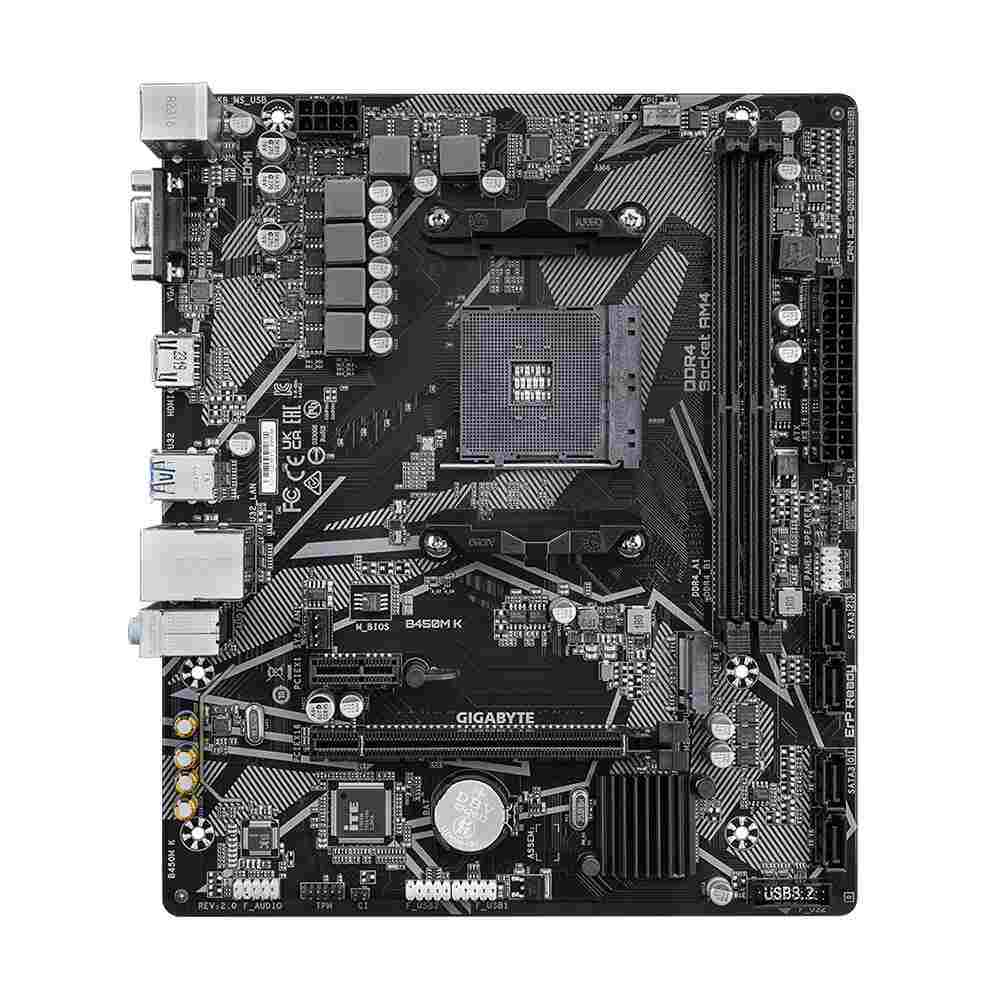

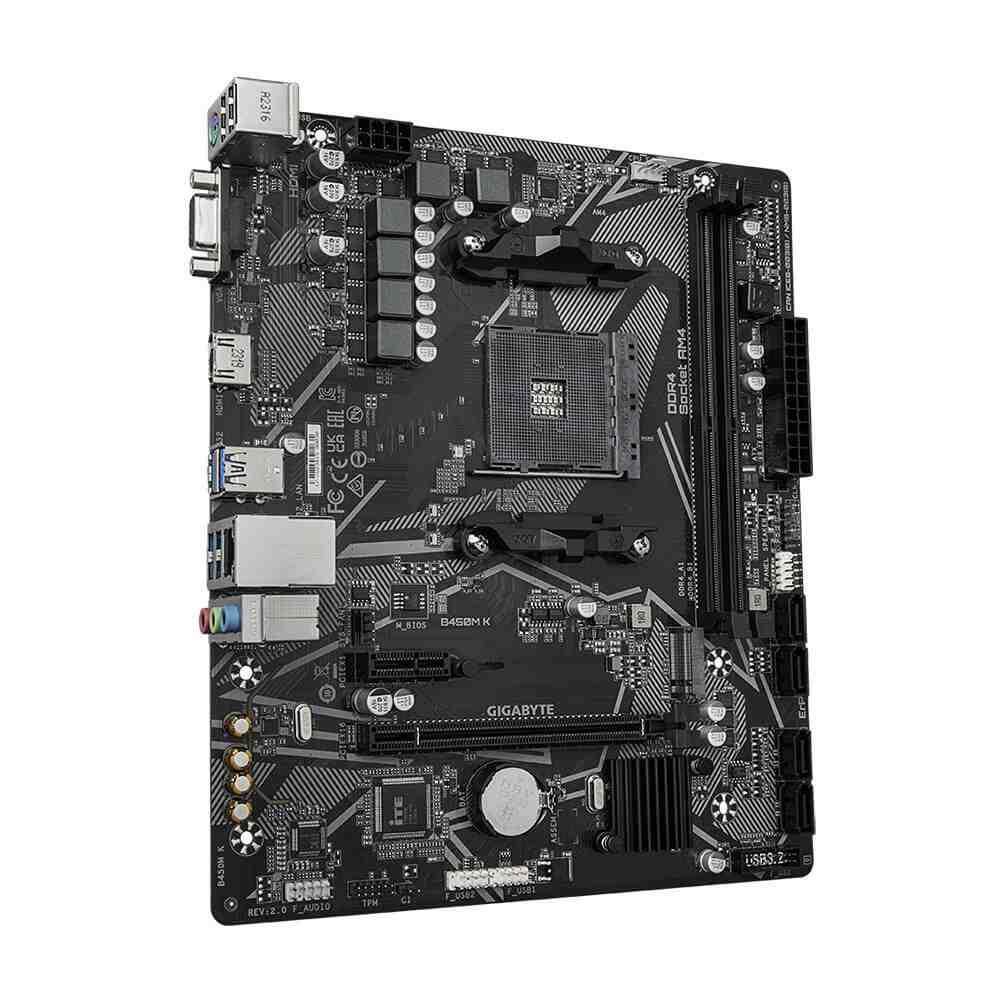

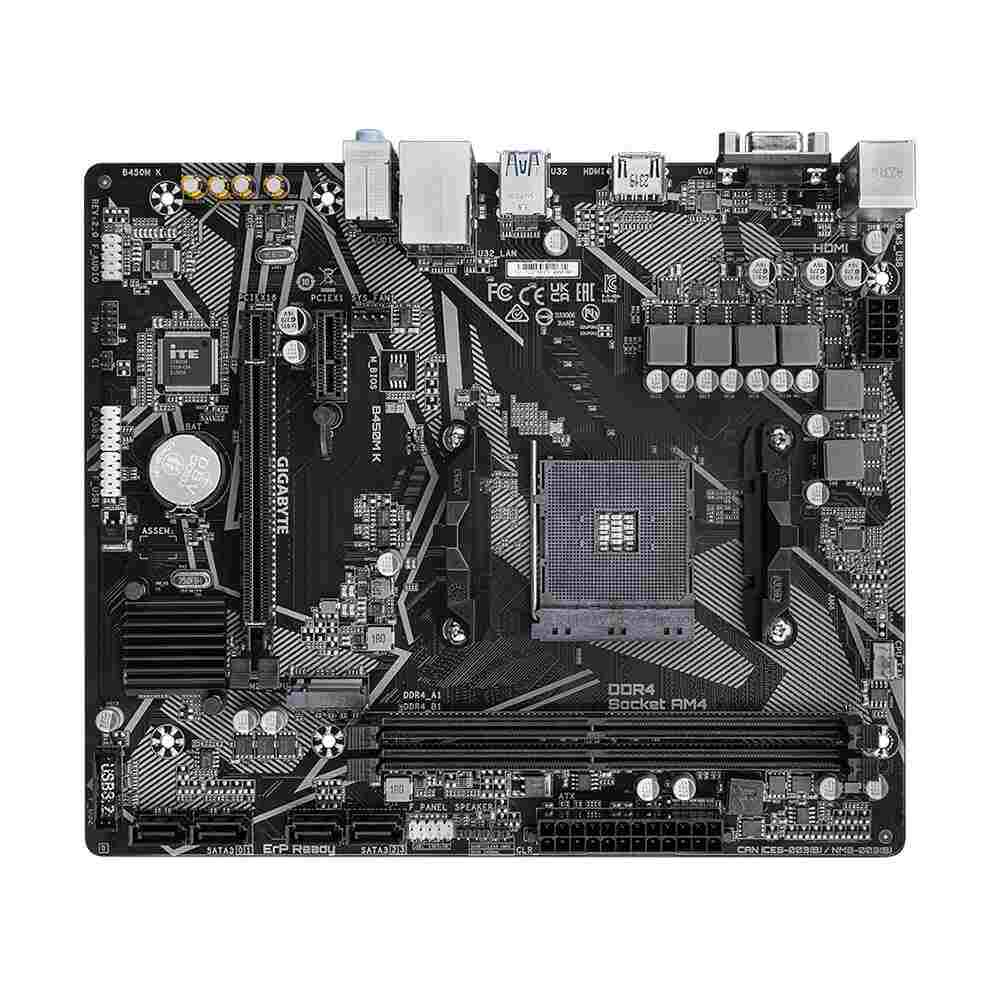

TECHNICAL SPECIFICATIONS: Gigabyte B450M K Micro ATX Motherboard (rev. 2.0)
Model
B450M K
Chipset
AMD B450 Chipset
CPU Socket
AMD AM4
CPU Support
Ryzen 5000 & 5000 G-Series CPUs, Ryzen 4000 G-Series CPUs, 3rd Gen Ryzen CPUs, 2nd Gen & 2nd Gen with Radeon Vega Graphics CPUs, 1st Gen & 1st Gen with Radeon Vega Graphics CPUs, Athlon with Radeon Vega Graphics CPUs
Memory Support
2 x DDR4, Maximum Memory Capacity 64 GB, Max Memory Support 3600 mhz+(OC)
Storage
1 x M.2 Gen3 slot (PCIe 3.0 x4)
4 x SATA 6Gb/s ports
USB ports on Board
4 x USB 3.2 Gen 1 Type A
2 x USB 2.0/1.1 Type A
LAN
1 x RJ45 Port (Realtek GbE LAN chip)
Audio
3 x Audio Jacks (1 x Mic, 1 x Line In, 1 x Line Out)
Realtek Audio CODEC, 2/4/5.1/7.1-Channel

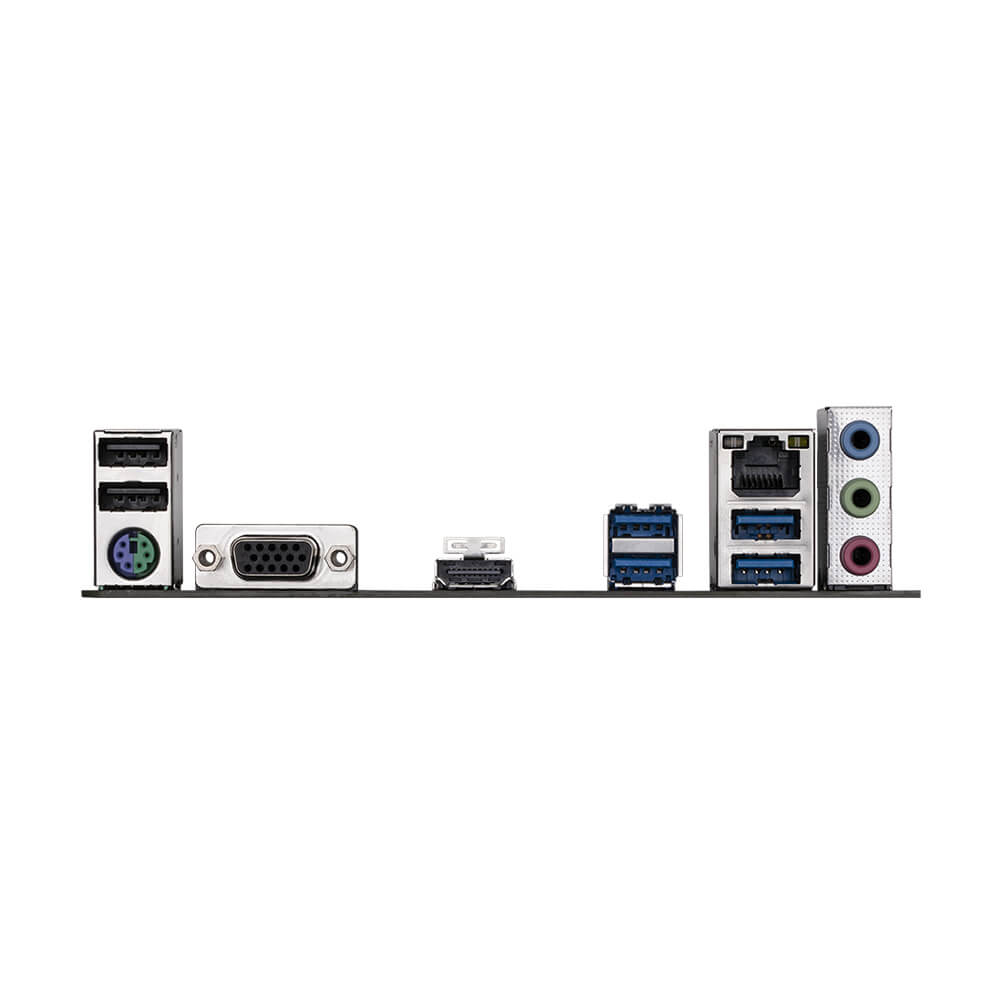

Back Panel Connectors
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI Port
1 x D-Sub port
1 x RJ-45 port
1 x Audio Mic Jack
1 x Audio Line In
1 x Audio Line Out
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Expansion Slot
1x PCIe 3.0×16 slot, 1x PCIe 2.0×1 slot
Built-in Bluetooth
No
Built-in Wifi
No
Lighting
No
OS Support
Windows 11 64-bit
Windows 10 64-bit
Windows 7 64-bit
