CoolerMaster MasterBox MB520 RGB Mid Tower Gaming Cabinet
Original price was: ₹10,539.₹6,619Current price is: ₹6,619.
(incl. all taxes)
- Mid Tower Gaming Cabinet
- Tempered Glass Side Panel
- Up to ATX Motherboard Compatibility
- ATX PSU Supports | GFX Cable Routing
- 4 x 120 mm Pre Install Fans (Front 3 RGB + Rear 1)
HIGHLIGHTS: CoolerMaster MasterBox MB520 RGB Mid Tower Cabinet
Cabinet Type – Mid Tower
Side Panel – Tempered Glass
Radiator Supports – Up to 360mm
Motherboard Compatibility – ATX, Micro ATX, Mini ITX
Pre Install Fans – 3 x 120mm RGB Fan (front) & 1 x 120mm (Rear)
About CoolerMaster MasterBox MB520 RGB Mid Tower Cabinet
The CoolerMaster MasterBox MB520 is an RGB Mid Tower Cabinet for Gaming desktop PC. This Cooler Master has compatibility with up to ATX motherboard. Hence it can support ATX, Micro ATX, and Mini-ITX motherboards. It supports a GPU length with length of up to 410mm GPU.
FEATURES:

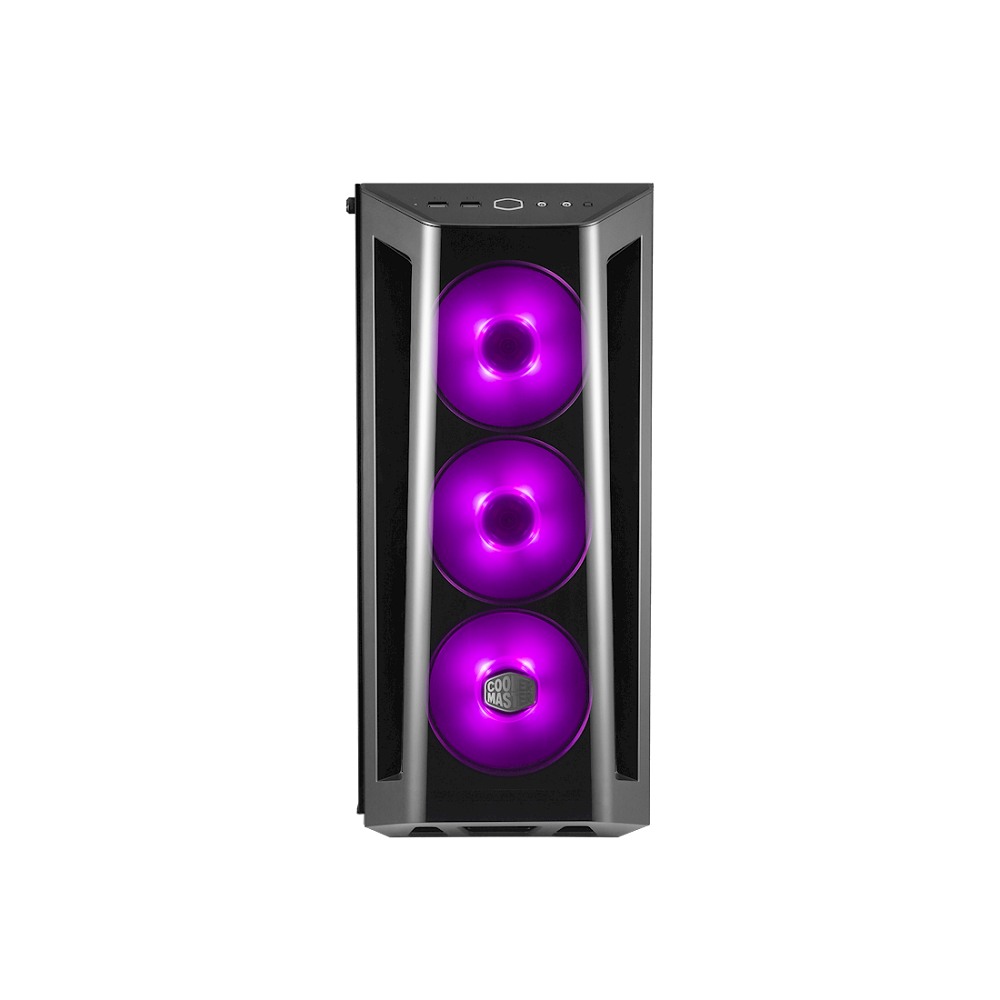

Dark Mirror Front Panel – MB520 Gaming Cabinet has a light-tinted yet transparent front panel.
Performance Intake – Each side of the front panel allows larger air intakes. Thus, it helps in optimum airflow.
RGB-Led Fans And Lighting Control – This Mid Tower Gaming Cabinet has pre-installed 3 x 120mm RGB LED fans in the front. These RGB fans offer striking visual effects. Also, if your motherboard does not support the RGB Control, connect the RESET button. In this way, you can control the RGB lighting from the I/O directly.
Excellent Thermal Performance – Every side of the front panel allows large air intakes for optimum airflow. Moreover, the extra ventilation on the panel offers extra thermal support.
Fan And Radiator Support
Front: MB520 RGB CPU Cabinet has 3 x 120mm or 2 x 140mm fans and up to a 360mm radiator. Without fans, this has a maximum thickness of 50mm.
Top: 2 x 120mm fans or 2 x 140mm fans and support a 1 x 120mm or 240mm radiator.
Rear: 1 x 120mm fan or radiator. All these things ensure you don’t have to compromise with the performance.
Edge-To-Edge Tempered Glass Side Panel – This gaming cabinet is designed with a 4mm thick tempered glass panel. This side panel allows you to showcase your system building and lightning effects. The side panel turns at an angle during the removal, Also, to make the panel stay in place, two screws are held with rubber.
GFX Cable Routing – In this cabinet, the graphics card cable is conveniently placed through the power supply.
Expanding The Possibilities – MasterBox MB520 is a mid-tower cabinet in which up to ATX motherboard can be fitted easily. Thus, no matter which motherboard you are using, its spacious interior will fit the motherboard for your gaming need.
Main Components Clearance – The MB520 RGB case supports CPU Coolers with a maximum height of up to 165mm, and a length of 410mm. Also, it supports power supplies that have a length of up to 180mm.
TECHNICAL SPECIFICATIONS
| General Information | |
| Model | MCB-B520-KGNN-RGB |
| Materials | Steel, Tempered Glass, Plastic |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| Power Supply Support | Bottom Mount, ATX |
| I/O Panel | 2 x USB 3.0, Audio In & Out (Supports HD Audio) |
| Expansion & Drive Bays | |
| Expansion Slots | 7 |
| 2.5-Inch/ 3.5-Inch Drive Bays (Combo) | 2 |
| 2.5-Inch Drive Bays | 4 (Max.6) |
| Pre-installed Fans | |
| Front | 3x 120mm RGB Fan |
| Rear | 1x 120mm (Black) |
| Fan Support | |
| Front | 3x 120mm, 2x 140mm |
| Top | 2x 120mm, 2x 140mm |
| Rear | 1x 120mm |
| Radiator Support | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top | 120mm, 240mm |
| Rear | 120mm |
| Clearance | |
| CPU Cooler | 165mm/6.49-Inch |
| GFX | 410mm/16.1-Inch |
| PSU | 180mm/7.1-Inch |
| Others Features | |
| Cable Routing – Behind Motherboard Tray | 19-27mm / 0.74-1.06-Inch |
| Dust Filters | Front, Bottom, Top |
| RGB Control | RGB controller included, 1 to 3 RGB splitter cable included |
| Dimensions & Weight | |
| Dimensions (L x W x H) | 496 x 218 x 468 (mm) |
| Weight | 6 kg 590 g (Approx) |
What is the Fan Count of the MasterBox MB520 Gaming Cabinet?
Front: 3 x 120mm fans or 2 x 140mm fans
Top: 2 x 120mm fans or 2 x 140mm fans
Rear: 1 x 120mm fan.
Is CoolerMaster MasterBox MB520 good for gaming setup?
CoolerMaster MasterBox MB520 is a mid-tower gaming cabinet with 4 x 120 mm Pre Install Fans (Front 3 RGB + Rear 1). Additionally, this cabinet has 2 fans on the top for extra cooling efficiency. Altogether, these fans and large air intakes offer optimum cooling. Overall, its spacious interior design, optimum cooling, and side tempered glass make this MB520 desktop cabinet perfect for a gaming setup.
