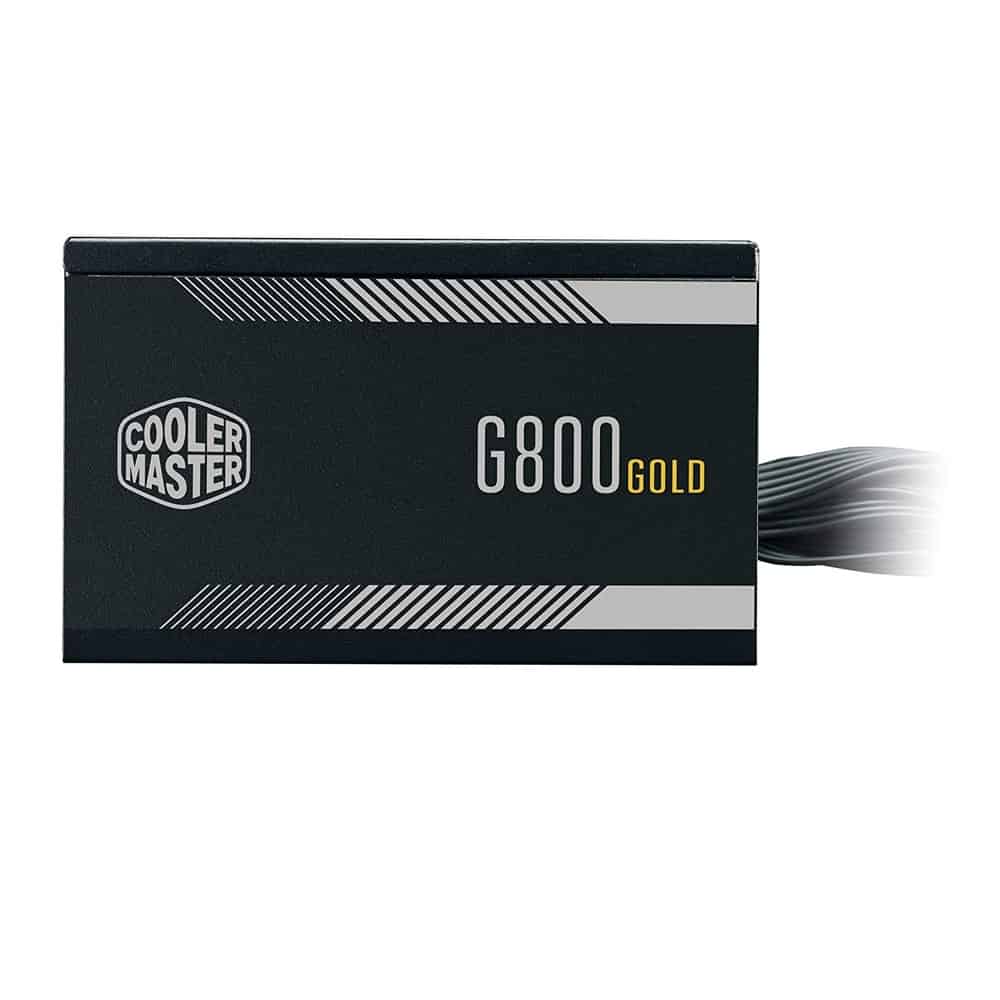

Cooler Master G800 Gold Non-Modular SMPS | 80 Plus Gold Certified | 800 Watt Power Output
Original price was: ₹11,999.₹7,040Current price is: ₹7,040.
(incl. all taxes)
- 800W Power Output Capacity
- 80 Plus Gold Certified
- Non-Modular SMPS
- 6 SATA Connector
- 4 PCI-E Connector

HIGHLIGHTS: Cooler Master G800 Gold Non-Modular SMPS
Power Output – 800 Watt
SMPS Certification – 80 Plus Gold edition
SMPS PCIe Connector – 4
SMPS SATA Connector – 6
Modular Type – Non-Modular
ABOUT Cooler Master G800 Gold Non-Modular SMPS
Cooler Master G800 Gold Non-Modular SMPS is a great PSU for the best quality-looking, enthusiasts. This PSU has 80 Plus Gold certification and 800-watt output power. On top of this SMPS is a 120mm cooling fan with a hydrodynamic fan bearing that helps you get less heat and less noise. It also has a modular design, which means you only use the cables you need. The wires are long enough to reach anywhere in your case.
FEATURES:
More Power For Less
The G Gold series marries high-performance standards with entry-level pricing, offering essential features and high efficiency. Every aspect of these models is specifically engineered and balanced to hit the lowest possible price point without sacrificing critical features that impact long-term reliability and continued performance.
Efficiency is Non-negotiable
80-plus gold segment PSU units are priced higher due to the nature of marketing. This series offers 80 plus gold skills at a manageable price. It is already a legal requirement in many parts of the world. The G Gold Series is designed to make this transition as easy as possible for system builders of any budget.
Modern Standards for Modern Systems
The G Gold series is affordable but by no means falls short of meeting the Intel ATX 2.52 standard requirements. It is currently one of the budget power supplies on the market that meets this standard.
Keep calm, Stay Quit

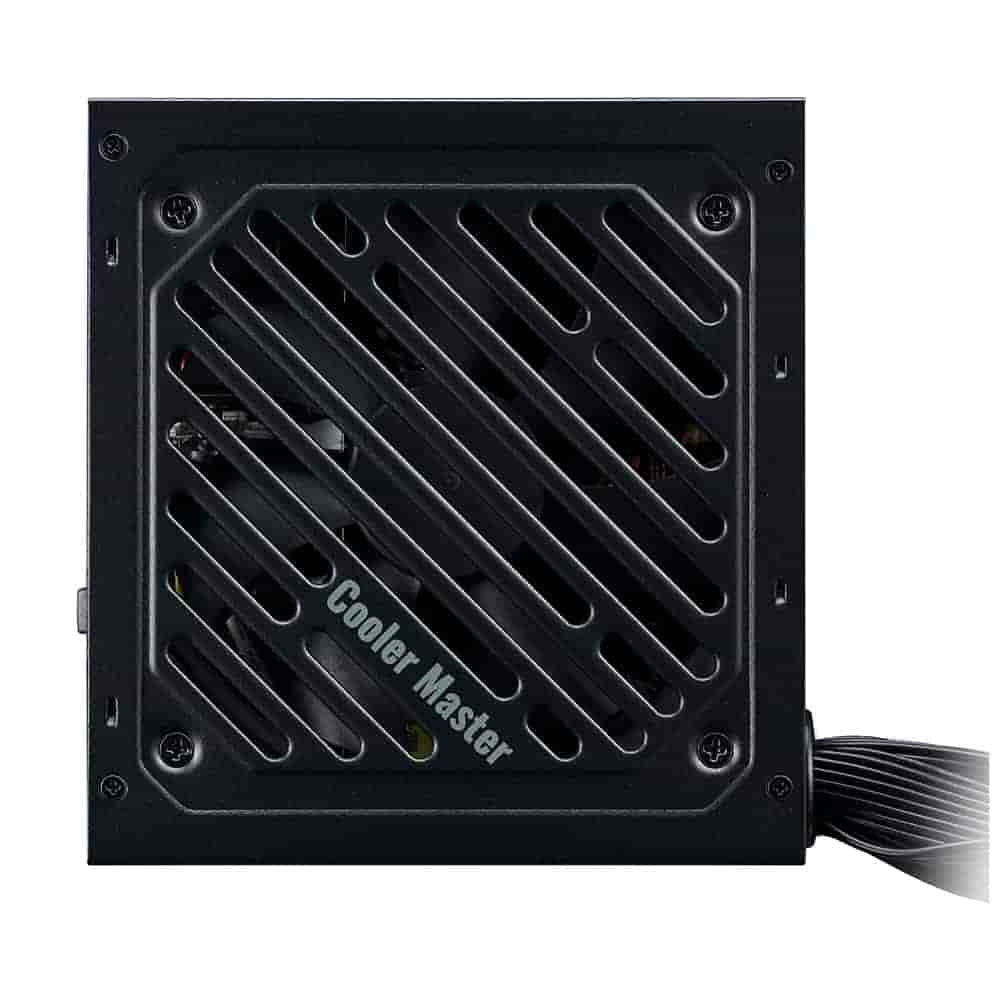

Hydrodynamic fan bearings provide an effective cooling solution that is both quiet and reliable. The 120mm fan size provides a reliable level of cooling with acceptable noise levels and maintains temperatures within safety guidelines without breaking the bank.
Warm But Not Hot
With an operating temperature of 40 Degrees C, most system operations can be handled safely and reliably in most settings.
5 Year Warranty
The G800 Gold is a safe, dependable power supply unit that will power your system for years. With a 5-year warranty, you can rest guaranteed that your PSU was created to last. With proper care and normal use, this unit can power a system for many years without any problems.
TECHNICAL SPECIFICATIONS
MODEL | MPW-8001-ACAAG-IN |
SERIES | G Series |
WATTAGE | 800W |
MODULAR | Non-Modular |
80 PLUS RATING | 80 Plus Gold |
PFC | Active PFC |
INPUT VOLTAGE | 100-240V |
INPUT CURRENT | 12-6A |
INPUT FREQUENCY | 47-63Hz |
FAN SIZE | 120mm |
FAN BEARING | HDB |
EFFICIENCY | ≥90% @ Typical Load |
ATX VERSION | ATX 12V V2.52 |
ERP 2014 LOT 3 | Yes |
OPERATING TEMPERATURE | 0-40°C |
POWER GOOD SIGNAL | 100 – 150 ms |
HOLD UPTIME | ≥15ms at 100% load |
MTBF | >100,000 Hours |
ATX 24-PIN CONNECTORS | 1 |
EPS 4+4 PIN CONNECTORS | 1 |
EPS 8 PIN CONNECTOR | 1 |
SATA CONNECTORS | 6 |
PERIPHERAL 4-PIN CONNECTORS | 3 |
PCI-E 6+2 PIN CONNECTORS | 4 |
PROTECTIONS | OVP, UVP, OPP, OTP, SCP, OCP |
REGULATORY | CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC |
DIMENSIONS (L x W x H) | 140 x 150 x 86 mm |
Specification: Cooler Master G800 Gold Non-Modular SMPS | 80 Plus Gold Certified | 800 Watt Power Output
|
