TECHNICAL SPECIFICATIONS: ASUS TUF Gaming B650-Plus ATX Motherboard
Model
TUF Gaming B650-Plus
Chipset
AMD B650
CPU Socket
AM5
CPU Support
AMD Ryzen 9000 Series/8000 Series/8000-G Series/7000 Series
Memory Support
4 x DDR5, Maximum Memory Capacity 128GB, Max Memory Support 7600 + OC MHz
Storage
1 x M.2 PCIe 5.0 x 4 slot
2 x M.2 PCIe 4.0 x 4 slot
4 x SATA 6Gb/s ports
USB Ports On Board
1 x USB 3.2 Gen 2×2 Type-C
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen2 Type-A
4 x USB 2.0 Type-A
LAN
1 x Realtek 2.5Gb Ethernet TUF LAN Guard
Audio
Realtek 7.1 HD Audio Codec

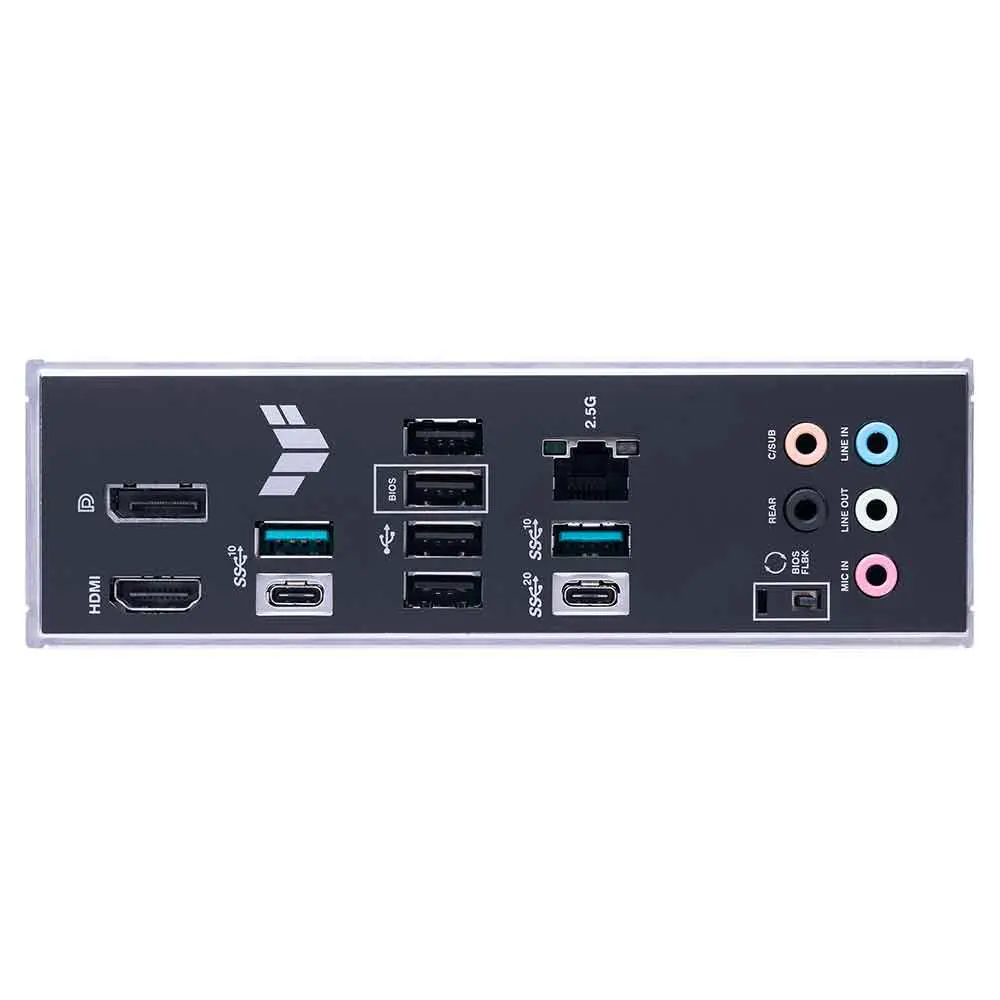

Back Panel Connectors
1 x DisplayPort
1 x HDMI Port
1 x USB 3.2 Gen 2×2 Type-C
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen2 Type-A
4 x USB 2.0 Type-A
1 x RJ-45 LAN Port
1 x BIOS FlashBack Button
1 x Mic In
1 x Audio Line In
1 x Audio Line Out
1 x Rear Audio port
1 x C/SUB Port
Internal I/O Connector
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB 4) header
Expansion Slot
2 x PCIe 4.0 x 16 slot
Built-in Bluetooth
NA
Built-in Wifi
NA
Lighting
NA
OS Support
Windows 11 64-bit
Windows 10 64-bit
Specification: ASUS TUF Gaming B650-Plus ATX Motherboard
Product Type
Motherboards
Brand
Asus
CPU Platform
AMD
CPU Socket
AM5
Processor Generation
Ryzen 7000, Ryzen 8000, Ryzen 8000G, Ryzen 9000
Processor Series
Ryzen 5, Ryzen 7, Ryzen 9
FORM FACTOR
ATX
MEMORY TYPE
DDR5
Motherboard Chipset
AMD B650
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
₹24,000Original price was: ₹24,000.₹21,400Current price is: ₹21,400.
