Supports 14th, 13th & 12th Gen Intel Core Processors
Memory Support
2 x DDR4, Maximum Memory Capacity 64GB, Max Memory Support 3200 MHz
Storage
4 x SATA3 6.0Gb/s connectors
1 x Ultra M.2 Socket PCIe Gen3x4 (32 Gb/s)
USB ports on Board
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
LAN
PCIE x1 Gigabit LAN
Audio
7.1-channel High Definition Audio (Realtek ALC897 Audio Codec)

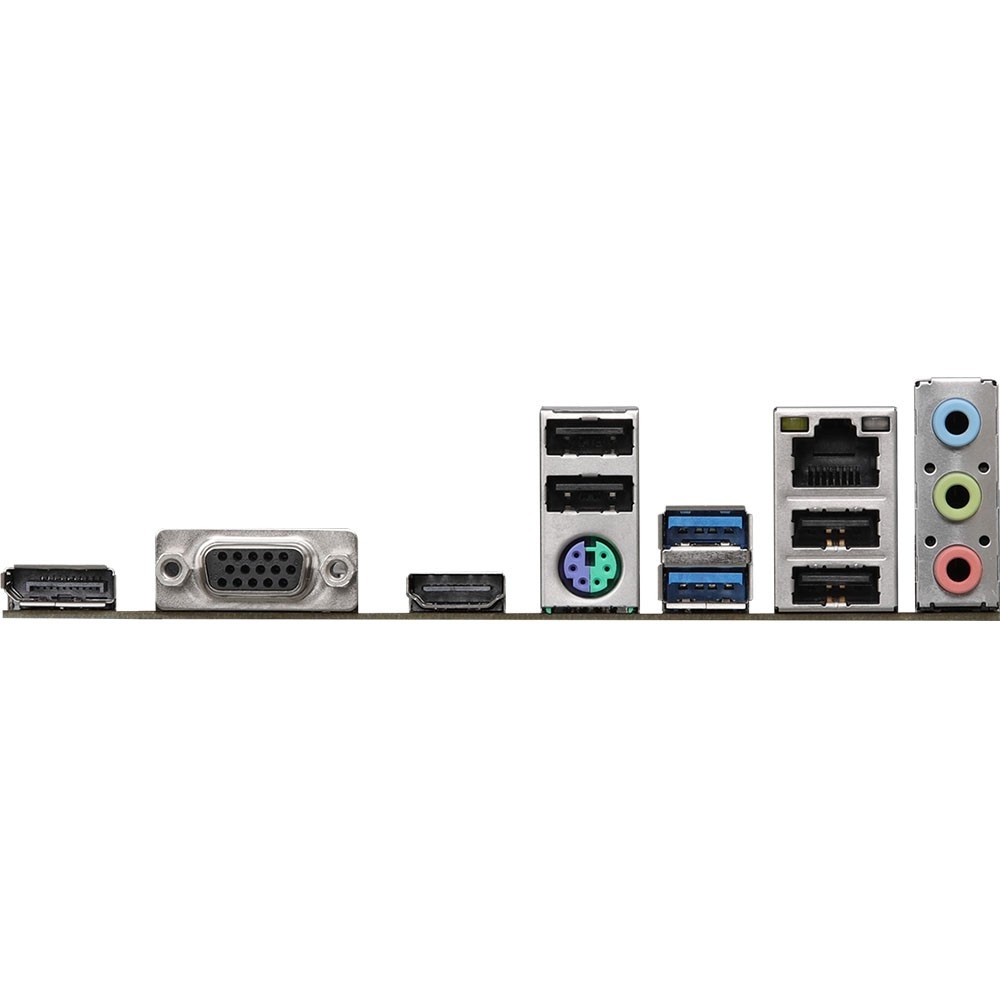

Back Panel Connectors
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Line In
1 x Front Speaker
1 x Microphone
Internal I/O Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
