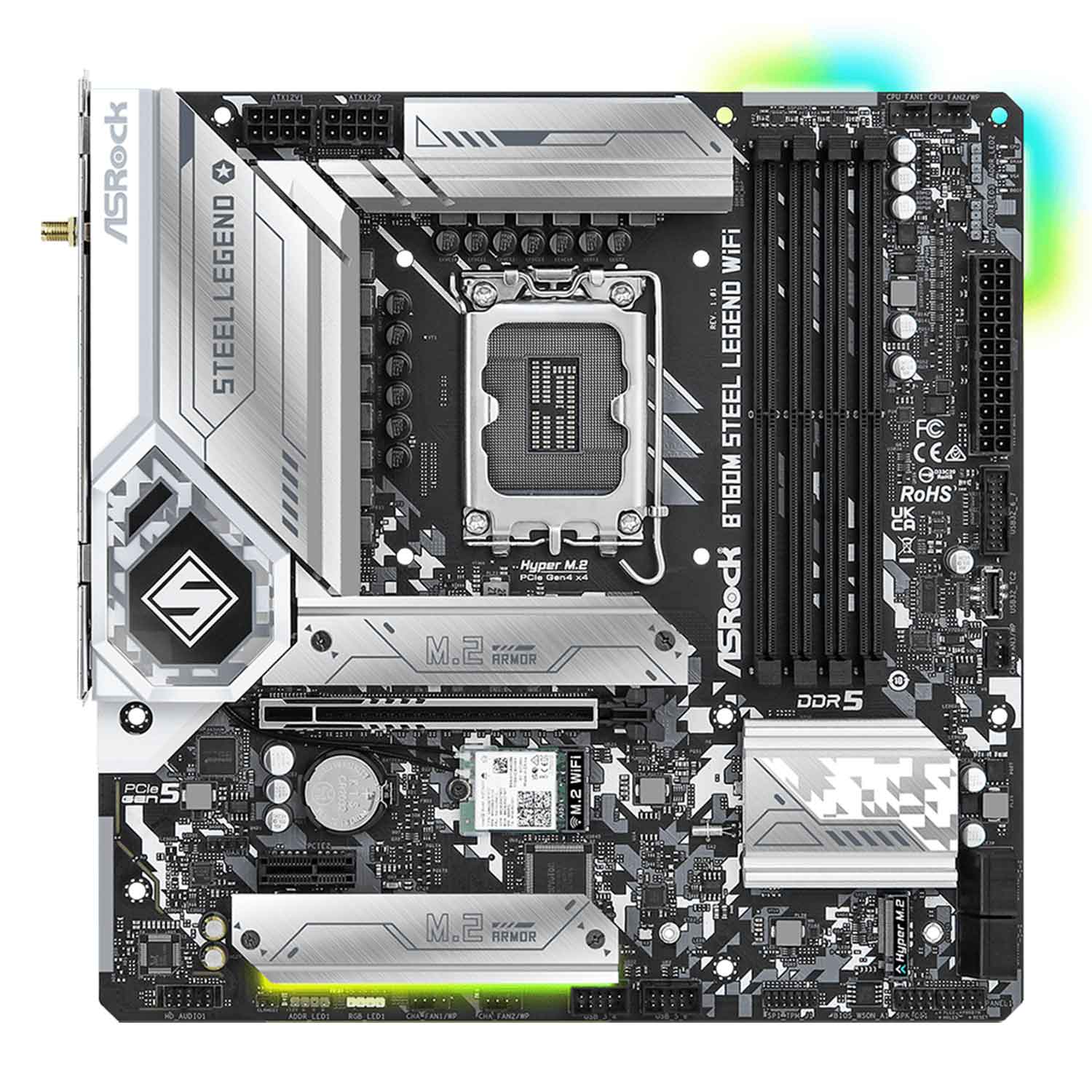

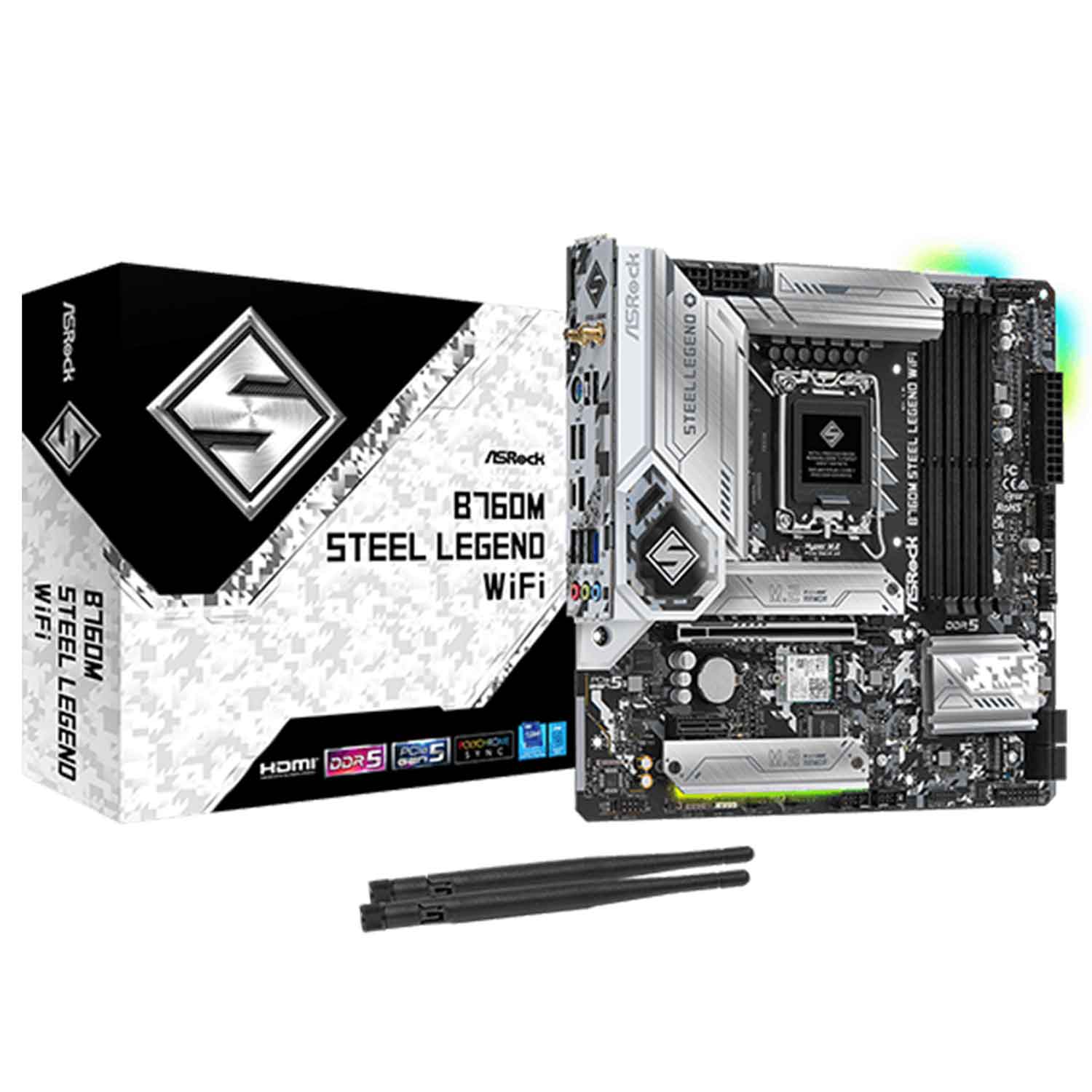

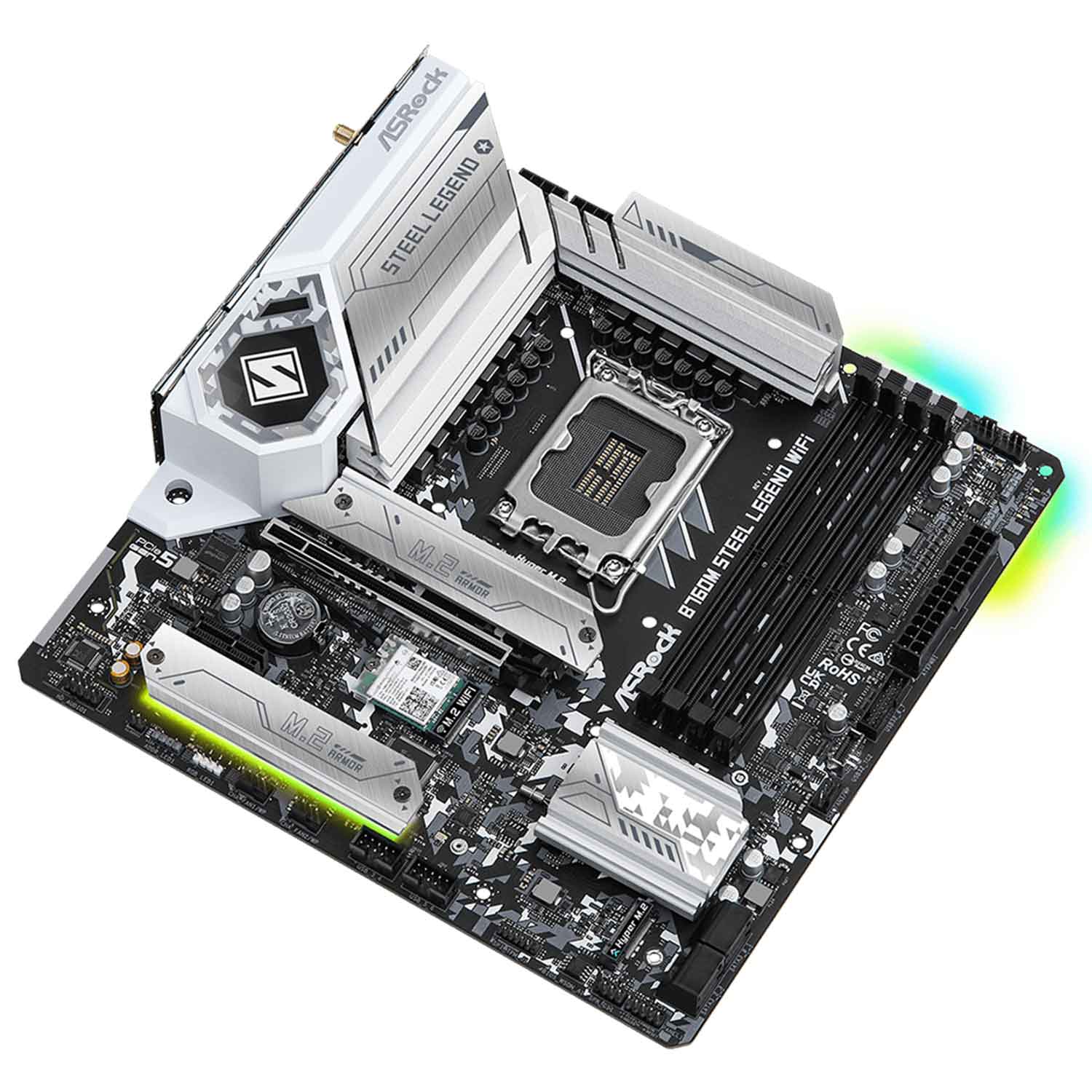

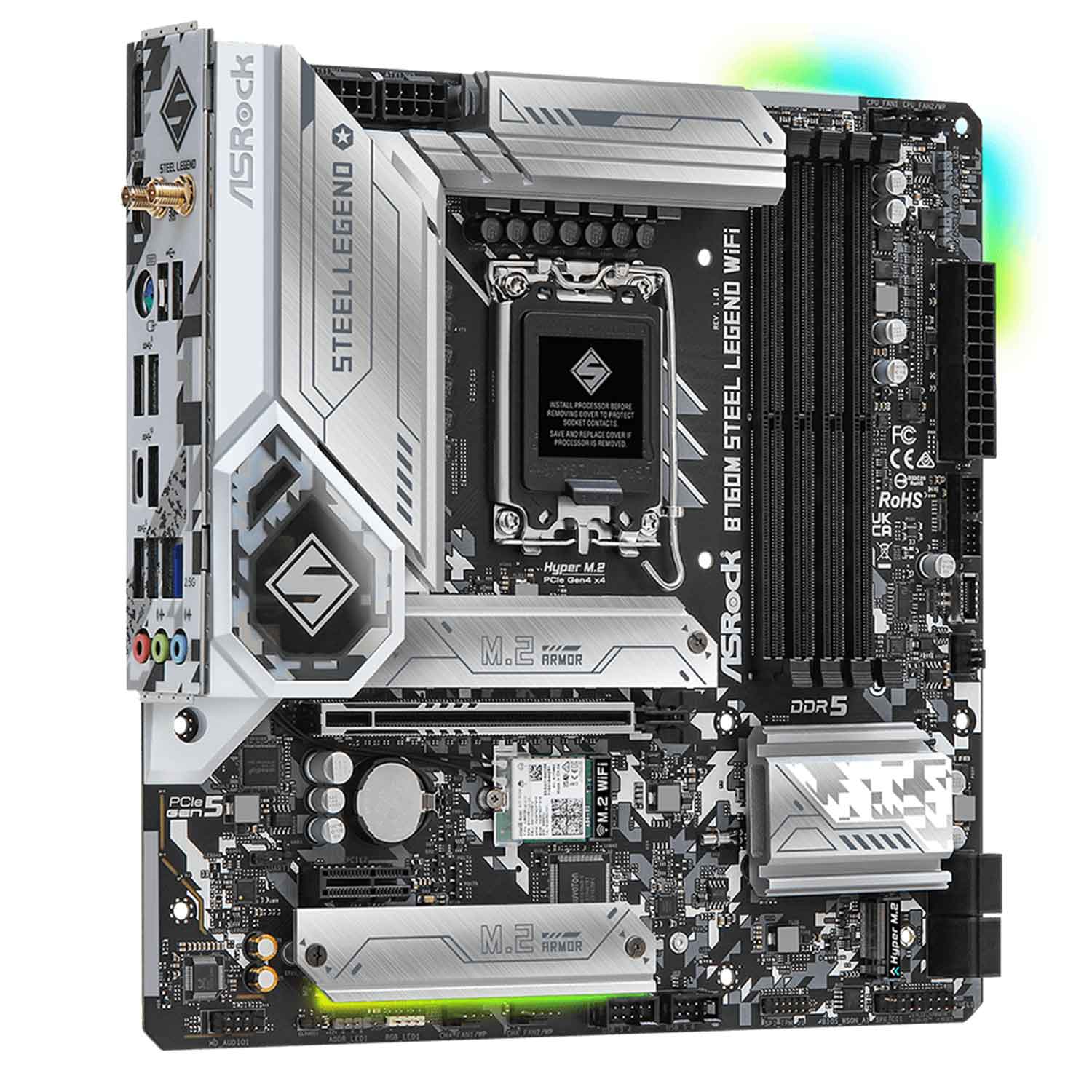

ASRock B760M Steel Legend WiFi DDR5 Micro ATX Motherboard

About ASRock B760M Steel Legend WiFi Micro ATX Motherboard

The ASRock B760 Pro RS WiFi is a DDR5 Micro ATX Motherboard. It is an Intel motherboard that supports 4xDDR5 RAM and a maximum of 192GB memory. It is compatible with Intel LGA1700 CPU Socket and supports Intel B760 Chipset. This PC motherboard is designed with 802.11ax (WiFi 6E) + Bluetooth 5.3 for smooth wireless connectivity. With the Dragon 2.5G LAN Software, it ensures maximum wireless connections. This motherboard also has HDMI, DisplayPort, and eDP for the best graphical output.

Moreover, this motherboard has a lot of interesting specifications. It has the most perfect and balanced evolution of the Pro series PC motherboards. All in all, this motherboard offers impressive performance and a reliable computing experience without expensive upgrades.

FEATURES:

Dr. MOS – For maximum synchronous buck-set down voltage application, Dr.MOS is integrated into this M-ATX motherboard as a power stage solution. Compared to traditional discrete MOSFETs, the Dr, MOS intelligently provides continuous currents for each stage. Hence it easily improves thermal results and excellent performance.

12+1+1 Power Phase Design – It offers enhanced performance through its hard components and smooth power supply to the processor.

6 Layer PCB – It comes with 3 sets of copper inner layers, to provide a stable signal and maintain a lower temperature. The 6-layer PCB also has higher energy for memory overclocking. Thus, it regardlessly supports DDR5 memory modules with the best performance.

2oz Copper PCB – The 2-ounce copper inner layers provide stable signal paths and power shapes. It has a lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support – It is made with the design of a “built for stable and reliable” concept. With this motherboard, users will be able to enjoy DDR5 memory along with overclocking performance. Just make sure the memory modules are capable with Intel XMP/AMD EXPO and support overclocking.

DDR5 Memory with Protection Circuit – The B760M has some unique architecture of DDR5 DIMM. So it has a high risk of damage if the AC power supply didn’t disconnect properly during removal or installation. To prevent damage, ASRock has implemented a protection circuit on each DDR5 motherboard. It lowers the risk of damaging the memory modules.

PCIe 5.0 + Surface-Mount Tech – The SMT-type PCIe slot has improved signal flow with maximum stability under high speed compared to the DIP-style PCIe slot. This Intel micro ATX motherboard supports the new PCIe 5.0 standard.

Reinforced Steel Slot (PCIe 5.0 Version) – The reinforced steel slot supports PCI Express 5.0 standard.

Nahimic Audio

• Audio That Matters – Enjoy the most engaging listening experience with vibrant and rich details with Nahimic Audio.
• Enhance Communication Quality – It ensures the best noise-free conversation. It provides a constant vocal level no matter the distance of your mic. The audio engine clears sound and removes interfering noises.
• Ultimate Gaming Experience

1. Sound Tracker – The Sound Tracker is a visual indicator for pointing out the directions from where dominant sounds are coming. Each sound is properly positioned at a 360° angle on the radar for better engagement during the game.
2. Works on any device! – Whether you are listening through any interior, exterior speaker or headphones, and headset using WiFi, HDMI, or analog output Nahimic Audio will offer you the best. It is compatible with various audio tools to offer you the best experience.

POLYCHROME RGB – ASRock B760M motherboards produce astonishing performance and a premium look. With it, you can control RGB LEDs, CPU fans, coolers, chassis, and any RGB devices easily. You can also synchronize RGB LED devices covering the Polychrome RGB Sync-certified accessories.

High-Speed M.2 Solution(PCIe Gen4 x4) – This DDR5 micro ATX motherboard supports PCI Express 4.0 M.2 SSDs. It has 2x extra speed than 3rd gen PCIe.

Dragon 2.5 Gb/s LAN – The 2.5Gb/s LAN provides maximum performance during demanding networking. Whether it’s home networking, creating, streaming, or online gaming it will be the best. Also, enhance performance up to 2.5x bandwidth compared to standard Ethernet.

Wi-Fi 6E 802.11ax – Along with the onboard LAN port, you can also choose 802.11ac wireless connections by M.2 (Key E) slot.

Dual USB 3.2 Gen1 (Type-A + Type-C) – The onboard pair Type A And Type C USB 3.2 Gen1 ports support the next Gen USB 3.2 Gen2 devices. Also, it provides up to 5Gbps data transmission rate.

Front USB 3.2 Gen2 Type-C – On the front panel of the computer case, a USB 3.2 Gen2 Type-C header provides a data transfer rate of up to 10 Gbps.

Auto Driver Installer – An optical drive or DVD driver is not needed. This PC motherboard has an Ethernet driver pre-packaged in BIOS ROM. Once, complete the installation of the operating system, follow the instructions. Also, allow ADI to download and install all the drivers automatically.

TECHNICAL SPECIFICATIONS: ASRock B760M Steel Legend WiFi Micro ATX Motherboard
