Supports 14th, 13th & 12th Gen Intel Core Processors
Memory Support
2 x DDR5, Maximum Memory Capacity 128GB, Max Memory Support 7200+ OC MHz
Storage
4 x SATA3 6.0Gb/s connectors
1 x Ultra M.2 Socket PCIe Gen3x4 (32 Gb/s)
1 x Hyper M.2 Socket PCIe Gen4x4 (64 Gb/s)
USB ports on Board
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Type-A Ports
LAN
2.5 Gigabit LAN Port
Audio
7.1-channel High Definition Audio (Realtek ALC897 Audio Codec)

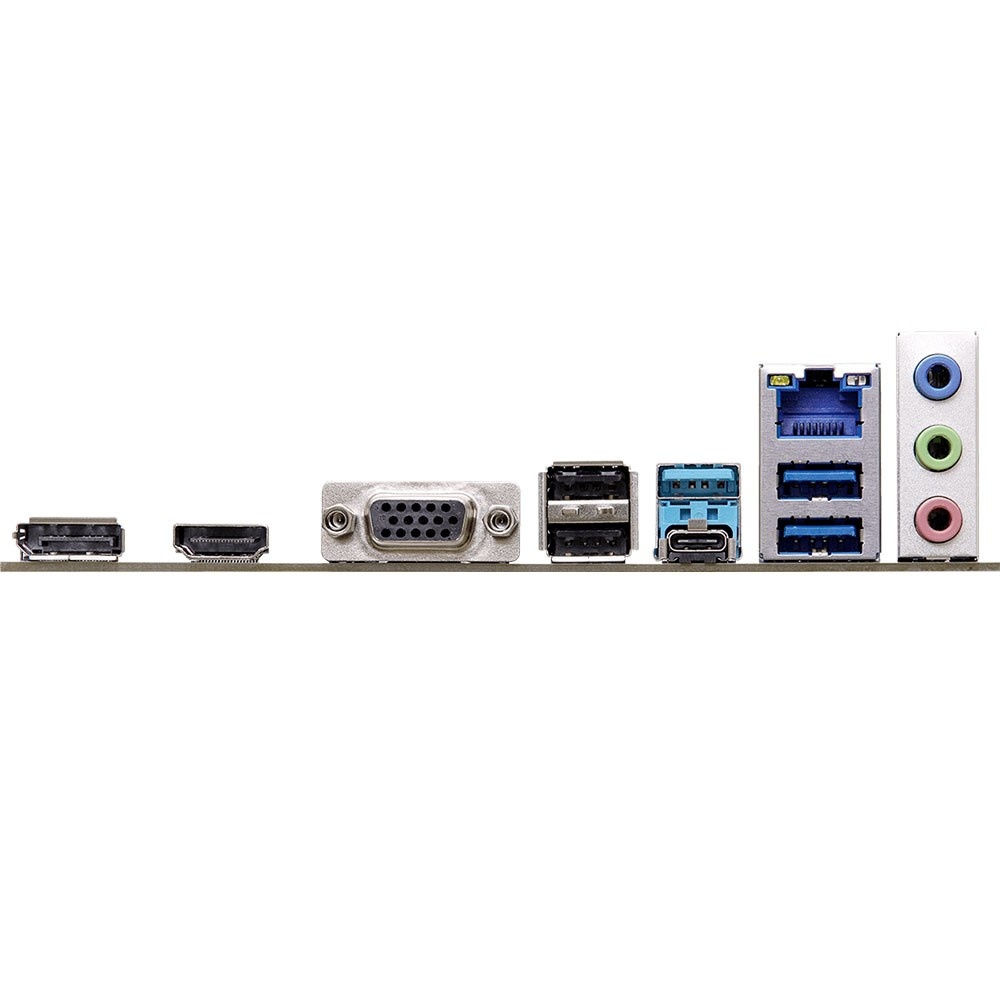

Back Panel Connectors
1 x HDMI Port
1 x D-Sub port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Type-A Ports
1 x RJ-45 LAN Port
1 x Line In
1 x Front Speaker
1 x Microphone
Expansion Slot
1 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slot
1 x M.2 Socket (supports type 2230 WiFi/BT)
