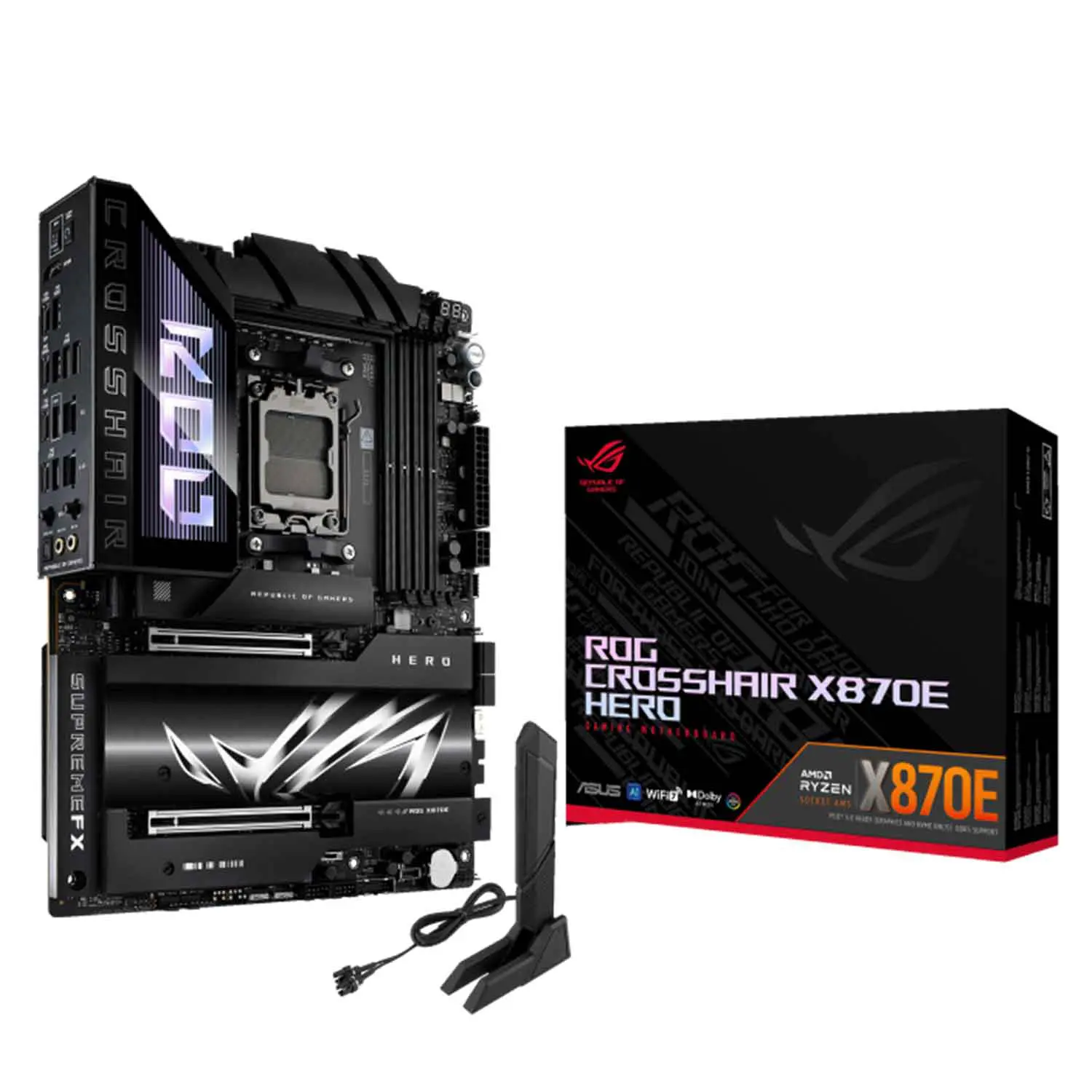

TECHNICAL SPECIFICATIONS: ASUS ROG Crosshair X870E Hero ATX Motherboard
Model
ROG Crosshair X870E Hero
Chipset
AMD X870E
CPU Socket
AM5
CPU Support
AMD Ryzen 9000 Series/8000 Series/8000-G Series/7000 Series
Memory Support
4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 8600 + OC MHz
Storage
3 x M.2 PCIe 5.0 x 4 slot
2 x M.2 PCIe 4.0 x 4 slot
4 x SATA 6Gb/s ports
USB Ports On Board
2 x USB4 40Gbps Type-C
2 x USB 10Gbps Type-C
6 x USB 10Gbps Type-A
LAN
1 x Realtak 5Gb Ethernet ASUS LANGuard
1 x Intel 2.5Gb Ethernet
Audio
ROG SupremeFX 7.1 HD Audio CODEC ALC4082
Back Panel Connectors
1 x HDMI Port
2 x USB4 40Gbps Type-C
2 x USB 10Gbps Type-C
6 x USB 10Gbps Type-A
2 x WiFi & Bluetooth Module
2 x RJ-45 LAN Port
1 x BIOS FlashBack Button
1 x Opticla S/PDIF Out Port
1 x Clear CMOS Button
1 x Mic In
1 x Audio Line Out
Internal I/O Connector
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
5 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Expansion Slot
2 x PCIe 5.0 x 16 slot
Built-in Bluetooth
v5.4
Built-in WiFi
WiFi 7
Lighting
RGB
OS Support
Windows 11
Specification: ASUS ROG Crosshair X870E Hero ATX Motherboard
Product Type
Motherboards
Brand
Asus
CPU Platform
AMD
CPU Socket
AM5
Processor Generation
Ryzen 7000, Ryzen 8000, Ryzen 8000G, Ryzen 9000
Processor Series
Ryzen 5, Ryzen 7, Ryzen 9
FORM FACTOR
ATX
MEMORY TYPE
DDR5
Motherboard Chipset
AMD X870E
MAXIMUM MEMORY
192 GB
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
COUNTRY OF ORIGIN
CHINA
