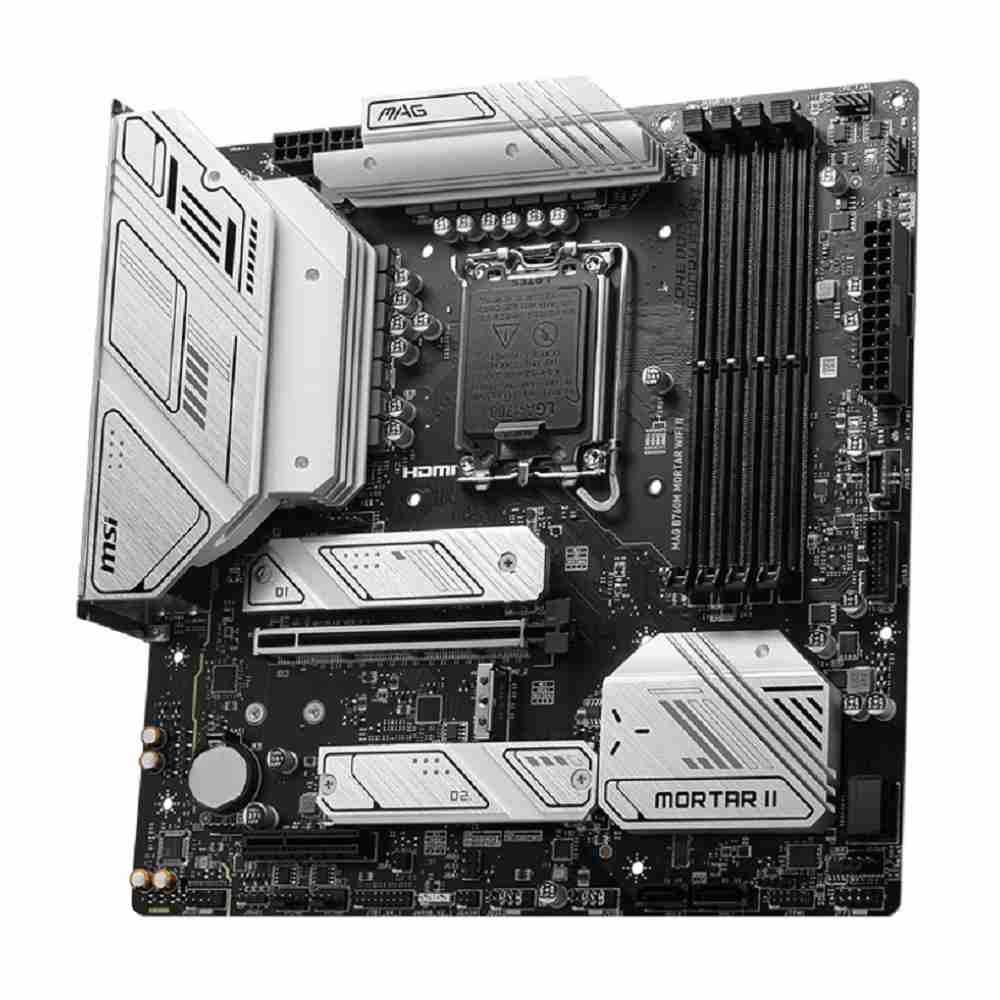

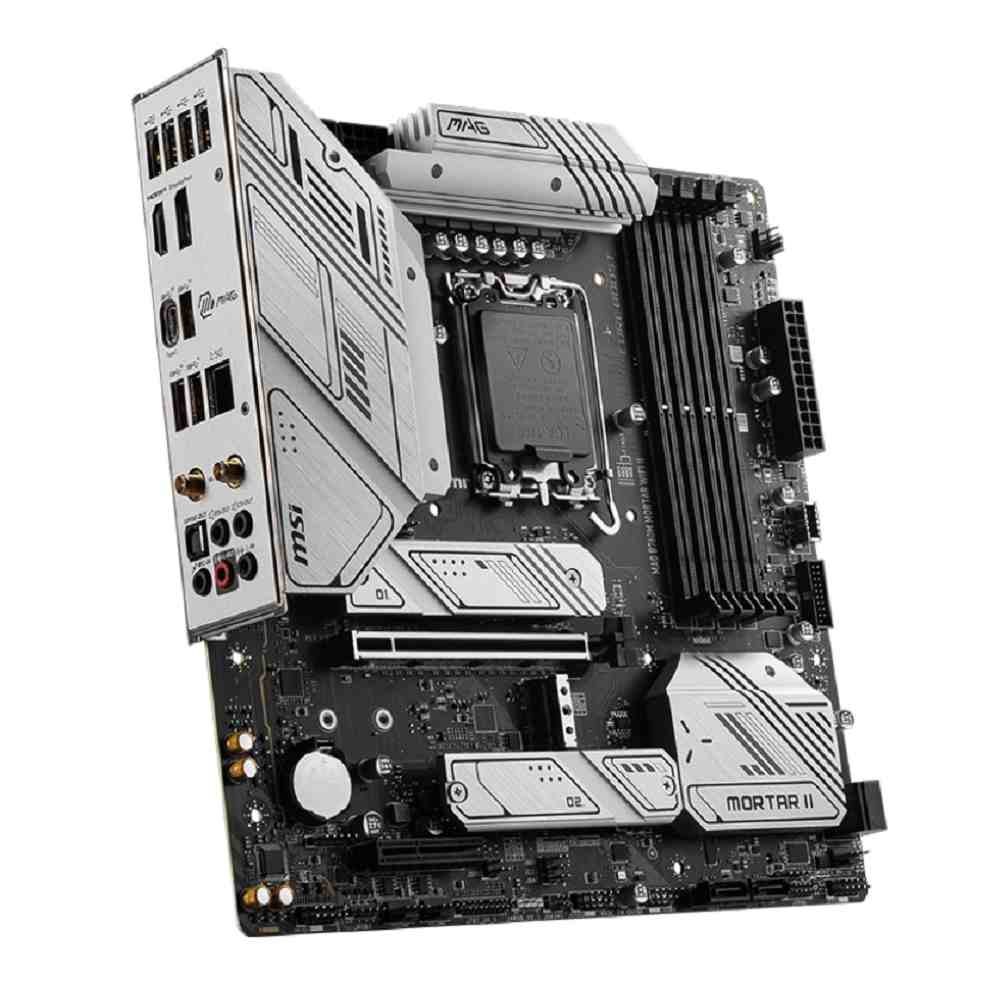

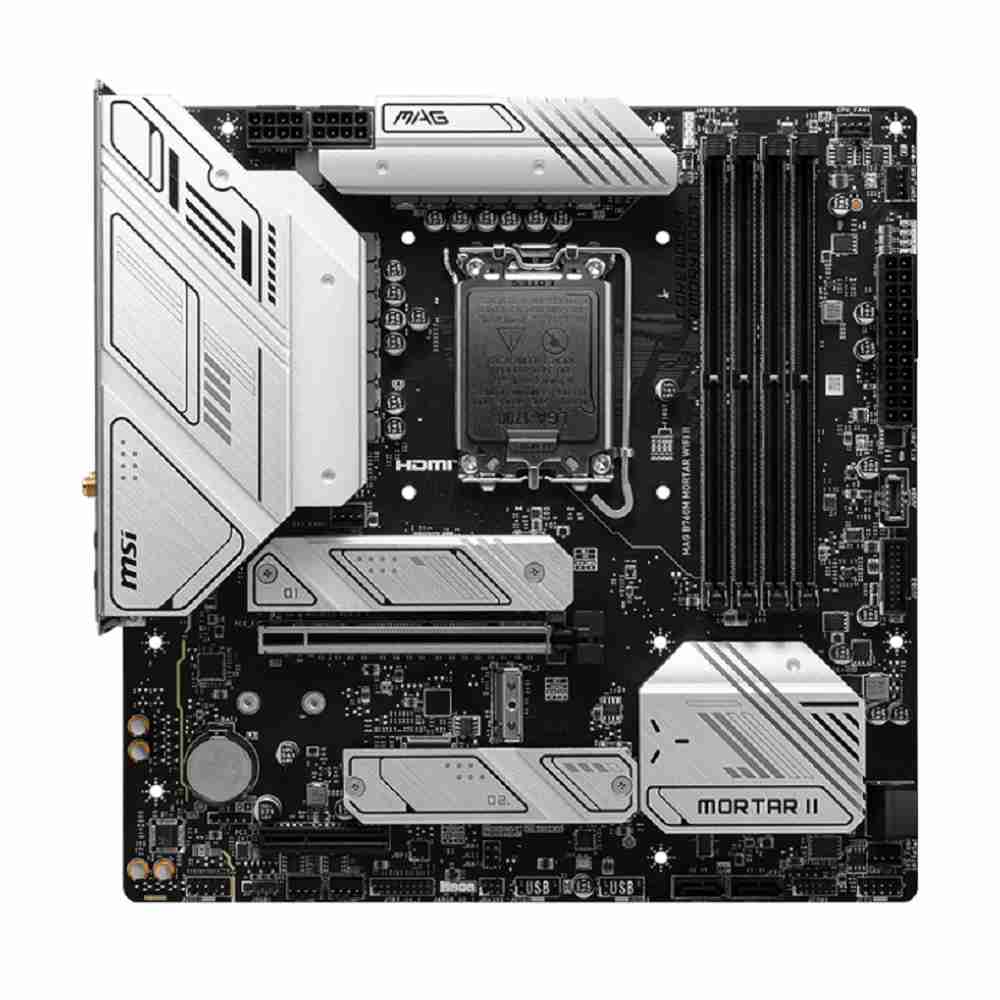

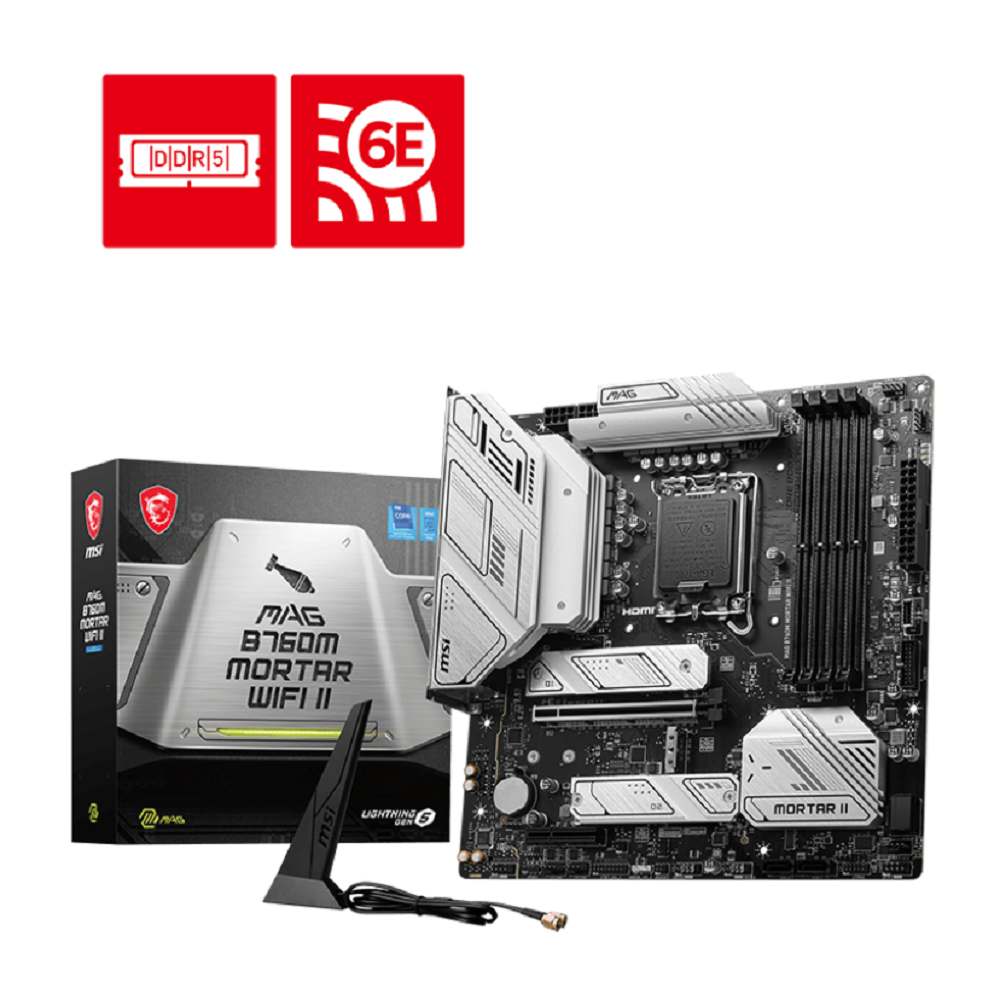

MSI MAG B760M Mortar WiFi II DDR5 Micro ATX Motherboard
Original price was: ₹33,999.₹21,999Current price is: ₹21,999.
(incl. all taxes)
- Micro ATX Form Factor
- LGA 1700 CPU Socket | INTEL B760 Chipset
- Built-in M.2 thermal solution
- 4 x DDR5 Memory Max 192GB Capacity
- 2.5G LAN & Wi-Fi 6E Network Solution
About MSI MAG B760M Mortar WiFi II DDR5 Motherboard
MSI MAG B760M Mortar WiFi II is a DDR5, Micro ATX PC Motherboard ideal for gamers, professionals, prosumers, and PC enthusiasts. This DDR5 motherboard features an LGA 1700 Socket and Intel B760 Chipset. MSI MAG B760M Mortar WiFi II motherboard supports 12th, 13th, and 14th Gen Intel desktop processors.
MSI MAG B760M Mortar WiFi II DDR5 Motherboard has 4 x DDR5 RAM with a capacity of up to 192GB. For a top-notch graphical output, it DDR5 motherboard features HDMI and DisplayPort. USB, and M.2 ports allow a lightning-fast data transmission rate. This micro-ATX Motherboard is one of the best gaming motherboards for desktop PCs that provides ultimate performance efficiency. Therefore, it features a 2.5G LAN & Wi-Fi 6E Network for upgraded network solutions for professional and multimedia use.
FEATURES:
- Intel LGA 1700 CPU Socket – MAG B760M Mortar WiFi II supports Intel Core 12th, 13th, and 14th Generation Intel Pentium Gold and Celeron Desktop Processors for LGA 1700 CPU Socket.
- DDR5 Memory/RAM – It supports 4 x DDR5 with up to 192GB Memory Capacity and up to 7800+ MHz (OC).
- Enhanced Power Design – Direct 12+1+1 phases power, Core Boost, and Memory Boost ensure, a stable power supply to the CPU, increase clock speed & improve performance.
- Lightning Fast Game experience – PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2 for a faster data transmission
- Premium Thermal Solution – Extended Heatsink Design & M.2 Shield Frozr delivers high system performance & non-stop working capabilities.
- AUDIO BOOST – 7.1-Channel High Definition Audio for studio-grade sound quality and immersive gaming
- High-Quality PCB – The high-quality 6-layer PCB made of 2oz thickened copper and other server-grade material is equipped for power integrity.
TECHNICAL SPECIFICATIONS: MSI MAG B760M Mortar WiFi II DDR5 Motherboard
| Model | MAG B760M MORTAR WIFI II |
| Chipset | INTEL B760 |
| CPU Socket | LGA1700 |
| CPU Support | Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Memory Support | 4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7800 mhz+(OC) |
| Storage | 3 x M.2 Gen4 x4 64Gbps slots 4 x SATA 6Gb/s ports |
| USB ports on Board | 1 x USB 3.2 Gen2x2 20Gps(Type-C) 1 x USB 3.2 Gen2 10Gps(Type-C) 3 x USB 3.2 Gen2 10Gps (Type-A) 2 x USB 3.2 Gen1 5 Gps (Type-A) 8 x USB 2.0 |
| LAN | Realtek 2.5Gbps LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |

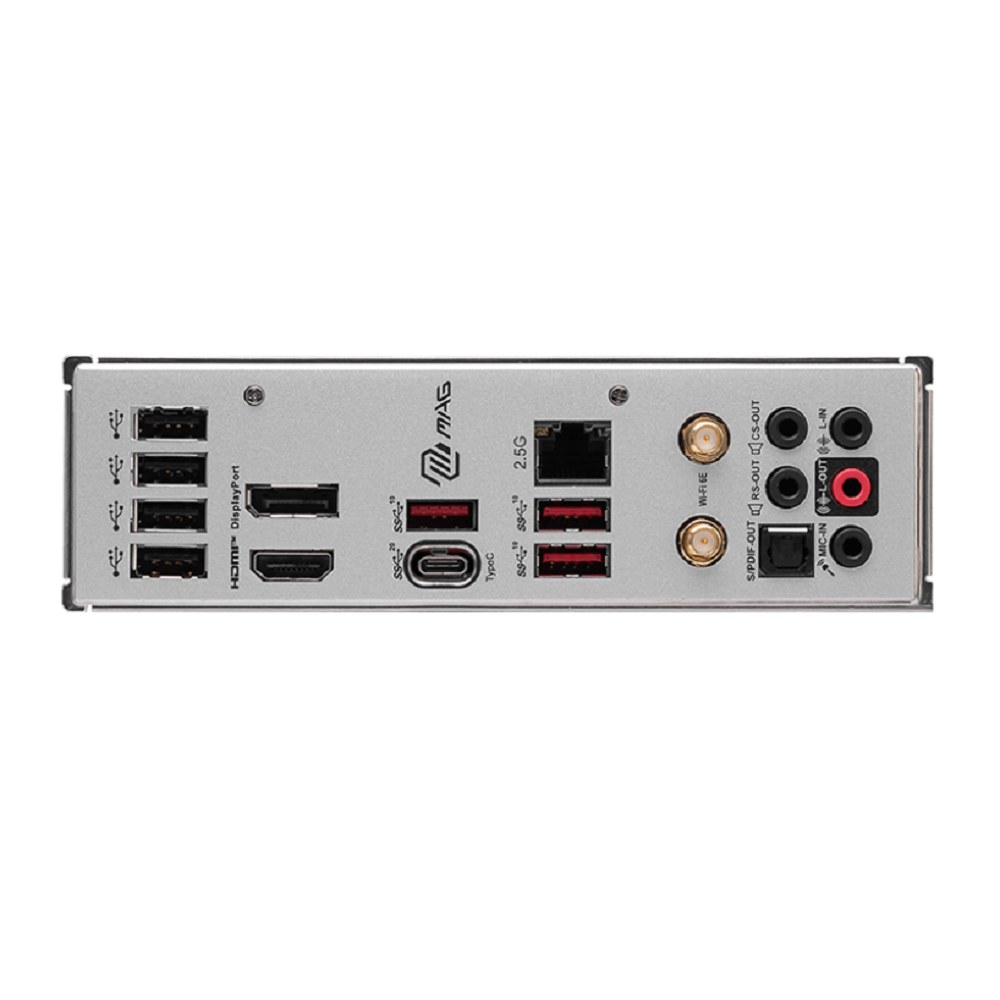

| Back Panel Connectors | 1 x DisplayPort 1.4 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 2 x Wi-Fi / Bluetooth 5 x HD Audio Connectors 4 x USB 2.0 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2×2 20Gbps Type-C |
| Expansion Slot | 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x4 slot |
| Built-in Bluetooth | NA |
| Built-in Wifi | Yes, Intel Wi-Fi 6E |
| Lighting | NA |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
